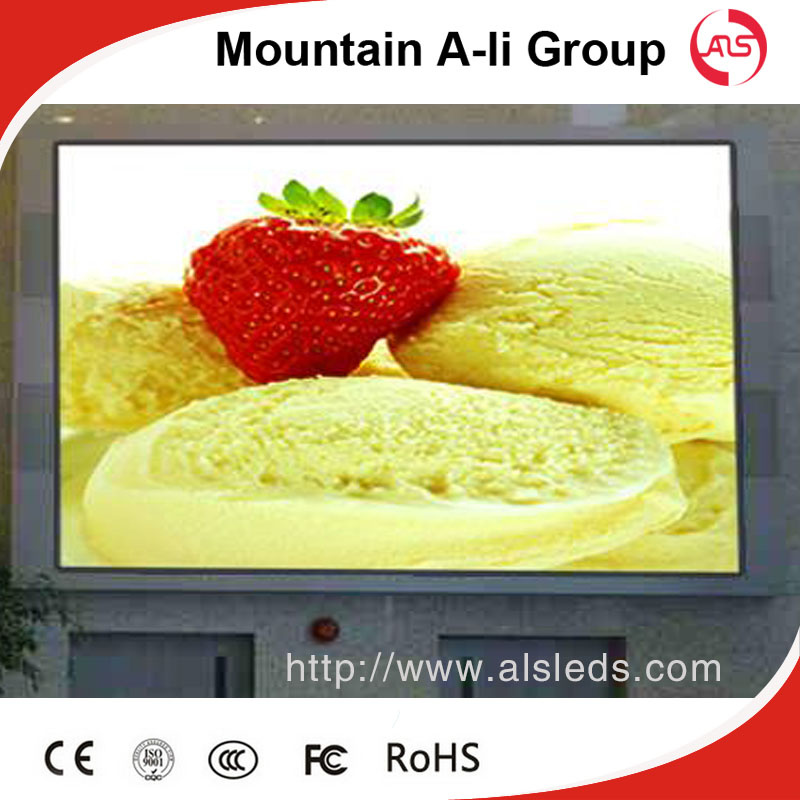

High Definition P6 Indoor Full Color LED Display



Unit module	Item	Parameter
	Model	P6 surface mounted module
	Module size	192mm*192mm
	Pixel pitch	6mm
	Pixel density	27777dots/m²
	Package configuration	1R1G1B
	Package mode	SMD3535 white LEDS
	Pixel resolution	32dots(W)*32dots(H)
	Max power consumption	35W
	Module thickness	2.7cm
	Weight	0.4kg
	Drive method	Constant current driving
	Scan mode	1/8scan
	Interface way	HUB75-B
	Brightness of white balance	>=6000cd/m²
Unit module	Cabinet size	768mm*768mm
	Cabinet composing	16pcs
	Power supply mode	5V/40A  5V/60A
	Cabinet resolution	128dots*128dots
	Optimal viewing distance	5M~50M
	Optimal viewing angel	160°(W)120°(H)
	Environment Temperature	Storage:-35ºC~+85ºC
		Work:-20ºC~+50ºC
	Relative humidity	10%-95%
Power	Operating voltage	AC220V±10%
	Average power consumption	≤350W/H
	Max power consumption	≤560W/m²
	Current	≤20Ma(sign LED)
Control system     Main technical parameter	Computer	Pentium4 or above P4 or above
	Operation system	WIN98/2000/NT/XP
	Control method	Synchronization with PC
	Driving device	IC Constant Current Driving
	Refresh frequency	≥600HZ
	Grey scale/colors	256 lever of each color (GRB)/ 16.7M colors
	MTBF	≥9000hours
	Power switch	Automatic switch
	Display mode	800*600/1024*768/1280*900

Products Features

1) With good lightening accordance and no mosaic

2) LED advertising board can play different formats of image files, flash, WAV/MIDI, video signal from TV, video signal from video and other equipment

3) Different video frequency can be changed freely at the same time, and the image can be enlarged and reduced

4) High brightness, and can be adjustable, meets the need of changing requirement of customer in environment

5) Uses real pixels rather than virtual pixels, better viewing effect

Applications:

LED advertising board wide applied in stadiums, advertising, banks, securities exchange, stations, shopping malls, postal offices, schools, monitoring, restaurants, entertainment, enterprises etc


What can we provide with you ?

   We are Shenzhen Mountain A-Li Group Electronic Technology Co.,LED. We have opened many sub-office in different provinces and cities in China. And we also have already have office in Kazakhstan, Russia, Thailand , Turkey, India, South Africa, Belgium, Singapore, Malaysia, Indonesia, Colombia, Brazil. Now our products are widely used in dozens of countries worldwide, continue to emerge in the international renowned events and occasions, capture and focus the imagination of millions of viewers.

1. Formal company, 8 years of experience ,courteous service

2.Manufacturers delivery, higher quality at low price than trade company

3.Products can be customized, professional design, your satisfaction is guaranteed

4 Satisfied with the consulting services and after-sales service.

Installation

    We offer you the engineer to install the LED display, you have to offer him the two-way air tickets and accommodation as well as visa. The engineer's salary is $80/day;or we offer you the training on the LED display installation and repairing for free after you live in our company, or we can guide you to install the screen by remote control.

How about your quality warranty?

    It is 2 years quality warranty and lifetime technology support and maintenance from the second year. If you improperly operate or something wrong with our products, we are responsible for the maintaining and repairs instruction or guide free of charge.

Trade Terms

1. Trade terms: EXW, FOB, CIF, etc.

2. Payment terms: 30% deposit, balance before shipping

3. Payment methods: T/T, West Union, MoneyGram,

4. MOQ:1(1 square meter)

5. Delivery:7-15days after deposit.

6. FedEx/DHL/UPS/TNT for samples, Door-to-Door;
