Home LED Light Products High Brightness RGB Full Color Indoor LED Display P20 LED Display

High Brightness RGB Full Color Indoor LED Display P20 LED Display

High Brightness RGB Full Color Indoor LED Display P20 LED Display
Price: Negotiable/Square Meter
Trade Terms: FOB
Min Order: 5/Square Meter
Pay Type: T/T,Western Union

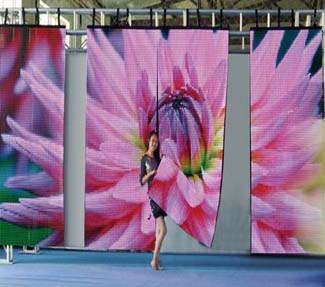

P20mm indoor SMD full color flex led curtain display

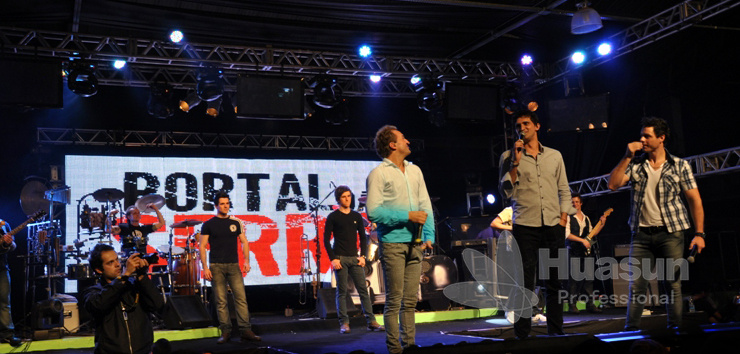

P20 indoor led screens high brightness for sports stadiums



Specification:

Resolution:                             pitch 20mm



Density:                                 2500 dots/SQ.M



Pixel:                                     RGB 3-in-1 LED



Bit depth per color:                  12 bit



Bit depth per pixel:                  36 bit



Viewing angle:                        120º × 120º



Service life:                             80000 hours



Brightness (white):                  2700 nits



Brightness level:                     16 levels



Fresh frequency:                     60Hz



Innovation:                              ≥600Hz



Drive mode:                            constant current



Control mode:                         VGA synchronous display



Display mode:                        1024×768, 1280×1024



Display port:                            DVI



Working voltage:                      90~264VAC 50/60Hz



MAX. power consumed:            68W/ SQ.M



Average power consumed:        28W/ SQ.M



Face material:                          DFR velvet drapery



Weight:                                   8.2kgs/ SQ.M



Weather rating:                         IP 44



Optimal visual distance:            15m



Ambient relative humidity:         10%~90%



Working temperature:                -10 ~50 Degree



Package:                                 Carton (Flight case optional)



Recommendation Size:             1.28m width x 2.56m height



Installation:                               Hang



Control system:                        HC-101,HC-103 or HC-102



Safety certificate:                      CE, FCC





Huasun Technology Co., Ltd



Huasun has very rich experiences in flexible LED display technology. The company has more than 10 relevant patents and is dedicated to making the LED display even lighter, thinner, and allowing more people to enjoy the convenience and great experience in technology innovation.



We would be very glad to offer any further assistance. Please contact us if you need any additional information. This is Angel Lee, from HUASUN TECHNOLOGY CO., LTD

Prod Model: FLC-2500
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Screen Dimension: Width 1280mm*Length2560mm
Brightness(White): 1730CD/Sq.M
Max. Power Consumption: Square or More Than 45W/Sq.M
Average. Power Consumption: Square or More Than 18W/Sq.M
Optima Visual Distance: 15m
Weight: 7.0kg
Tube Chip Color: Full Color
Display Function: Video Display
Scanning Mode: 1/8 Scan
Application: Shopping Guide
Pixel Configuration: 1R,1G,1B
Certification: FCC
System Operating Platform: WIN XP
Pixel Pitch: 20mm
IP Rating: Front: IP 65: Rear: IP44
Pixel Density: 2500pixel/Sq.M
Huasun Technology Co., Ltd. is a high-tech enterprise that is engaged in the researching, developing, producing, marketing, and engineer service of LED display and LED lighting. It has been grown in Beijing, capital of China, for over ten years. The main products and services include LED display system, LED digital stage system, LED lighting system. With a business principle of technological innovation and professional service, the company commits to provide high-quality LED products and solutions for all clients.

The company has a R&D team made up of senior engineers. Taking advantage of the technological and cultural resource in the Capital of China, working together with experts in mechanism, optics, and electronics from the main universities, the team is devoted to the research and application of multimedia technology and has gained the leading position in product design, software development, mechanical design and optical application. The company has own many national invention patents in LED display technology. Flexible LED display, one of our patents, is a landmark product in the development of LED display. It is widely used by the clients from all over the world for the advantages of compact size, light weight, and easy installation. We always keep in mind that the mission and responsibility of the enterprise is to change the world by pioneer spirit and innovative product in a technology high speed age. We are always proud of it.

Welcome to future of Huasun: A brighten future.
