High Brightness P10.416 Outdoor Transparent LED display
Specifications as below:
1. Outdoor LED Display
2. Higher refresh rate: Over 1500Hz/s, no scan line
3. High color quality
4. Excellent waterproof
5. Outdoor slim aluminium cabinet
6. Durable & stable LED display.
7. Waterproof Neutrik connectors are optional, better connectivity performance.
8.2 Years warranty.
ENBON Optoelectronics limited invents in developing Slim aluminum cabinet outdoor Rental LED display screen, to enter high-end market. At present, more and more high-end Renatal LED display outdoor adopts a relatively high precision die-casting process, the use of molds forming a more secure cabinet flatness, keeping tolerance control, basically solved the problem in cabinet patchwork; Also, die-casting Aluminum cabinet breakthrough the traditional one, with a more beautiful appearance. Besides, aluminum alloy still remains stable performance, in air and higher temperatures, not like to iron rusty.
ENBON Slim aluminum cabinet outdoor LED display has the following advantages:
1. The new structure design enables diversified installation to meet the hanging-up and stacking requirements, can be applied to achieve a variety of different occasions to meet various application requirements.
2. User-friendly design, more convenient installation, more efficient and secure; High strength, high toughness, and deformation; More reliable cabinet patchwork and cable connection,
3. Cabinets adopt rapid assembling sets, Which can be beautiful but also a real rapid disassembling.
4. Good thermal design. Taking structural heat emitting to keep the cabinet a excellent heat dissipation even no fan installation.
5. The entire cabinet with die casting aluminum alloy material is more lightweight and practical.
6. Compact base design, so that the whole screen space can be smaller a lot.
7. Higher IP rating; New system, High refresh rate, High brightness, True color output; Breathtaking gray level
8. Unique isolation design of the side lock, can withstand the storm

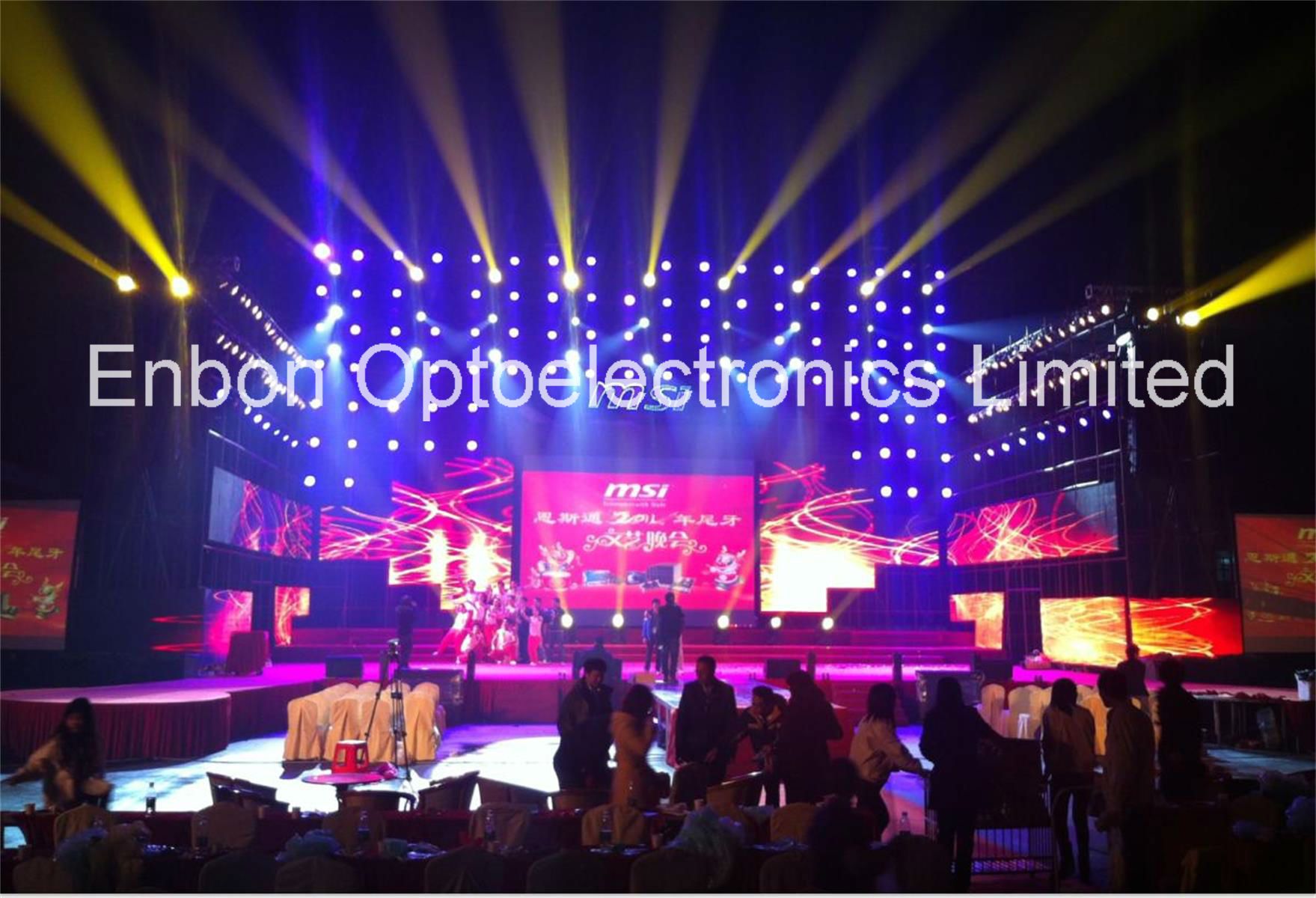

Specially for AV rental companies, great choice for concert tours, product launch events, cooperation events etc.
| Technical Prameters |
| PROJECT | P10.416 outdoor LED screen display for rental |
| Pixel pitch | 10.416mm |
| Pixel density | 9216 Pixels/sqm |
| Module size(W*H) | 250 W(mm) | 250 H(mm) |
| Module pixels(W*H) | 16 Pixels(W) | 16 Pixels(H) |
| Pixel configuration | 1Red 1Green 1Blue |
| Drive mode | constant current driving 1/4 scan |
| LED lamp type | SMD3535 |
| Cabinet size(W*H*D) | 500 W(mm) | 1000 H(mm) |
| Cabinet resolution | 48 Pixels(W) | 96Pixels(H) |
| Color scale | 65,536 degree |
| View angle(H/V) | 140/140 degree |
| Brightness (White balance) | ≥5000cd/sqm. |
| Power consumption(one cabinet) | Max:750W/sqm. Average:280W/sqm. |
| Operating Voltage | AC100V±10% or 220V ±10%; 50---60HZ |
| Net weight | 11Kg/Cabinet |
| Operating temperature | -20°C----+50°C (Customized power supply:-45°C---+60°C) |
| Operating humidity | 10%_95%RH |
| Life time | ≥100,000hours |
| MTBF | 5,000 hours |
| Whole Display Flatness | ≤0.5mm Juncture |
| Frame frequency | >60 Hz/s |
| Refresh rate | ≥1500Hz /s |
| Control distance | 100m (without repeater), single mode fiber:20km, multi mode fiber: 500m |
| Power | 110V/220V±15% 50--60Hz |
| LED control system | LINSN,Dbstar,Nova-star,ZDEC,Colorlight is selectable |
| Operating system | Windows 2000 / Windows Xp / Windows 7 |
| Protections for outdoor display | IP65 |
| Maintenance way | Rear Access |
| Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI |
