High Brightness Outdoor Full Color LED Sign LED Display Board
| Price: |
Negotiable/Square Meter |
| Trade Terms: |
FOB,EXW |
| Min Order: |
5/Square Meter |
| Pay Type: |
T/T,Western Union |

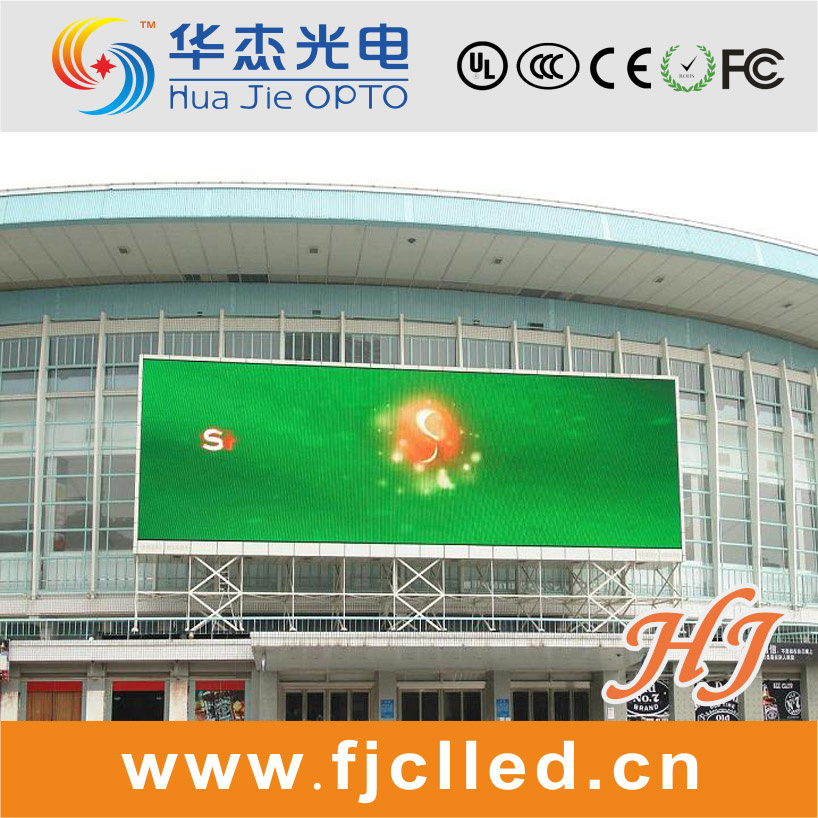

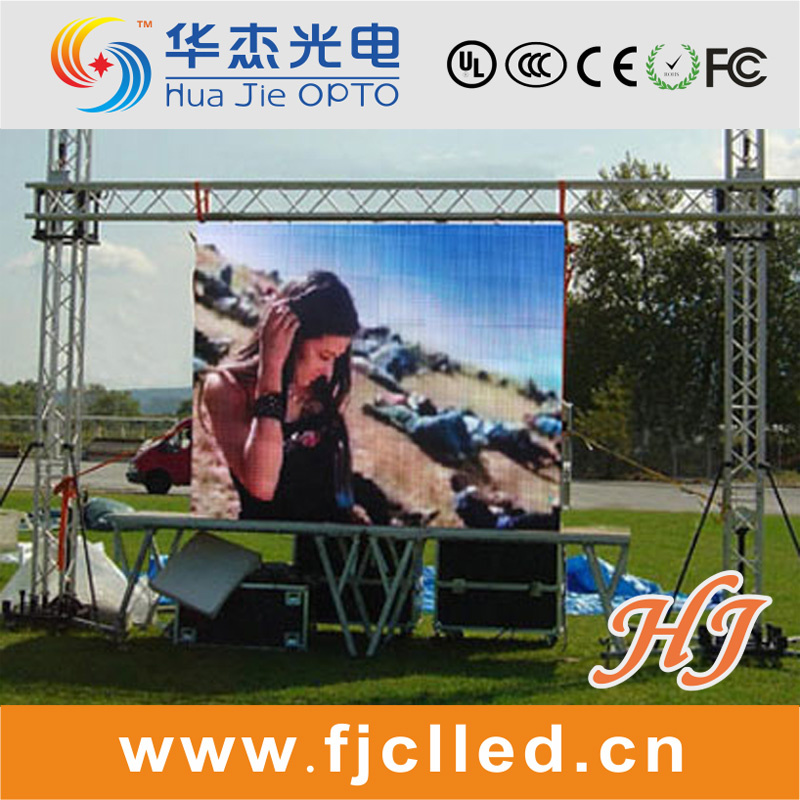

Full Color LED Sign Outdoor LED Video Display Board
Features of the Our LED Display:
*Quick assembly model, 2 persons are able to assemble 20sqm within one hour
*Light weight, for indoor application, only 38kg/sqm, for outdoor application, only 45kg/sqm
*Weatherproof to IP65 standards
*High resolution images
*Easily configured for various size and aspect ratios
*Wide viewing angle
*Brightness is adjustable depends on enviroment
*Compatible with inputs: S-Video, Composite, YUV, RBG, SDI, HKSDI, Data SVI up to SXGA
DIP LED display is called as the traditional LED display while SMD LED display stands out in recent years, so we use DIP to distinguish latest SMD. Currently our company uses two main items, DIP346 and DIP546 which means specification and size of the chip.
346 is mainly used in high density LED display while 546 in large pixel pitch and high brightness. With the development of the technology, 346 can match the brightness and heat radiation effect so that The trend seems to replace 546, gradually to become one item.
According to the usage mode, DIP LED display can be classified as outdoor DIP 3 lamp series, outdoor DIP 4 lamp series, DIP illuminance series and DIP back wall series
In contrast to new-born SMD LED display series, main advantages of DIP series are as follows:
1. As DIP LED display has experienced long term R&D and application, technology of DIP is mature, performance is stable and it is widely supported. Most of the complicated systems or complement measures are designed and manufactured on basis of DIP display standards, so DIP LED display is your conservative and reliable choice.
2. High brightness, DIP LED display adopts independent encapsulation, so when it is the same brightness, DIP has more heat radiation sheet metal than SMD so that design is in favor of chip heat radiation and high brightness. Meanwhile, DIP LED adopts V shape encapsulation, which can increase its performance of lighting focus so as to raise brightness and viewing distance.
3. Better waterproof, DIP LED display is widely installed outdoor or semi-outdoor because of its high brightness and better waterproof effect and solutions
Other features:
1. CE. RoHS. FCC. C-Tick authorized;
2. ISO9001: 2008 QC system;
3.100.000 hours life span;
4. Water proof. Dust proof;
5. AC 85V to 265V power input;
6. Video. Flash. Animation. Graphic. Text available;
7. PC controlled in real time;
8. Installation structure drawing offered FOC;
9. Easy for installation;
10.2 years warranty offered;
11.1% spare parts offered FOC;
12. Training in our factory offered FOC;
13. On-line remote service is available;
14. EXW. FOB. CIF accepted;
15. Factory visiting and inspecting is welcome;
16. OEM service offered;
17. Monthly production capacity: 3000 Sq. M
|
P10 Full Color Outdoor Module |
|
Item |
Unit |
Parameter |
|
Pixel Pitch |
mm |
10.00 |
|
Pixel Density |
dots/sqm |
10, 000 |
|
Resolution of Module |
dots |
16× 16 |
|
Module Size |
mm |
160× 160 |
|
Led Package |
DIP Oval 346 lamp |
|
Pixel Configuration |
1R1G1B |
|
Chip Brand of LEDs |
Silan/Epistar/Cree/Nichia |
|
Module Weight |
kgs/pc |
0.46 |
|
Brightness (White Balance) |
nits(cd/sq. m) |
6, 500 |
|
Red Wavelength |
nm |
620-625 |
|
Green Wavelength |
nm |
520-525 |
|
Blue Wavelength |
nm |
470-475 |
|
Scan Mode |
1/4 Scan |
|
View Distance |
M |
5~100 |
|
Best View Distance |
M |
12.5~33 |
|
Viewing Angle-Horizontal |
deg. |
110 |
|
Viewing Angle-Vertical |
deg. |
60 |
|
Module Maximum Power |
W |
33.4 |
|
Max. Power Consumption |
W/sq. m |
1, 302 |
|
Avg. Power Consumption |
W/sq. m |
390 |
|
Working Voltage |
40A 5V |
|
Power Supply |
AC 110/220V |
|
Waterproof Grade |
IP65 |
|
Refresh Rate |
Hz/S |
3, 000 |
|
Frame Rate |
Hz/S |
≥ 60 |
|
Gray Scale |
4096 grades gray |
|
Display Color |
256*256*256 |
|
Display Function |
Text, news, advertising, flash, animation |
|
Input Signal |
RF, S-Video, RGB, RGBHV, YUV, YC, SDI, HD-SDI, DVI, UXGA, COMPOSITION, etc. |
|
Luminance Degradation |
Less than 5% after 1000 hours Ageing test, testing current 30mA, under normal temperature 25 |
|
Defective Dot Rate |
|
0.0001 |
|
Life Span |
hours |
100, 000 |
|
MTBF |
hours |
10, 000 |
|
Storage Temperature |
|
-35 -- +80 |
|
Working Temperature |
|
-20 -- +80 |
|
Working Humidity |
10%-90%RH |
|
Control System |
Synchronization or Asynchronization |
|
Quality Certificate |
ETL, CE, RoHS, TUV, FCC class A, ISO9001: 2008 |
|
Warrenty |
2 Years |
|
Working Environment |
Outdoor |
|
Other Fertures |
LED& ICs in Departed PCB |
|
Note: The above parameter is just for reference. Changes can be made according to customers' requirements. |
| Prod Model: |
CL-P10-RGB |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Module Size: |
160*160mm |
| Brightness: |
6500 Nits(CD/Sq.M) |
| Payment Method: |
Tt 30% Deposit (Negotiable) |
| Cabinet Size: |
960mm X 960mm |
| Chip Brand: |
Epistar |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Configuration: |
1R, 1G, 1B |
| Pixel Pitch: |
10mm |
| Display Function: |
Video Display |
| Scanning Mode: |
1/4 Scan |
| Certification: |
CE |
| Average Power Consumption: |
300W / m² |
| Pixel Density: |
10000 Dots/Sq.M |
Channel Cailiang (Zhangzhou) Optoelectronic Co., Ltd. is one of the biggest LED manufacture in China. Our factory have 30 PCS production line for Outdoor DIP Modules, 5 PCS line for Indoor SMD products and more than 1, 500 skilled workers. Our R&D team are comprised of a crew of 10% of total staff and most of engineers have more than 5 years experience in LED industry, which great support our new products developing or customized products according to customers' requests.
Our Main Business is Produce various LED Display Module and LED Display Panel for Customers' assemble. It' s avaliable supply all the components for assemble LED Display or LED Message Signs. Besides, we focus on offering whole proposal for LED Display Projects and Solutions. Not only for regualr type, we have continuously developed several Profiled Screens and achieved some proud success in developing Traffic Wireless Solution Display Screens.
In order to design and develop higher quality products, our R&D team always tries best to meet the US&Euro-standards for Electronic products, as well as to fulfill the special requirements from customers. Our products have been approved the German TUV- EMC Certification and Euro EN12966 Certification, and we have also achieved ISO9001: 2000, CCC, CE, FCC, RoHS Certifications.
with perfect designed products, integrated solution including both hardware and software, and superior product and service guarantee, Cailiang has been highly praised by domestic and overseas customers. We have been shipping qualified products and services to more than 50 countries and regions all over the world, such as in the USA, Japan, Russia, Sweden, Turkey, Poland, France, Israel, Argentina, Spain, Italy, etc.
We value the power of cooperative team work, we take "Quality & Honesty" as our belief, and "Being the Largest Global Supplier of LED display Solution" as our goal.
"Channel Cailiang" Sincererly Invite your participation!
