Product Description

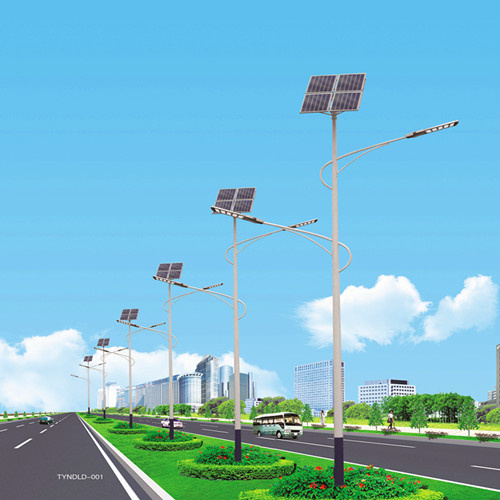

9W High Brightness 60W LED Solar Powered Street Lights
LED Solar Street Lighting System
LED Street lighting is a fresh new alternative to traditional street lamps such as: LPS, HPS, or MH street lights.
LED lighting provides a multitude of advantages over conventional incandescent lights
* Advantages of LED Solar Powered Projects:
1). Green Energy, Lower Power Consumption, Save 60%-80% Than Others.
2). Higher power, higher brightness intensity, Good Color Rendition.
3). Save electricity cost. Save electric transformer and cable cost. Free maintenance
4). Environmental Impact - Eliminate Hazardous Disposal, Low Light Pollution, No Radiation.
5). Longer lifetime: Between 80000-100000 Hrs. If lighting 12 hrs/night, could use at least 12 - 22 Years
6). Less heat Generated compared to other sources,
7). Downward orientation of Light, could adjust lighting angles and lighting range and shape on the Ground to meet the road-Rectangular. Other lighting source just could give common round shape and small lighting range.
* Our Competitive Products
1. Solar Street Lights & LED Street Lighting 15W-120W; |
| 2. Solar Garden Lights & Solar Landscape Lights 5W-30W; |
| 3. Solar Battery: 4.5Ah-250Ah/12V, 200Ah-3000Ah/2V; |
| 4. Solar Panels & Solar Modules 5W-300W Poly & Mono ; |
| 5. Solar Controllers: 5A-60A/12V Or 24V Or 48V IP 65 IP68 Rating; |
6. Solar Home Lighting System/Kits :
5W-5000W With Lighting + Fan + TV + Fridge + USB Charging Phone Function/AC or DC Power |
*LED Solar Power Courtyard Lighting Working Principle
The solar street light relies on solar energy, which is clean, endless and environmental friendly.
The system is mainly composed of solar panel, light source, controller and battery.
In daytime, when there is sunshine, the solar panel can convert the solar energy to electric energy and store it in the battery.
At night or rainy or cloudy condition, the battery shall supply power for normal lighting.
The controller can judge the brightness of daylight and automatically switch on the light.
The whole process is operating in completely automatic mode, without human action.
* Regular Configurations and Specifications of LED Solar Powered Lights
Specification of 60W solar powered street lights,Model (6-8-10M-S1) |
| Part Name and Lifespan | Technical Specification |
Solar Panel:
Lifespan:20-25 years | 120W 24V *2PC, Poly Crystalline.
High Efficiency. A-class, Adding Aluminum Frame, Tempered Glass. |
Solar Battery
Lifespan:5-8 years | 150Ah 12V *1PC, Gelled Battery,
Sealed Type. Deep cycle. Maintenance Free |
Intelligent Solar Controller
Lifespan:5-10 years | 15A/24V, IP68. Automatic Light and Time Control
Over-charging/discharging Protection
Reverse-connection Protection
Switch on Automatically with Light Sensor;
Switch off after designed 11-12Hours later. |
Light source: High Power LED
Lifespan: More than 50000-100000Hrs | 60W LED, White Color, 7200LM,6500K,IP65
High Power, High Brightness. |
Lamp Housing:
Lifespan: More than 20 years | Die-casted Aluminum, IP65
High transmittance & Density toughened glass, |
| Battery Box: | Engineer Steel, at the bottom of the pole. |
GI Pole System:
Lifespan: More than 20 years
| 8M Height, tapered Pole, Steel, Painted as Wanted Color,
Hot-Dip Galvanized. Plastic Coated, Rust Proof,
With Arm, Bracket, Flange, Fittings, Cables, Etc
Resistant to Wind: ≥150KM/H |
* WHO WE ARE
Established in 1997, an ISO 9001:2000, CE&EN, RoHS, Soncap, IEC, TUV, CCPIT, CCC approved manufacturer and exporter.
Our solar lighting products have been successfully applied in more than 50 countries, which covers EUROPR, NORTH AMERICA, OCEANIA, MIDDLE EAST, SOUTH ASIA & OTHER ASIA, MIDDLE AMERICA & SOUTH AMERICA, WEST AFRICA & SOUTH AFRICA, OTHER AFRICA.
After-Sale Service:
1. LED solar street lights should be used under normal condition. The warranty of the
quality is based on correct preservation, installation, usage and maintenance.
2. It's not included in the warranty scope if the products damage is due to improper
installation, product regulations violation or damaged by human.
3. For the quality problems during the warranty period, our company will choose the
best methods of repair exchange (parts) or replace the products and etc.
4.Some material cost, labor cost may be charged properly for extended service.
Jinshang Solar Lighting Co., Ltd. is situated in Guoji industrial park of Yangzhou city, a Chinese famous historical city, which nearing the Jinghu high way in east, closing to Huning high way in south, approaching Ruiyang great bridge, with superior location and fast and convenient traffic. This is a large outdoor lighting production enterprise, integrating of design, research and development, manufacture, setting and service.
Now, we have over 300 stuffs, including over 50 technicians. Covering 20, 000 squares meters area, we have large numerical control bending machine, aluminum die-casting machine of 2000ton, hydraulic tensile machine, double powder electrostatic spraying line, automatic cutting machine, arc-submerging welder, gas welding, vehicle, and digging, drilling, bending and over hundred equipments. We have various products, such as die-cast aluminum lamp, cone-shaped, rhombic, variable diameter lamp pole, high pole lamp, combination lamp, garden lamp, high pressure sodium lamp, ballast and parts appliances
We hold the management principle of" strive for survival on the basis of quality, explore the markets on the basis of sincerity". The developing goal is to meet the requirements of our clients and to establish the brand effect of Jinshang. We implement the special technical activities and establish qualified archives in a long time, which is to improve and enhance our manufacturing technique. We also try our best to make our rules and regulations perfect. We will continue to warmly welcomes the communities to come to new and old customers visit our company and guide! The company mainly produces and sells various types of solar street lamp, wind solar hybrid street light, electric power street lamp, PV off-grid equipment, garden lamp, landscape lamp, pole lamp, project lamp, digital LED lights, lawn lamp, underground lamp, lifting pole lamp, cone-shaped and polygonal variable diameter steel pole, electrified rail pole, traffic bar, flagpole, various type of light source appliances, and other parts of ballast, trigger, light or time controller electrical appliances and so on, which widely applied in outside roads, squares, parking lots, wharf, garden etc.
Our company gets rich experiences in city lighting engineering which work in this field over 10 years. We are the enterprise of attaching importance to contract and credit in Jiangsu. We enjoined the reputation of quality reliable enterprise in Jiangsu as well as excellent enterprise of standardized implement. Our company rated AAA grad credit enterprise, and through ISO9001international quality system certification. The enforcement of product certification in nation as well as AAA grad, CCC, CCCC2, ISO14001 Certification of environment protection. We also own the third certification of street lighting engineering contractor. We also get the permission of safe production.
In 2015, Wuhan office Hubei, Jinshang lighting Co., Ltd and Lighting equipment, Yangzhou, Jinshang Co., Ltd. Invest to establish a 5000-square-meter solar PV production line together, which import the most advanced equipment of manufacture and testing in the world to make sure the high quality of solar PV module in the international field. The assembly line of solar PV manufacture the solar street light and Off-grid solar system whose products are popular both at home and abroad, such as Middle East, south America, Africa and so on.
