Product Description
Our products:
We specialize in producing and developing all kinds of led displays. As a reliable LED Display manufacturer and exporter in China, we supply Indoor led displays, Outdoor led displays, semi-outdoor led displays.Please kindly tell me which kind of the item you prefer to and provide me more information. It will help us to give you a good price.
Our features and advantages:
1.High quality:
Use high quality LED with high luminous efficiency and low brightness decay to make the display stable.
2.Good effect:
To show vivid and clear pictures with high resolution, but low cost; Has good display effect in both pictures and letters because of using real pixel technology.The products support multiple display modes.
3.Easy maintenance:
Can fix the single point to save the maintenance cost.
4.Good uniformity:
Brightness difference within 10% between any two LEDs, to ensure the brightness and color uniformity of the display; Good uniformity in color solve the problem of mosaic well
5.Price
No. 1 cost effective. The price is very good, please contact us for an offer. You can compare and know!
6.Application
It's wide Application, such as stage rental events, exhibition, wedding, advertising, meeting room and so on.

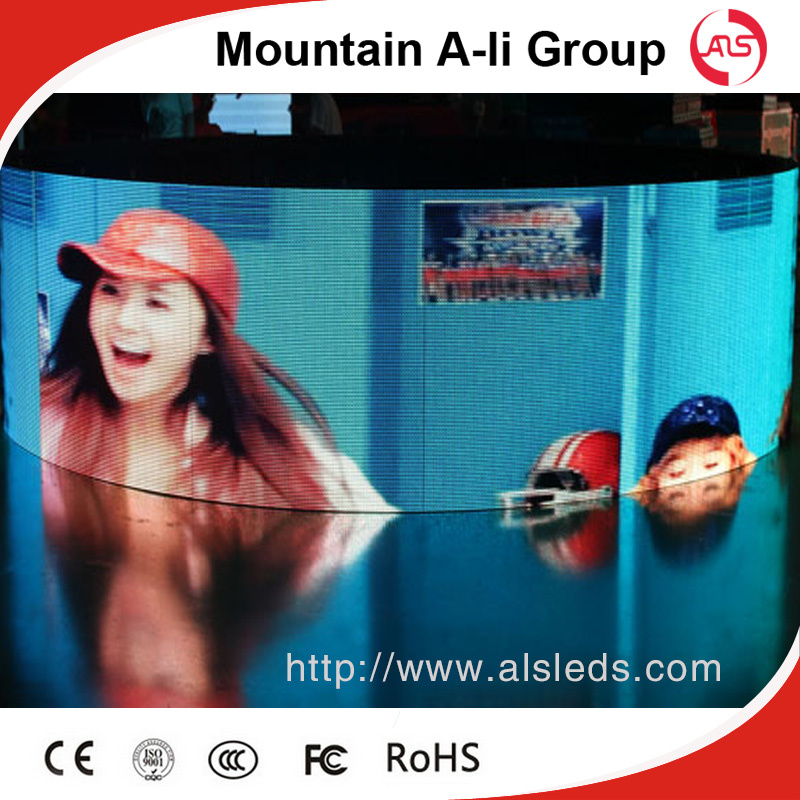

HD P3.91 Indoor Led Display For Stage
Unit Module | Item | parameter |
Model | ALS - P3.91 - 16S |
Module size | 250mm*250mm |
Pixel Pitch | 3.91mm |
Pixel Density | 65536dots/m2 |
Pixel Configuration | 1R1G1B |
Package mode | SMD2121 |
Module Resolution | 64dots(W)*64dots(H) |
Max power consumption | 32w |
Module Thickness | 14.66mm(without magnet) 26.55mm (with magnet ) |
Module Weight | 0.573kg |
Driving Method | Constant Current Driving |
Scan Method | 1/16scan |
Interface Way | HUB75E |
Brightness | ≥1200cd/m2 |
Unit Module | dimension | 500mmx500mm |
Quantity of Module | 4 |
Thermal discharge | fan 1pcs |
Power supply Mode | 5V/60A* 1pcs |
Pixel per cabinet | 128mm*128mm |
Thickness | 65mm |
Optimal Viewing Distance | 4M-10M |
Optimal Viewing angle | 160°(W)120°(H) |
Enviroment Temperature | Storage :-35ºC-+85ºC work :-20ºC-+50ºC |
Power | Relative Humidity | 20%-90% |
Operating Voltage | AC220V±10% |
Average power consumption | 168WH |
Max power Consumption | ≤560W/m2 |
Current | ≤20mA (Single LED ) |
Control system | CPU | Pentium4 or above P4 or above |
Operate system | WIN98/2000/NT/XP |
Control Mode | Synchronization with PC |
Main technical parameter | Driving Device | IC Constant current driving |
Refresh Rate | ≥900HZ |
Gray/Color | 4096 gray grade, can display 16.7M clolor |
MTBF | ≥9000hours |
Power Switch | Automatic Switch |
Display Mode | 800*600/1024*768 |
FAQ:
1. Are you manufacturer? If yes, in which city?
Yes, we are the professional manufacture of LED display, and we work on it more than 10 years. Our company in Shenzhen, Dongguang, China.
2. Can I visit your factory ?
We warmly welcome customers visit us. Before you come here, please kindly tell me your schedule, we can arrange for you. The nearest airport is Bao'an Shenzhen international airport.
3. How about your quality warranty?
2 years quality warranty and lifetime technology support and maintenance from the second year. If you improperly operate or something wrong with our products, we are responsible for the maintaining and repairs instruction or guide free of charge.
Remarks
1.Payment term:
30% T/T in advance and balance before delivery.
2.Delivery time:
Within 15 working days after 30% advance payment.
3.Free training:
You can send your engineers who have knowledge of electronics and information to our factory and we provide free technical training, which contains training operation and maintenance of the LED display at our factory. We also offer the instruction manual, software, test report, drawing steel structure and so on.
4.Installation:
We offer you the engineer to install the LED display, you have to offer him the two-way air tickets and accommodation as well as visa. The engineer's salary is $80/day;or we offer you the training on the LED display installation and repairing for free after you live in our company, or we can guide you to install the screen by remote control.
5.Service after sales:
If you have any questions about our product, you can inform us by mail or call, and we will reply you in 24 hours when we get you E-mail or call, and offer you a good solution for your problem.
Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
