Home LED Light Products Half Spiral T3 7W~18W Compact Fluorescent Lamp Energy Saving Light

Half Spiral T3 7W~18W Compact Fluorescent Lamp Energy Saving Light

Half Spiral T3 7W~18W Compact Fluorescent Lamp Energy Saving Light
Price: US $ 0.87-0.92/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 3000/Piece
Pay Type: L/C,T/T
CM-HS9A 7W 9W 11W 15W 18W Half Spiral T3 Energy Saving Lamp with CE RoHS UL Quality Standard  Basic Parameter
Product Name        :   Energy Saving Lamp/ CFL/ ESL
Model No.                :   CM-HS9A
Shape                      :    Half Spiral
Tube Dia.                 :   9mm
Lamp Dimension   :   42mm
Base Type               :    E27, B22, E14
Body Materail          :    PBT/ PC Plastic Housing, Tri-color Tube, Aluminum/ Copper Base

Electrical Parameter
Input Voltage           :   AC 220-240V or 100-130V  50/60Hz
Working Voltage     :   AC 170-265V or  90-145V   50/60Hz
Environment T        :    -10
ºC- 50ºC
Rated Watt               :   7W, 9W, 11W, 13W, 15W, 18W
Real Watt                 :    85%-105% of Rated Watt
Power Factor           :    0.5  or  0.95
±0.05
On-and-off test        :    8000-15000 times

Photoelectrical Parameter
Color Temp.            :    2700K-6400K
Luminous Efficacy  :   55lm/w- 60lm/w
CRI.                           :    Ra>80
Lumen Maintaince  :   2000 Hours >85% of Initial Lumen
SDCM                        :    <5.0
Life time                   :    6000 Hours   8000 Hours   10000Hours

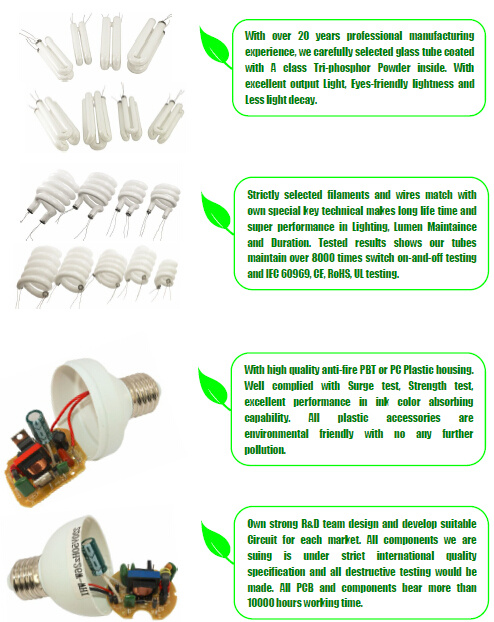

MAIN PARTS QALITY CONTROAL AND KEY TECHNIQUE


TUBE, PCB, BASE AND PLASTIC PART

PRODUCTS DETAILED SPECIFICATIONS:
Batch No.Rt. Watt   (W)Ra.Lumen   (lm)Lumen Eff. (lm/w)Tube Dia.Lamp SizeCarton SizeWeight
Ø (mm)L/L1/A/C (mm)Length/Width/Height (cm)N.W. (Kg)G.W. (Kg)
CM-HS9A7>80327559110/ 61/ 42/ 4250 Pcs/ 46.5/28.5/13.53.14.3
9>80421559120/ 61/ 42/ 4250 Pcs/ 46.5/28.5/14.53.24.4
11>80514559124/ 61/ 42/ 4250 Pcs/ 46.5/28.5/153.34.6
13>80608559131/ 61/ 42/ 4550 Pcs/ 46.5/28.5/16.33.54.9
15>80701559142/71/ 42/ 4550 Pcs/ 46.5/28.5/17.53.95.3

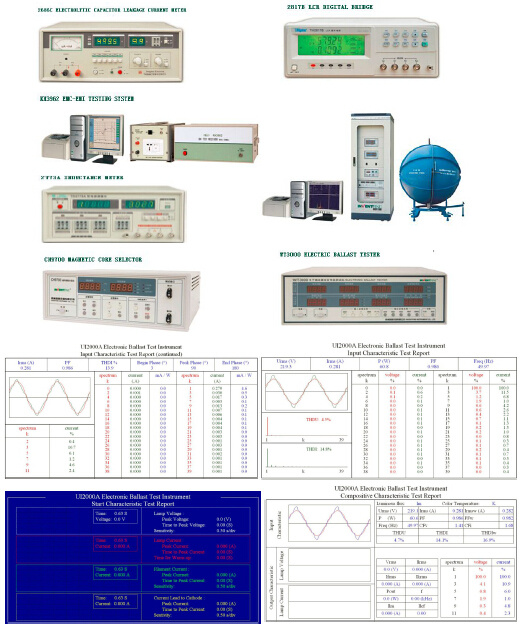

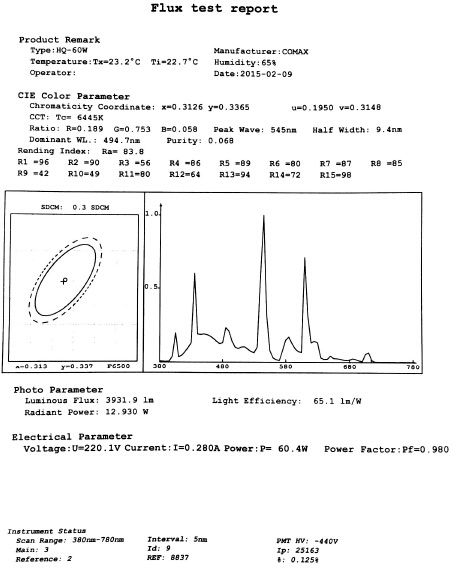

TESTING EQUIPMENT AND TEST REPORTS





QUESTIONS AND ANSWERS

Q: WHY CHOOSE YOUR FACTORY?
A: We are professional manufacturer for CFL with over 20 years experience. We produce tube parts which is the most important part of a lamp in our own factory. Here are strong teams for R&D and after selling service. We also offer one-to-one technical training and support for our SKD or CKD buyers.
Q: HOW DO YOU SOLVE THE QUALITY PROBLEM OR HOW YOU HELP YOUR CLIENTS IN MARKETING?
A: Our sales team marketing on professional markets and we will only deal with no more than 10 clients in each market. Our salesman or marketing director will visit our key clients in key market. We will solve all kinds of problems and work out solutions together with clients face to face.
Q: DO YOU OEM FOR CLIENTS?
A: Yes, 80% we are doing OEM, but we also have our own brand name. Also we supply naked tubes for Osram and GE OEM factory here.
Q: HOW YOU OFFER GUARANTEE AND WARANTEE FOR CLIENTS?
A: We offer at least one year guarantee for all products. Once there was complaint from clients or markets, we will check out and discuss then work out suitable solutions together with clients.
Q: HOW YOU CONTROL QUALITY?
A: Now we mainly use AUTO MACHINE such as AUTO-inserting components machine, AUTO-soldering machine etc. to improve the quality stability. At the same time, we run a very strict QC rules which will test products 6 times during producing and also we make QC when the goods semi-finished and then when the goods totally assembled.

Prod Model: CM-HS9A 7W 9W 11W 15W 18W
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Efficacy: 55-60lm/W
Ra: >80
PF: >0.5
Sdcm: <5
Lifespan: >6000hrs
Shape: Half Spiral
Lamp Holder/Base: E27
Lamp Type: T3
Tube Diameter: 9mm
Color Temperature: 6400k
Plastic Material: PBT
Lamp Body Material: Plastic
Lamp Holder Material: Nickel-plating
Certification: ISO9001
Voltage: 220V
Comax Electric Appliance Co., Ltd is a high-tech enterprise which rely on top 100 private group----CNC Group. With strong financial &technique support, we fully dedicate to the lighting filed on researching, development and manufacturing of CFL and LED lights and etc. We have more than 500 Stuffs and more than 20 engineers engaged in this lighting industry. Our Products contains: All series of CFL/ Energy saving lamp such as 2U series, 3U series, 4U series, Spiral series and high power series and etc; Indoor and outdoor LED lighting such as Spot light, Down light, Tube light, Ceiling light, panel light and Street light and etc. We always quest for latest technology and strictly hold the process controlling standard. All our products reach international standard such as CE, RoHS, CQC, SGS, UL...

Comax people insist holding the conception of providing the market with lighting products which are more environmental-friendly, energy saving and comfortable. The company commits itself entirely to improve living quality and home environment of humanity by new advanced technology. Adhering to the company motto of"working diligently, think creatively, communicate faithfully, grow in virtue"we will continue our endeavor in innovation and opening, striving for a cleaner world and sustainable human society.
