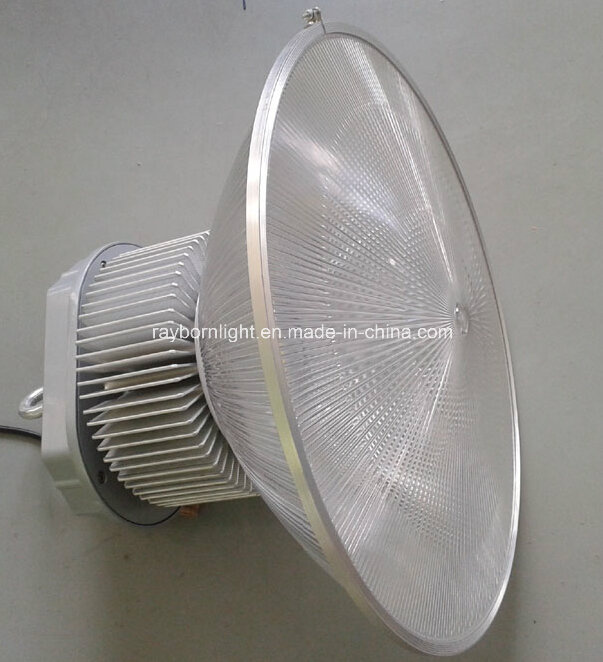

Golden Supplier PC LED High Bay Light/Cold Storage High Bay LED Light with CREE Chip
Specification Sheet:
| Item No.: | RB-HB-150W |
| Input Voltage: | AC 100~277V |
| Freqency Range: | 50Hz~60Hz |
| LED Chip | Bridgelux 45 mil |
| Power Driver: | Mean Well |
| Power Factor: | >0.98 |
| Power Efficiency: | >91% |
| LED Power | 154W |
| LED QTY: | 1pc*150W |
| LED Working Voltage: | DC 42~48V |
| System Consumption: | 155W |
| LED Luminous Flux | Warm White | 14350LM |
| Pure White | 15100LM |
| Cool White | 15300LM |
| Viewing Angle: | 45degree |
| Centre Illuminance | Height 3M | 1746LUX |
| Height 4M | 982LUX |
| Height 5M | 629LUX |
| Illuminance Area | Height 3M | Dia.3.5 M Round spot |
| Height 4M | Dia.4.6 M Round spot |
| Height 5M | Dia.5.8M Round spot |
| Illuminance Uniformity: | >0.6 |
| Color Temperature | Warm White | 2700K~3500K |
| Pure White | 4000K~5500K |
| Cool White | 6000K~7000K |
| Color Rendering Index | Ra>80 |
|
Advantage:
1) Defective rate control around 1‰ , PF>0.95, can real pass CE, EMC. LVD in Europe, The driver have strictly inspection test before assembly.
2) Our production line have inspection people inspect product quality process.
Example: Light up test, power wattage test, high-Voltage test, waterproof test, ground connection test and so on.
3)12hours more aging test, inspection department will test 100% product for light up test, power wattage test and so on.
4)Adopt Meanwell HLG series Driver
5)
We used is latest technology radiator, integration of thermal conductivity heat dissipation phase change technology, without contact thermal resistance.
The new radiator is made by high thermal conductive materials, it makes the heat from LED to spread on the radiator in 3 seconds.
6)
We make industrial LED light many years, this is our all update LED diffuser, the new prismatic diffuser reflective rate could reach up to 92%.
View angle have 30/45/90/120degree is available
Competitive:
1. CE & RoHS & TUV SAA approved, Quality Guaranteed
2. Imported original CREE & Bridgelux & Epistar chip, superior light source
3. OEM & ODM welcome, independent R&D ability, patent design.
4. Fast delivery, 2-15 workdays depends on order quantity after payment confirmed
5. Reliable quality & credit, 3-5 years warranty and 50.000 hours lifespan
