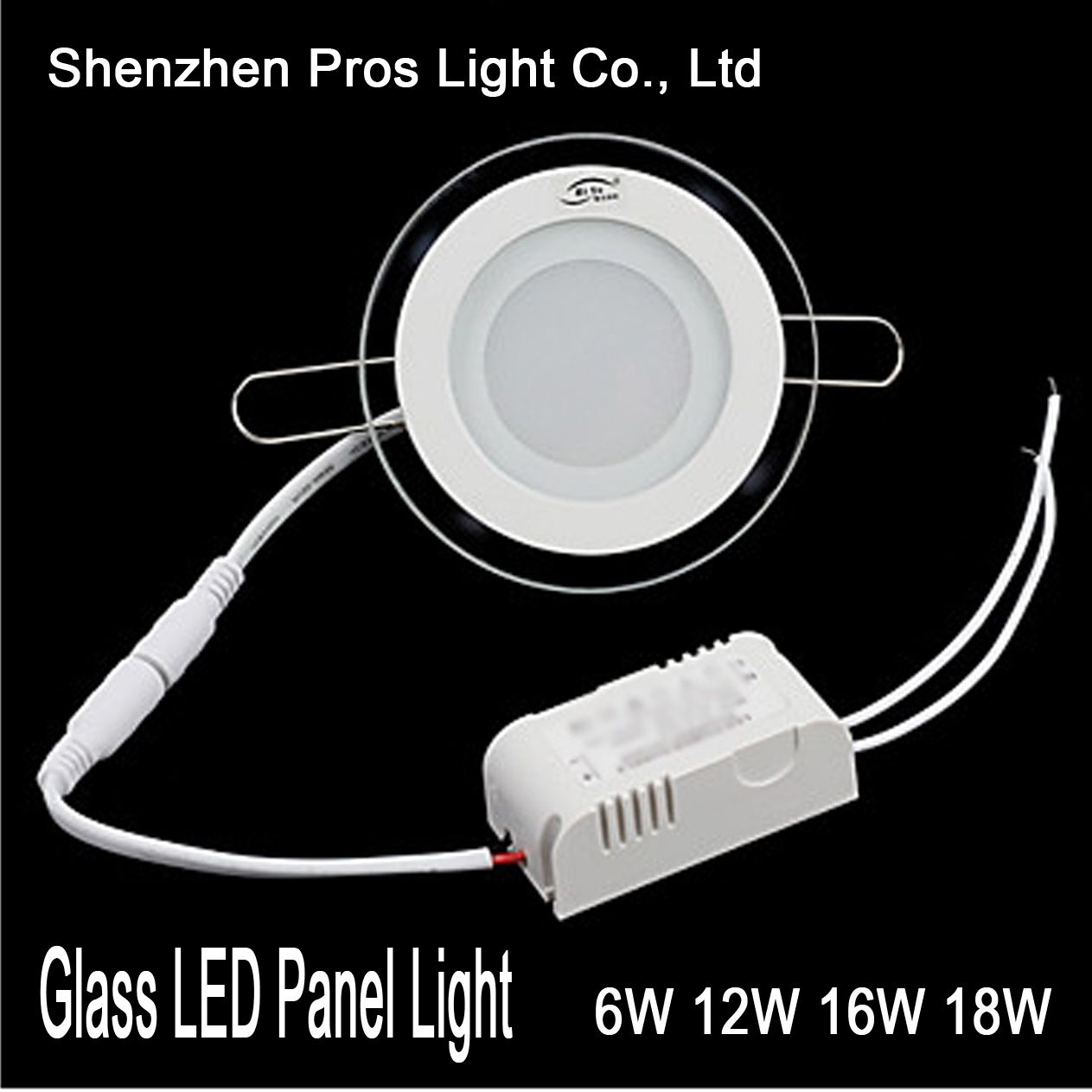

LED panel light/ pane light led glass/ glass led light panel
Main Features:
1. Energy saving, high brightness, no infrared rays, no UV., environment friendly.
2. Instant start, no flicker, no buzz.
3. To use constant current driver.
4. Installation way: Recessed, surface mounted, suspended.
5. Dimmable function available for the led panel lights.
6. The driver fixed on back of out, which make the installation more convenient. 2.
7. High efficiency (95%)constant current driver with built-in overheat protection that remain stable at a wide range of
Input voltages.
8. CE&RoHS certificated.
Typical Applications:
Commercial Lighting
Office Lighting
Warehouse Lighting
Supermarket Lighting
Installation:
Installation instruction:
1. This product is limited to indoor use.
2. Hole size of the ceiling should be the same as the lamp's cutout size.
3. Connect the DC connectors with the lamp and the driver.
4. Insert the pinch to the ceiling, make sure it is fastened.
Caution:
1. Confirm the goods have no damaged during the transportation before using.
2. Packing materials should be stayed away from children, prevent children from playing the plastic bag and small
Accessories lead to suffocate or swallowed.
3. Put away from the children, do not let the children touch the lamp when it is working.
4. Don't cover any things on the products. Put away from the fire or high temperature object.
5. Lay people can not tear down or maintain the product. We have the authority to refuse giving any warranty to the
Products which are repaired without our instruction.
6. Please shut off the power before clean the lamps. Only use the dry dish cloth to clean. Don't use any chemical or
Corrosive material to the lamps.
Recessed Glass LED Panel Light |
Part No. |
PL-P-GR6W |
PL-P-GR18W |
Power Consumption |
6W |
18W |
LED Quantity |
12pcs 5730SMD |
36pcs 5730SMD |
Input Voltage |
AC110-240V |
Size |
DIA 95mm |
DIA 200mm |
Installation |
Recessed |
IP Grade |
IP30 |
Ralated Power |
6W 12W 16W 18W |
Package |
Inner white box |
Pros Light is an established high-tech factory specialized in the research, development, engineering, and marketing of LED based lighting solutions. We have professional engineers always staying at the forefront of LED technology. We are especially well-placed in the field of Power LED thermal management and related lighting solutions.
Our product range:
1. LED Street Light
2. LED Bulb & Spotlight
3. LED Downlight
4. LED Panel
5. LED WallWasher & Floodlights
6. LED Explosion proof Light
7. LED High bay light
8. LED Tube T8
9. OEM & ODM Projects
