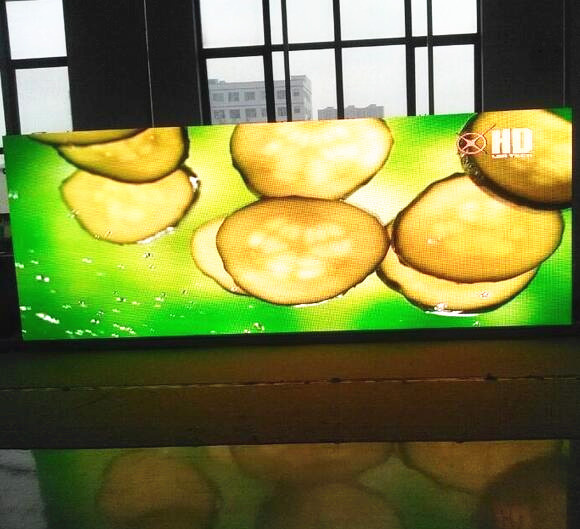

Giant HD P7.62 Indoor Full Color Festival Large LED Display
1. UL, CE&RoHS
2. Easy operater
3. Good after sale-sevice
4. High stability
5. Warranty 3years
Features & Technology Specification:
1. Widely application field and short ROI time. Commercial advertising LED display screen, Stadium, perimeter LED display screen, mobile trailer LED display, LED screen for mobile media, shopping mall, LED display, screen for logo showing, LED display for bank or stock exchange rate showing, LED moving sign for train and bus station, LED display screen for air port, telecommunication LED display screen for information showing and instruction and ect.
2. High contrast ratio: 4000: 1. Which is a pretty high level to ensure vivid image of LED display screen
System.
3. First-level LED chip. Supplied by Nicha of Japan, CREE of USA, and other high strictly selected LED
Chip to ensure long lifespan and high brightness of LED display screen system.
4. Clear Vivid image quality displaying. Even in direct and full-on sunlight day to ensure you attract more
Audience to get short ROI of your LED display screen's investment.
5. Long term brightness. 7500 nits brightness for outdoor full color LED display, 2000 nits brightness for indoor
Full color LED display capacity throught products lifetime of LED display screen.
6. Easy installation and programming. Easy and simple installation interface, use friendly software to ensure
The user programme the LED display screen system.
7. Convenient servicing. Front and rear cabinet access makes maintenance work very convenient and
Low cost to help you concentrate more time and energy on your main marketing promotion business.
8. The list of availabe models of our LED display/screen/panels/signs. pH4mm, pH4.75mm, pH5mm
pH6mm, pH7.62mm, pH8mm, pH10mm, pH12mm, pH12.5mm, pH14mm, pH16mm, pH20mm, pH25mm, pH31.25mm, pH37.5mm, pH40mm, and ect.
| The technology paramete p7.62 mm |
| Number | Item | P7.62 |
| 1 | Pixel pitch | 7.62mm |
| 2 | Size of modual | 488mm X244 mm |
| 3 | Resolution of modual | 64 X32 |
| 4 | Density of pixel | 17222dots/m2 |
| 5 | Pixel configuration | RG or RB |
| 6 | Red wavelength | 625± 2nm |
| 7 | Green wavelength | 525± 2nm |
| 8 | Blue wavelength | 470± 2nm |
| 9 | Colors | 65536 |
| 10 | Best viewing distance | 6-100m |
| 11 | Horizontal viewing angle | 120° |
| 12 | power consumption | 240w/m2 |
| 13 | Brightness | > 3500cd /m2 |
| 14 | Gray scale | 16bits per color |
| 15 | Color temperature | 6500k |
| 16 | Control method | Synchronization & Asynchronization |
| 17 | Driving method | 1/8 or 1/16 scanning |
| 18 | Frame frequency | 60Hz |
| 19 | Refresh frequency | > 300Hz |
| 20 | Working voltage | AC220V/110V± 10% |
| 21 | IP grade | IP20-IP67 |
| 22 | Working temperature | -20° C~80° C |
| 23 | MTBF | > 10000 hours |
| 24 | Life span | > 100, 000 hours |
| 25 | Defects rate. | ≤ 0.00001(Led display line standard< 0.0001) |
Shenzhen Foxgolden Technology Limited, is one of the most impressing Hi-tech enterprises in China. Since 2004, we have been dedicating to the aim that making high quality products, and have been well integrated with R&D, production, project, capital and marketing.
As a professional and market-oriented LED display manufacturer, FOXGOLDEN not only keeps improving on normal LED display screen, enhances the product's cost-effective and overall market competitiveness, but also makes breakthrough progresses on special usages. Our products, with high quality and competitive prices, spread worldwide and earn excellent public reputation from both domestic and overseas market.
Foxgolden provides a full series of LED display products involving various single and dual color, text & image display; Indoor single & dual color, full color screen; Outdoor single & dual color, full color display; DOT matrix module display; Traffic applied product; And series of indoor & outdoor module.
Our company has provided our indoor & outdoor displays for various kinds of locations and events throughout the world. With high quality and perfect after-sale services, our professional products and solutions are highly complimented by the users, and we also earned high credibility from them.
With cultivation for high-quality production management team and project team, high quality products and local maintenance service; We achieved zero complaint in product quality for 3 constant years. That's why Foxgolden has received comprehensive attentions from LED industrial experts these years.
