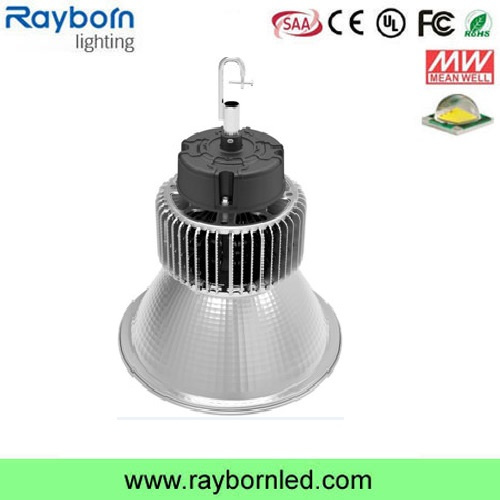

Gas Station LED Canopy Light Industrial 150W LED High Bay Light
150W LED Industrial Light Main Technical Parameters |
Item No.: | RB-GK-150W |
Input Voltage: | AC 100-277V |
Freqency Range: | 50Hz~60Hz |
LED Chip: | Samsung Chip |
Power Driver: | Meanwell HBG |
Power Factor: | >0.98 |
Power Efficiency: | >93% |
LED Power | 150W |
LED QTY: | 170pcs |
LED Working Voltage: | DC 30~36V |
System Consumption: | 156W |
LED Luminous Flux | Warm White | 14500LM |
Pure White | 15900LM |
Cool White | 16300LM |
Viewing Angle: | 25/60/100degree |
MaximumIlluminance | Height 10M | 139LUX |
Height 20M | 35LUX |
Height 30M | 16LUX |
Illuminance Area | Height 10M | Dia.10.5 M points visible |
Height 20M | Dia.21.8M points visible |
Height 30M | Dia.31.6 M points visible |
Illuminance Uniformity: | >0.6 |
Color Temperature | Warm White | 3000K~3500K |
Pure White | 4500K~5500K |
Cool White | 6000K~6500K |
Color Rendering Index | Ra>80 |
|
Light Distribution: | LED points visible |
LED Junction Temperature: | ≤115ºC |
Working Temperature: | -35ºC~55ºC |
IP Grade: | IP54 |
Working Life-span: | 50000 H |
Power Line: | 1.0 mthree line |
Connect Wire | Brown | L |
Blue | N |
Yellow / Green | G |
Chip PC Cover: | Frosted / Transparent |
Certificate | CE/SAA /UL/ROHS |
Net Weight: | 4.7KG |
Industrial led lighting Features:
1. Using single powerful LED(30-500W)as the light source, with unique lighting design of Multi-chip integrated single-module; Select for excellent imported semiconductor chip, it has high thermal conductivity, low luminous decay, pure colors and no heavy shade etc.
2. The unique design of radiator which can combine with the lamp box perfectly, diffuse the heat conduction efficiently, so that reduce the temperature of inside lamp, it ensures the LED longlife-span.
3. The surface of radiator is treated by antiseptic and anodic oxidation; With compact structure and aesthetic appearance.
4. Environment-friendly, no air pollution, no lead-free, no-mercury.
5. With high color rendering index which can show a true color of things for people, kinds of light colors are available, meet the requirement of different environment; Clear up the depressive mood caused by lower or higher color temperature compared with conventional lamp, make more comfortable for people's eyes which can greatly improve people's working efficiency.
6. Adopted advanced constant current controlling techniques; Wide voltage range available and global universal; Overcome the lighting instability caused by electric network of ballast and noise pollution; Avoid the stimulation and tiredness taking from long-time work.
7. Apply for unique surface treatment technology, welldecorated, novel style, easy to install, lower maintenance cost and wide in application.
150w High bay led lighting Application:
Apply to workshop, factory, warehouse, building, highway toll stations, supermarkets, stadiums and other places of lighting required
Competitive Advantage:
1. CE & RoHS & TUV approved, Quality Guaranteed
2. Imported original Cree & Bridgelux & Epistar chip, superior light source
3. OEM & ODM welcome, independent R&D ability, patent design.
4. Fast delivery, 2-15 workdays depends on order quantity after payment confirmed
5. Reliable quality & credit, 3 years warranty and 50.000 hours lifespan
Rayborn Lighting Co., Ltd. is a professional LED manufacturer, focuing on industrial LED Light and commerical LED light research, development, production, sales and service, was in High-end operation and service provider in High power LED. Under the conuntry "saving" policies, we are striving to create environmental protection, energy saving, long life lighting and earned a reputation of being a quality supplier of LED lighting.
We has a group of professional technical R & D team, who can provide the OEM / ODM services according to customers and LED lighting solutions, our factory has passed the authentications of ISO9001: 2000, CE, FCC, RoHS, TUV authentication.
With the direction of High power LED light, industrial LED light and commerical LED light, company developed milti-stlye series of LED lighting, including LED Flood light, LED Tunnel Light, LED High Bay light, LED Ceiling light, LED Tube Light, LED Down Light, LED Strip, LED Bulb, LED spot light.
We warmly welcome domestic and overseas agents and wholesaler to join us, to light up a green planet, for a more environmental earth.
