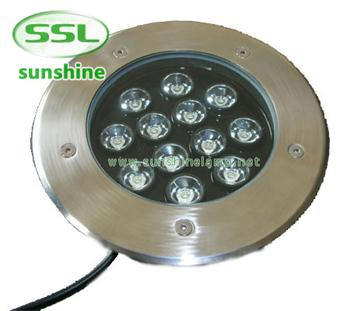

12Watt Outdoor LED ground lights / Lighting
Easy to install, IP67 9W High brightness LED ground Lamp Ce & RoHs approval
Description:
· Die-casting aluminum housing
· AC85~265V input options
· Optical grade diffused lens
· Graduated angle scale
· Bridgelux LED and Meanwell driver
· Low emitted heat
· 120º beam projection
· Up to 70% energy savings
· 9w power consumption
· IP67 Ingress protection
· With a build-in stand alone function and master / slave mode available;
· RGB color mixing with or without DMX control;:
· 64 sub-ID codes addressing panel available in one DMX address
· Current protection to PCB panel and over-heat protection;
· CE, RoHS, TUV, UL compliant
· 3 Year Warranty
Specifications:
Electrical / Optical Characteristics (Ta=25ºC±3ºC)
Tech Date | |
Model | SSL-IGL-12W-01 |
LED Qty | 12pcs |
LED Type | Bridgelux |
LED Power | 12W |
LED Color | Warm white, Pure white, Cool white |
Input Voltage | AC85~265V |
Frequency Range | 50Hz - 60Hz |
Power Factor | >98 |
Power Efficiency | >85% |
Luminous Efficiency | 70~110LM/W |
Color Temperature | WW | 2700-3500K |
PW | 4000-5500K |
CW | 6000-7000K |
CRI | WW | Ra>70 |
PW | Ra>75 |
CW | Ra>75 |
Lamp Efficiency | >85% |
Lumens Output | WW | 950lm |
PW | 1000lm |
CW | 1050lm |
Beam Angle | 120° |
Working Temperature | -40ºC ~ +55ºC |
Storage Temperature | -25ºC ~ +65ºC(25ºCbest) |
Life span | >30000hrs |
Certification | CE, RoHS, FCC |
IP Grade | IP67 |
Housing Color | Black |
Net Weight | 1.5kgs |
Dimension | 85 x 200mm |
package | 44*44*32cm (30pcs/box) G.W.:46kgs |
Applications:
Widely used for decorative lighting in gardens, streets, square, villa, parks, lawns
Decorate super markets, exclusive stores, greening places, and amusement places.
It can make dynamic and beautiful scenes.
