Full Color P3mm High Precision Indoor rental LED display
Application:

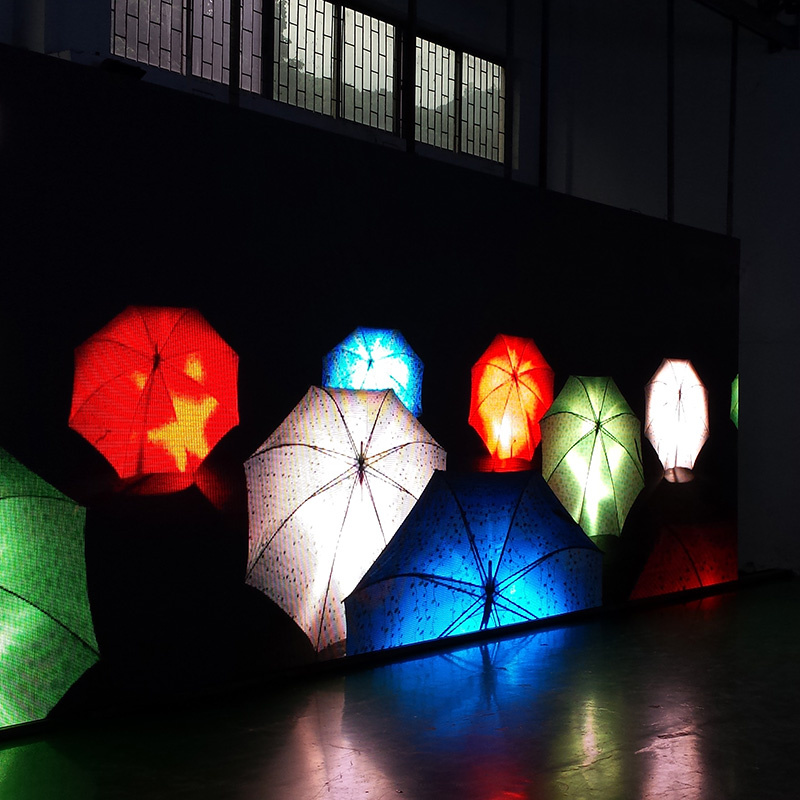

BST's Full Color rental LED displaycan widely used in Art Exhibition, TV show, Tradeshow, Car show, theater, shopping mall, press conference and other events.
Key Feature

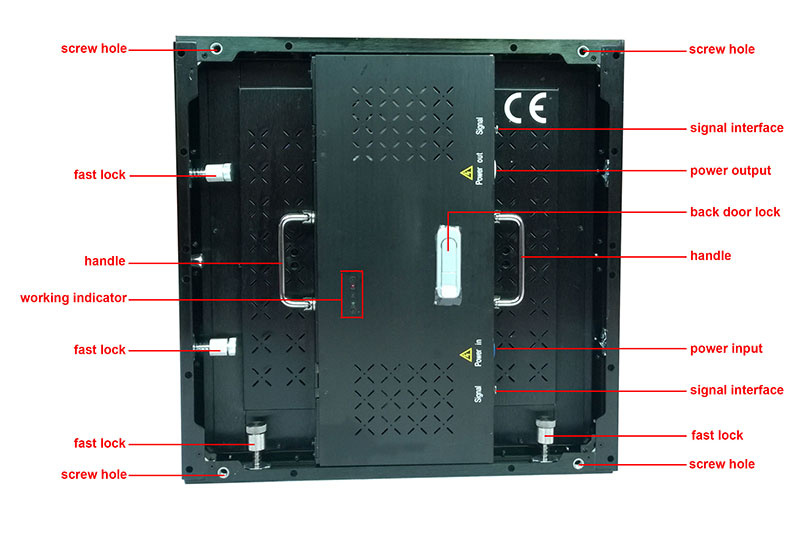

1. Standard Cabinet design and component design adopt industry-standard connector. reduces maintenance time and costs.

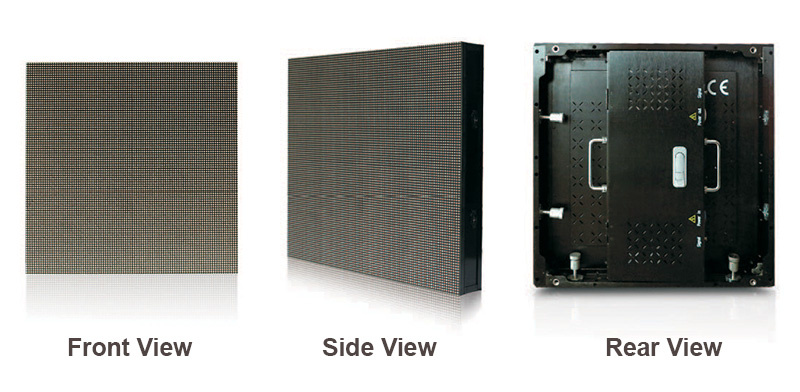

2. Lightweight, Ultra thin and Seamless splicing
thickness is only 65mm, very easy to transport, stock and install. Seamless splicing advance video perfermance.
3. Fanless design, silent operation low heat generated
We adopt low voltage input, low heat generated and fanless design, advance LED Screens reliablity.
4. Wide Viewing angles, High contrast ratio
H160 degree, V100 degree wide viewing angles, black body LED chip
| Model | BST-P3-I |
| Pixel Pitch | 3mm |
| Unit Size | 576mmx576mm |
| LED Type | SMD 2121/black body |
| Pixel / Unit | 192*192 |
| Unit Weight | 8kg |
| Viewing Angle | H160 degree V100 degree |
| Application | Storage-40~60° C, Working-20~50° C |
| Protection Level | For indoor use only |
| Power Consumption | 160W/panel Max |
| 80W/Panel Ave. |
| Driving | 1/16 Scan |
| Frame Refresh | ≥ 60Hz |
| Refresh Rate | 600Hz~2000Hz |
| Processing | 16bit |
| Max Brightness | 1,200nits |
| Power Supply | AC90-240V, 50~60Hz |
| MTBF | ≥ 1, 000 Hours |
| Life Span | ≥ 50, 000 Hours |
| Pixel Failure | < 0.0003 |

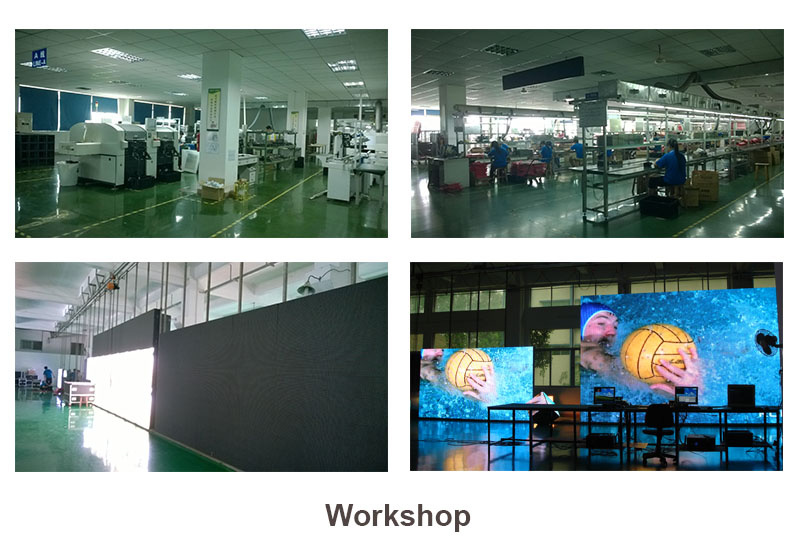

We are a full range manufacturer and LED display solution provider and its ancillary systems worldwide since 2009, headquartered in Shenzhen with a 6000 square meter Production state of the art facilities to cover international demands. We provide a one-stop shopping in the design, production, and distribution of LED display and solution for our domestic and global clients.
Our products Cover indoor, outdoor, fixed, rental and creative LED Solutions for various applications including sport, advertisement, concert, shopping mall, stadium, exhibition or any other indoor and outdoor events that comes to your imagination.
We strictly follow ISO9001: 2008 quality management system and passed CE, FCC, UL, RoHS, CCC etc. All of these factors ensure high quality LED products and effective services.
