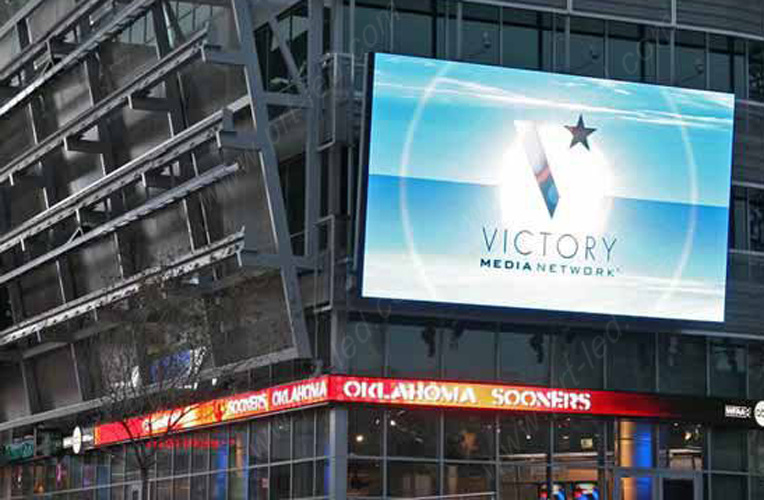

Full Color P14 DIP LED Display Outdoor
Product features:
1. Good cost performance product with high brightness,high refresh rate
2. DIP led encapsulation confirm the high brightness even under sunlight,anti-corrosion,antifogging
3. Good waterproof IP65,long life span
4. Long view distance, High definition,Good uniformity
5. Brightness can be adjusted automatically according to different surrondings,can be set to open and close the screen on fixed automatically
6. Can be fixed on the wall, on the street, on top of building,or be hung for rental to meet the request of live broadcast, live meeting, banquet, party, etc, to display the content what you want, by video, graphics, antimation etc, connect with PC computer or network, also can remoto control with asynchronous system.
7. Widely used for commercial led display, stage led display, traffic led display,rental led display, sports led display etc.
P14 Outdoor Full Color LED Display Main Parameters |
| Visual Characteristics | Unit | Value |
| Pixel Pitch | mm | 14.0 |
| Pixel Density | Dots/sq.m | 5102 |
| Pixel Configuration |
| DIP346 |
| Cabinet Resolution | dots | 64χ48 |
| Refresh Rate | Hz | ≥1800 |
| View Angle(H/V) | ° | 100/45 |
| Brightness | nits | ≥7000 |
| Gray Scale | Bit | 687Million |
| IP Rating |
| 65 |
| Power Consumption(Max/Avg) | W/sq.m | 700/500 |
| Input Voltage(AC) | V | 110~240 |
| Modular Characteristics |
| Cabinet Size(W×H×D) | mm | 896x672 |
| Cabinet Material |
| Iron |
| Cabinet Weight | Kg |
|
| Module Size(W×H) | mm | 224×112 |
| Environment |
| Operation Temperature | ºC | -20~+40 |
| Operating Humidity |
| 10%~90% |
| Driving Mode |
| 1/2 Scan |
| Control Distance | Cat 5E <100m,Single mode fiber<10Km |
PRT OPTOELECTRONIC Co., Ltd is located in Bao'an District of Shenzhen city, specializing in R&D, manufacturing LED display screen and some related LED lighting, owned several new-automatic production lines and advanced test equipments to control quality. And got the international standard certificates of ISO9001-2000 and 14001, CE, CCC, FCC, RoHS.
Our main products include full color LED display, Outdoor LED display, Indoor LED display, Rental LED screen, Stage LED curtain screen, Sport stadium LED screen, Mobile LED screen etc. Also supply LED professional stage light, LED decoration lights, LED panel light, based on some customer' s request.
Our subcompany named PRT International Trade Co., Ltd, who in charge of exporting business, members with rich exporting experience over ten years, guarantee the products to be shipped out smoothly, so we can provide our clients high quality products with competitive prices and excellent service, and obtained a good reputation from our customers.
Our company's operating philosophy, "Quality is everything, Service is the key to success ", because our purpose is to let business done easily and trustingly, to save customer's searching time and purchase cost, solve problem on customer's position, to let everything to be "PERFECT"(abbreviated to"PRT" )!
PRT is a developing company, need hard work of our staffs, also need your large positive support, let us do business and develop together, "sincere cooperation, mutual benefit and common development" is our principle.
You are welcome! Waiting for you!
