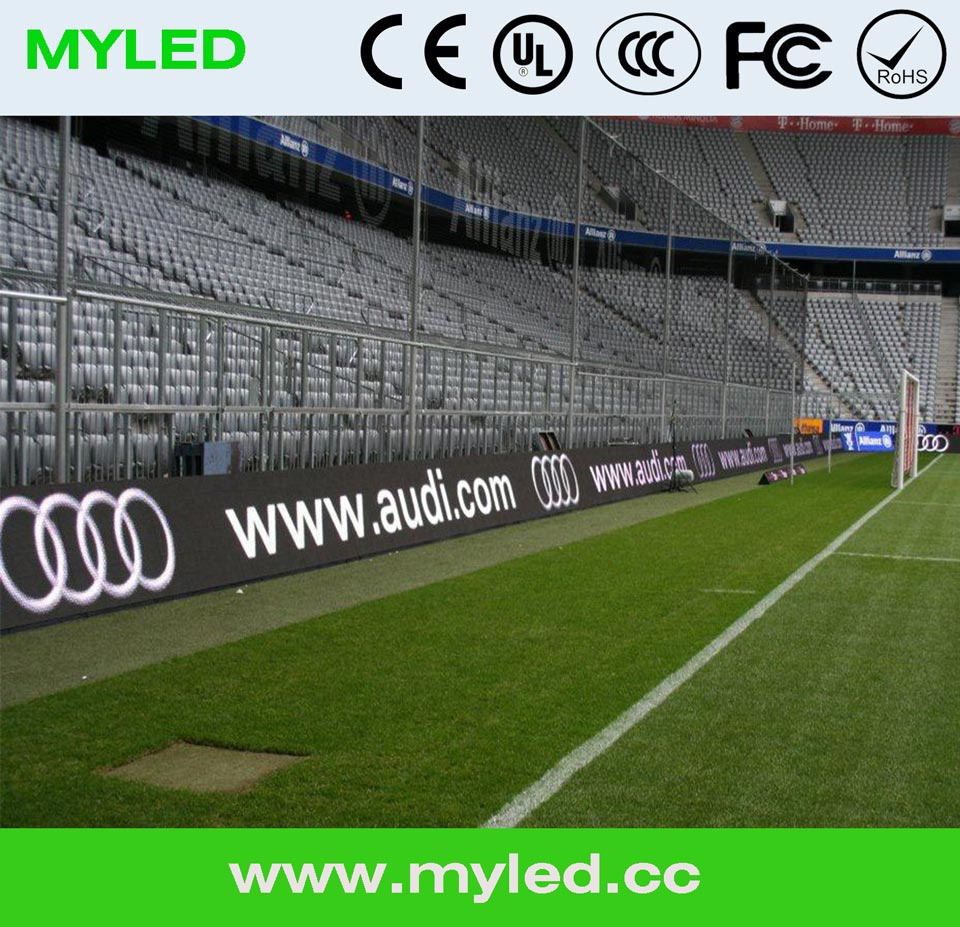

Football stadium led display screen, led stadium tv screen, soccer football stadium perimeter led screen display
Products features:
1. There are rubber mask and rubber top cover that ensures on damage can be exerted by any external impacts.
2. We are using Epistar 346/546 LED lamps with good level of brightness.
3. A patented soft mask over the surface of the screen being installed to ensure no vivid impact damages of any kind can be seen.
4. We use Nuetrik power Connector and Meanwell power supply.
5. We utilize a louver based heat sink to increase the radiation potentials of the system in an overall sense.
6. We utilize a simple, yet high strength mechanical framework as the core for the whole installation.
7. Our solution integrates and encompasses hanging and leasing purpose screens with the soccer field itself into one.
8. We have instituted an interlocking device between modules, easy to manage and install.
9. Each cabinet is equipped with a high strength metallic module for ease of moving and lifting.
10. The cabinet has embarked on a unique triangular design that even if the cabinet itself is in a physical tilting position, its door can be opened with ease.
Main Parameter |
Category |
Parameter |
Pixel Pitch |
16mm |
Optimum Viewing Distance |
16-40m |
Density of Pixel |
3906pixels/ |
Brightness |
≥8000nite |
Module Resolution |
16*8 |
LED Encapsulation |
DIP346 2R1G1B |
Driving Method |
Real Static |
Optimum Viewing Angle |
H: 110°V:50° |
Module Size |
256*128*27.3(mm) |
Module Power |
40w |
Module Weight |
518g |
Cabinet Size |
2304*896*157.3(mm) |
Cabinet Resolution |
144*56 |
Cabinet Power |
2800w |
Cabinet Weight |
154.1kg |
IP Rating |
Front/Rear:IP65/IP43 |
Refresh Rate |
1000-4000Hz(Different according to the different Driving IC) |
Luminance Degradation |
Less than 5% after 1000 hours Ageing test, testing current 30mA, under normal temperature 25ºC. |
MTBF |
>5000hours |
Defective Dot Rate |
<0.0001 |
Life Span |
>100000hours |
Working Voltage |
110-240 AC±10% 50-60Hz |
Working Temperature/Humidity |
-30ºC - +50ºC/10-90%RH |
Storage Temperature/Humidity |
-40ºC - +60ºC/10- 90%RH |
Input Signal |
RF,S-VIDEO,RGBHV,YUV,YC & COMPOSITION,etc |
Connector |
CAT5 Cable(Length≤1430m),Optical link( Length≤20km,Optional) |
Note: The above parameter is just for reference. Changes can be made according to customers' requirements. |
