Home LED Light Products Foldable Flexible LED Display

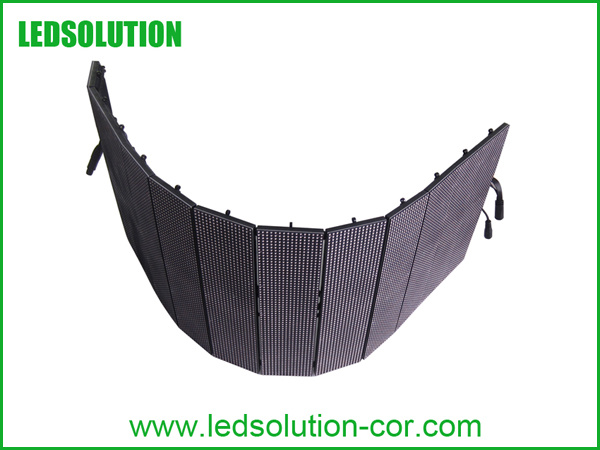

Foldable Flexible LED Display

Foldable Flexible LED Display
Price: Negotiable/Piece
Trade Terms: FOB
Min Order: 10/Piece
Pay Type: T/T,Western Union
Pixel Pitch: 6mm

Panel Size: 384mm*1152mm

Application: Indoor, perfect for Stage

Advantages: Thin, light weight, easy to transport, convenient assembly
ParameterUnitValue
Pitchmm6
Brightnessnits1,800
Color temperaturedeg. K6,500
Viewing angle – Horizontal (50% brightness)deg.140(-70 ~ +70)
Viewing angle – Vertical (50% brightness)deg.140(-70 ~ +70)
Panel weightkg5.8
Panel widthmm384
Panel heightmm1152
Panel depthmm33
Panel areasq. m.0.442
Operating temperature rangedeg. C-30 to +60
Panel Material
Plastic
Ingress protection (front/rear)
IP43
Humidity operatingRH10% ~ 90%
Pixel type and configurationR/G/B3528 SMD
Resolution per panel
64x192
Dot per panel
12,288
Dot per sq. meter
27,777
LED per sq. meter
27,777
Recommended minimum viewing distancem4.5
Recommended best viewing distancem6~18
Colors
281 trillion
Grey scale (linear)Levels65,536 levels per color
Brightness controlLevels100
Contrast ratio
1,000:1
Processing depthbit16
Video frame rateHertz60
Display refresh rateHertz180~3,000
Input voltage (nominal)VAC110 to 240
Input power frequencyHertz50 to 60
Input power (max)Watts/panel250
Input power (typical)Watts/panel100
Lifetime (50% brightness)Hours≥100,000
Red wavelength (dominant)nm620~625
Green wavelength (dominant)nm525~530
Blue wavelength (dominant)nm470~475
Multimedia data format
DVI,MPG,AVI,WMV,RM etc.
Data interconnection
UTP Cat 5/Optical Fiber
Mounting system
Hanging

Prod Model: LS-FF-P6-0.384mx1.152m
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brightness: 1,800nits
Panel Width: 384mm
Panel Height: 1152mm
Panel Depth: 33mm
Resolution Per Panel: 64X192
Mounting System: Hanging
Tube Chip Color: Full Color
Display Function: Video Display
Pixel Pitch: 6mm
Pixel Density: 27,777 dots / m²
Application: Stage Performance
IP Rating: IP54
Certification: RoHS
Pixel Configuration: 3in1 SMD
LEDSOLUTION is a competitive Global supplier Of LED Video Displays, LED Lighting and LED Components Solutions. We are specialized in High quality LED products including research, development, Production and marketing, serving various turnkey Solutions for government projects, corporate image Projects, commercial projects, and release of network Information, etc.

With the number of more than 300 staff, including our Research and Development staff which is a team of Over 80 members, and an accumulation of eight year Experience in the industry, LEDSOLUTION has become One of the world' S leading LED application Manufacturers. We owms totally 5, 000m2 super clean and antistatic workshop as manufacture base in Shenzhen. We have the whole set of international advanced Automatic machines and quipments, including advanced manufacturing equipments and perfect testing devices. We have already passed Switzerland quality system SGS ISO 9001: 2008 and ISO 14001: 2004 environment System certificate, RoHS test, CE certificate, CCC, ETL And other quality certificates, IP67 waterproof and dustproof test, EMC test, high and low temperature, heavy metal test. In May 2008, LEDSOLUTION was rewarded as "2007 China Excellent Company in LED Industry" by three top class national associations and media. In May 2009, LEDSOLUTION was titled the Most Promising LEDEnterprise in China for the Year of 2008 and was Granted the Excellence Award for LED Application In China for the Year of 2008 by China Electronics News, China Optics and Optoelectronics Manufactures Association (COEMA) and COEMA of LED Display Application.

For many years, relying on acuminous market awareness and in line with the enterprise spirit of Diligence, solidarity, innovation, transcendence and the goal of pursuing high technology, high quality

And high benefit, we have made big progress in High Tech field and now possess our own brands And independent intellectual properties. We have established completed market network and after Sales service network in domestic and overseas markets. In China, with 16 branches, LEDSOLUTION has owned very mature network of sales and after service. Our domestic customers are positioned at Top 500 enterprises in the world, such as Bank of China, China Mobile, China Safety Insurance, etc...Our products have been exported to all over the world, such as North America, Europe, SouthAmerica, Middle East Area and Southeast of Asia etc...
