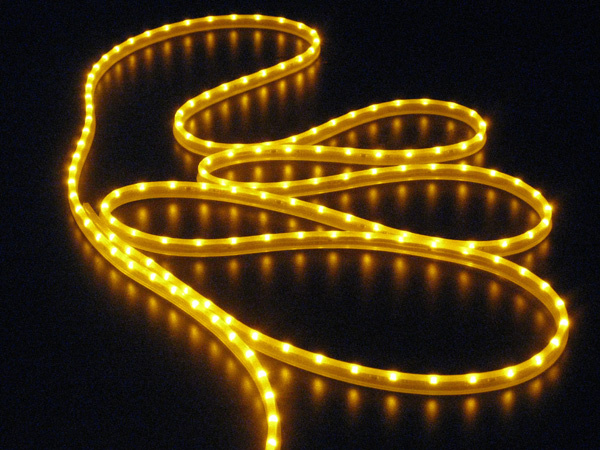

Flexible LED Strip
Part Number: LL-F12T500010X150SE
Application: Accent lighting & architectural lighting
LED type: SMD LED, Side emitting
LED quantity: 60 LED/ meter
Physical dimension: 5000mm (L) *10mm (W)*6mm (T)
Operating voltage: 12VDC
Power consumption: 20mA
Operating temperature: -40degree C ~ +50degree C
Emitting color: W, R, G, B, Y
Luminous output each color: As per datasheet
Beam angle: 60degree
Life span: 35000 hours
Defend grade: IP65
Driven mode: Constant voltage
Weight: 0.45kg/roll
Package: 5m/roll
Remarks: Sideemitting LED flexible neon light; LED Strip Light
Part Number: LL-F12T500010X150SE |
Application: Accent lighting & architectural lighting |
LED type: SMD LED, Side emitting |
LED quantity: 60 LED/ meter |
Physical dimension: 5000mm (L) *10mm (W)*6mm (T) |
Operating voltage: 12VDC |
Power consumption: 20mA |
Operating temperature: -40DegreesC ~ +50DegreesC |
Emitting color: W,R, G, B, Y |
Luminous output each color: as per datasheet |
Beam angle: 60 Degrees |
Life span: 35000 hours |
Defend grade: IP65 |
Driven mode: Constant voltage |
Weight: 0.45kg/roll |
Package: 5m/roll |
Remarks: Sideemitting LED flexible neon light |
With10 years' solid experience and know-hows, LEDEL LIGHTING INDUSTRIAL LIMITED is focused on nothing but one thing---LEDs for Signage lighting, i. e., R&D and manufacturing of led-based lighting fixtures for your signs, especially backlights to your channel letters and light box, through-hole lighting to your channel letters and box letters; flexible and rigid led strips for accent lighting and cove lighting to your showcase, decorative lighting to casino, disco bar, plaza, hotel, etc. For the same application, you may find LEDEL LEDs offers you better cost performance, maintenance free.
For the esteem of LEDEL leds, all led sign modules delivered from LEDEL LIGHTING are CE-certified and RoHS compliant, made of FR4 double-sided pcb (1.6mm thickness for better heat sinking), 10*23mil chip leds with operating current less than 20mA (If powered 10 to 12 hours a day, its lifespan is more than 30000 hours or 3 years' warranty, and its light decay is less than 30%), UL certified lead wire, 100% aging-tested before delivery. More than 40% of LEDEL leds are shining in Western Europe and 20% in North America and 20% in the Middle East.
Whether you are a distributor of sign supply or a sign-maker for an end user, you'll find LEDEL a good partner you are looking for because LEDEL is focused on signage lighting only and our way of thinking is how to improve its quality instead of cut down its cost by cheaper materials.
Lead time for established items is usually 10 to 15 working days since your order is confirmed.
OEMs and ODMs are wanted!
