Home LED Light Products Factory Price 200W SMD Industrial LED Lighting LED Flood Light

Factory Price 200W SMD Industrial LED Lighting LED Flood Light

Factory Price 200W SMD Industrial LED Lighting LED Flood Light
Price: US $ 30-70/Piece
Trade Terms: FOB,CIF,EXW
Min Order: 2/Piece
Pay Type: L/C,T/T,Paypal,Western Union

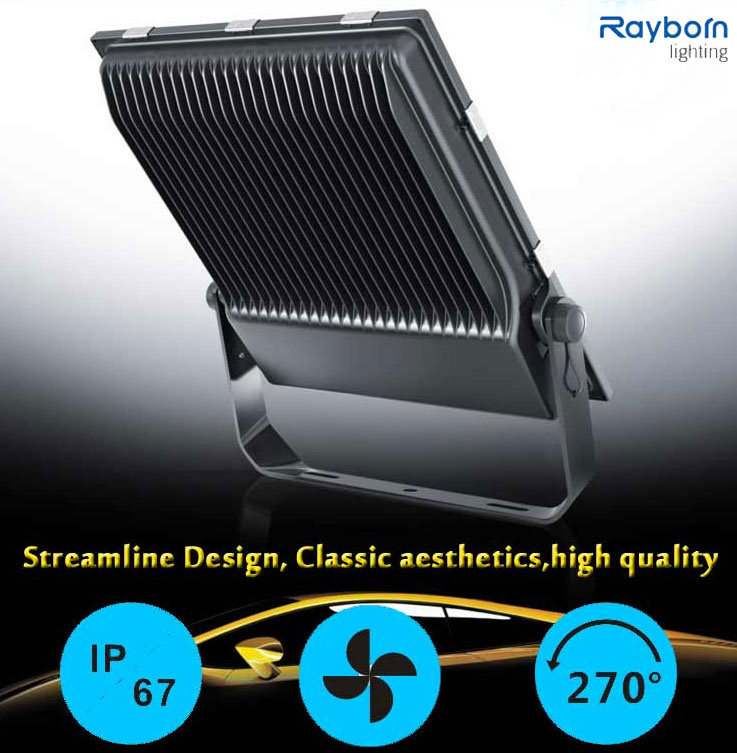

Factory Price 200W SMD Industrial LED Lighting LED Flood light


Specifications of 200W SMD LED flood lights :

200W LED Floodlight Main Technical Parameters
Item No.:RB-FLL-200WS
Input Voltage:AC 100-277V
Freqency Range:50Hz~60Hz
Power Factor:>0.98
Power Efficiency:>93%
Lamp DriverMeanwell HLG
LED Chip:Samsung
LED Power200W
LED QTY: 240pcs
LED Working Voltage:DC30 ~36V
System Consumption:205W
LED Luminous FluxWarm White20500LM
Pure White22100LM
Cool White22576LM
Viewing Angle:120°
Illuminance Uniformity:>0.6
Color TemperatureWarm White3000K~3500K
Pure White5000K~5500K
Cool White6000K~6500K
Color Rendering IndexRa>80
Light Distribution:LED points visible
Light Design:The secondary light distribution reflector
LED Junction Temperature:≤115ºC
Working Temperature:-35ºC~55ºC
IP Grade:IP65
Working Life-span:50000 H
Power Line:1.0 m three line
Connect WireBrownL
BlueN
Yellow / GreenG
MaterialsAluminum+Glass
CertificationCE/UL/SAA/ROHS
The color of the lamp shellBlack
Size:470*360*60mm


LED Chip: SAMSUNG LED Chips which is the most famous Brand in chips field, high efficiency high lumuns and long lifespan, high quality.

Power Supply: SUPER LED flood lights are adopted Meanwell UL approved driver, IP65 and high quality, it improved lights performance. Power efficiency ≥93.

Colour temperature: LED floodlight provide a range of colour temperatures from 3000, 4000 and 6000 Kelvin helping to enhance a building's exterior.

Optics: Optical assembly: hermetically sealed providing IP65. Great light uniformity: Thanks to the advance LED optical systems the fixture maximize the utilization of light onto the target area, improving the uniformity of light.

Housing: Die cast aluminum housing electrostatically sprayed with a polyester powder paint finish, following anti-corrosion priming, and oven cured at 180oC.

Cable: silicon rubber cable for power input. Fasten with screw in the cable gland.

Warranty: 3 years. Do not attempt to take housing apart as this will ruin the seal and void all warranty.

Certification: DLC FCC CE RoHS approval.

Quality Control: Rigorous product testing includes high-low temperature tests, waterproof tests, shockproof tests, burn-in testing, tensile test, salt spray test and more to ensure long-term performance.

Angle Adjustable: Adjustable stainless steel mounting bracket allows you to direct light where you need it.



Features of 200W flood lights LED :

1.  High efficiency to meet rigorous photometric requirements.
2.  System rating 50,000 hours LM80 to reduce maintenance.
3.   LED Flood light has high-pressure cast aluminum electrical box painted electroplating both inside and outside, stainless steel or plating chromium fittings, making the installation flexible and convenient. Scuba patent technology making the optical system precision and efficiency.
4.  LED high efficiency and long life, not only provides a bright, diversity, lasting and innovative lighting environment, but also greatly reduce the purchase system and maintenance costs.
5.  Passed DesignLights Consortium (DLC) qualifications.
6.  Vented housing design isolates LED module from driver for long life and improved performance.
7.  Tempered glass lens protects LEDs and allows for easy cleaning/debris removal.
8.  Adjustable mounting bracket allows you to direct light where you need it.
9.  IP65 Rated.


Competitive Advantages of LED flood lighs :

1. CE & RoHS &GS IP65 approved, Quality Guaranteed.
2. Imported original Cree & Bridgelux & Epistar chip, superior light source.
3. OEM & ODM welcome, independent R&D ability, patent design.
4. Fast delivery, 3-15 workdays depends on order quantity after payment confirmed.
5. Reliable quality & credit, 3 years warranty and 50.000 hours lifespan.


Installation information of flood LED Light :

1.Check all the parts and accessories of LED flood lights;
2.Must cut off the power supply before installation;
3.Make sure the light is fixed tightly to the surface of place for installation ;
4.Connect the power line of light with power supply, then switch on the power.
5.When the flood lamp is working, it must be kept vertical downward.


Applications of  LED flood lights :

1. Advertising board,playground and stadium lighting.
2. Parking lot and airport lighting.
3. Highway and Railway tunnel lighting.
4. Bridge and culvert lighting.
5. Square,garden,and building lighting.



Ageing Test of flood led light :

All our LED flood lights will be tested before shipping,so that we can ensure the quality and light performance.Because we must be responsible to our customers.



Packageing of SMD LED flood lights :

Our individual package maximize protecting the lights from transfer damage in transit.
1.Label on backside of each flood LED lights and your required label is available.
2.One piece led flood Light per carton.
3.This is our regular packing of the led flood lamps,if you need,we can also custom color packing  and put your logo on it.


Shipping of flood LED lights : By sea,air,express (DHL,FedEX,UPS,TNT etc.)
Big quantity advised to be shipped by sea.
Samples advised to be shipped by express.
Samll quantity advised to be shipped by air.



Rayborn Good Service :

1.Your inquirey related to our products or price will be replied within 24 hours.
2.All your inquireies will be well explained by our experienced staff.
3.OEM&ODM,also provide customized service.
4.Distributor ship is available for your unique design and some our current models.
5.We will keep secret for customer sale area,design ideas and all other private information.



Company Information :

Rayborn Lighting Co.Ltd is a professional LED manufacturer, focuing on industrial Led Light and commerical Led light research, development,production, sales and service,was in High-end operation and service provider in High power led.Under the conuntry "saving" policies,we are striving to create environmental protection,energy saving,long life lighting and earned a reputation of being a quality supplier of LED lighting.

We has a group of professional technical R & D team, who can provide the OEM / ODM services according to customers and LED lighting solutions,our factory has passed the authentications of ISO9001:2000,CE, FCC, ROSH ,TUV authentication.

With the direction of High power led light,industrial Led light and commerical Led light,company developed milti-stlye series of Led lighting,including Led Flood light,Led Tunnel Light,Led High Bay light,Led Ceiling light,Led Tube Light,Led Down Light,Led Strip,Led Bulb,Led spot light.

We warmly welcome domestic and overseas agents and wholesaler to join us,to light up a green planet,for a more environmental earth.



FAQ :

Q1: What is the warranty of your led flood lights?

A:  We offer three years guarantee for our LED flood lights,and we will offer you based on your requirements.


Q2: What color temperature we can choose?

A:  We offer LED flood lights in warm white, natural white,pure white and cool white and the range is as follow:(These are our conventional color ranges,we also can offer you other range that you need)

Warm white = 3000K-3500K
Natural white = 4000K-4500K
Pure white = 5000K-5500K
Cool white = 6000K-7000K


Q3: Do your led flood lamps can be used in our country?

A: Yes, Our LED flood lamps have wide input voltage AC85-265V, and it can be customized too.


Q4: How do you help me to save freight cost?

A: We will give you best solution based on your order quantity,and freight quotation can be sent within 1 hours.


Q5: Do you have any MOQ limite?

A: We don't have MOQ,even only one piece LED flood light you can buy.


Q6: What's the lead time?

A: Sample :3-7 days. Mass production: 7-15 days depends on the order quantity.


Q7:How do you ship the goods and how long does it take?

A: We usually ship by DHL,UPS,FEDEX,TNT. It usually takes 4-5 days to arrive. By air,by sea are also acceptable.


Q8: Do you accept Paypal or Western Union for sample order?

A: Yes, we accept Paypal and Western Union as payment term.T/T,LC are also accepted.



Pls don't feel hesitate to contact us if our products hit your requirements.Pls give me one enquiry,I will give you ten surprises.Believe me,I am sincere Charmaine.
Prod Model: RB-FLL-200WS
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Power Factor: >0.98
Power Efficiency: >93%
Lamp Driver: Meanwell Hlg
LED Qty: 240 PCS
LED Luminous Flux: 22576lm
Viewing Angle: 120 Degree
Color Rendering Index: Ra>80
Working Life-Span: 50000 H
Lamp Size: 470*360*60mm
Warranty: 3-5 Years
Color Temperature: Pure White
Lamp Body Material: Aluminum
Projection Distance: >35m
Application: Outdoor
IP Rating: IP65
Certification: UL
LED Chips Brand: Samsung
Power: 200W
Operating Voltage: DC30 ~36V
Input Voltage: AC100-277V, 50Hz~60Hz
Rayborn Lighting Co., Ltd. is a professional LED manufacturer, focuing on industrial LED Light and commerical LED light research, development, production, sales and service, was in High-end operation and service provider in High power LED. Under the conuntry "saving" policies, we are striving to create environmental protection, energy saving, long life lighting and earned a reputation of being a quality supplier of LED lighting.

We has a group of professional technical R & D team, who can provide the OEM / ODM services according to customers and LED lighting solutions, our factory has passed the authentications of ISO9001: 2000, CE, FCC, RoHS, TUV authentication.

With the direction of High power LED light, industrial LED light and commerical LED light, company developed milti-stlye series of LED lighting, including LED Flood light, LED Tunnel Light, LED High Bay light, LED Ceiling light, LED Tube Light, LED Down Light, LED Strip, LED Bulb, LED spot light.

We warmly welcome domestic and overseas agents and wholesaler to join us, to light up a green planet, for a more environmental earth.
