Led light manufacturers and factory

Home LED Light Products Explosion Proof LED Ceiling Light

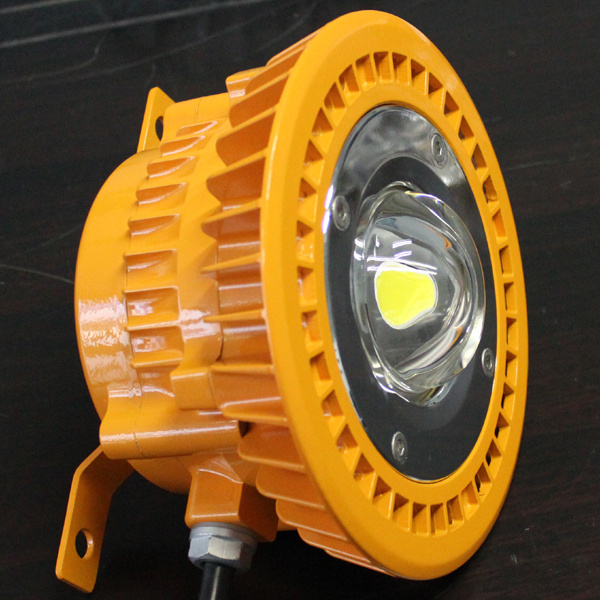

Explosion Proof LED Ceiling Light

Explosion Proof LED Ceiling Light
Price: US $ 120/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Paypal,Money Gram
Explosion proof LED ceiling light

Shenzhen Nibbe Optoelectronic Technology Co., Ltd. Is a high & new tech enterprise, specialized in developing, producing, and marketing LED Flame Proof Lamp, LED tri-proof lightings, LED commercial lightings, explosion-proof electric appliances, lighting fixture installation accessories, and etc. We are the supplier for several famous enterprises, such as SINOPEC, CNPC, CNOOC, and etc. Our products have been exported to Japan, Europe, South America, Middle East, and other more than 20 countries and regions.



1. LED Explosion Proof Light, 50W/60W/80W/100W/120W are available.
2. CE&RoHS, ATEX & CNEX approval. LC(UL&CSA) listed.
3. LED Explosion Proof Light are widely used in oil fields, oil refineries, offshore oil platform, power plant.
4. Patented design for heat dissipation to ensure life of light source up to 50, 000 hours.
5. Two kinds of input voltage AC 90-305V and DC 24V for option.
6. Low power consumption while high light efficiency, power consumption just 20% as much as high pressure sodium lamp, mercury lamp at the same luminous condition, it saves energy more than 70% than that traditional light.
7. Die casting aluminum housing, with anti-static and anti-corrosion coating, high explosion-proof degree of flameproof type; Dust-proof, waterproof; Lens made of tempered glass which is thermal resistance, corrosion resistance, high light transmission.
8. Advanced quadratic light distribution design result in high uniformity of illumination and good lighting quality, clear lighting effect without a double image.
9. Beautiful appearance, several types of installation methods available.


The light source of Nibbe high power LED lamp adopts integrated multi-chip encapsulation and
Very efficient heat-dissipation technology; It saves the energy of over 70% than traditional
Light; The life expectancy is more than 50, 000 hours. With cooperation of several scientific
Research institutes, NIBBE LED lights have made breakthrough on core technology with the
Integration of light source, design of light distribution structure of heat dissipation, circuit drive,
And intelligence control of streetlights. For energy saving, illuminance, light evenness, safety,
Waterproofness, dust-proofness, and explosioproofness, all parameters of them reach relevant
Industry standards.
Housing is die cast in aluminum alloy with high voltage static plastic-sprayed surface
Lampshade of tempered glass and stainless exposed fastener
Guard net surface is dipped after galvanized
Fastened with eyelet bolt, it can be turned on quickly, installed and maintained conveniently
Lampshade may be mounted at request of users
Conduit wiring
Explosion Proof Lamp
1 Luminous body of very high intensity, large viewing angle, good quality and stability
2 Base made of aluminum. Major reduction in power costs. No RF interference and no buzzing noise.
3 Adoption of high quality aluminum alloy, aluminum substrate as heat dispersion material guarantee the stability and high efficiency of LED, and effectively reduce its brightness degradation in the process of application
4 Energy-saving and environmental conservation, long lifespan
5 Solid-state, high shock resistant, strong packaging, convenient to transportation

Primary Competitive Advantages
Green Product, Guarantee/Warranty International Approvals Military Specifications Price, Product Features, Product Performance, On time Prompt Delivery, Quality, Approvals, Reputation, Service, Small Orders Accepted,


Explosion proof LED ceiling light
Application:
Applied to oil fields, oil refineries, offshore oil platform, power plants, gas stations, oil tanks, wharf, tunnel, pumping station, substation, the military base, etc. Zone I and Zone IIHazardous Locations, Zone 20, Zone 21, Zone 22 and II A, II B, II C explosive gas atmosphere.
Parameter Value
Power Consumption 60W/80W/100W/120W
Input Voltage AC 95-305V or 24V DC
Frequency 47-63 Hz
Beam Angle 60° /90° /120° /140°
Explosion-proof Grade Ex d  II B T5
Corrosion-proof Grade WF2
IP Grade IP66
Power Factor > 0.95
Total Harmonic Current < 15%
Lamp Efficiency(%) ≥ 90%
Color Temperature(K) Warm white: 2700-4000K; Pure white: 5000-6500K
Junction Temperature(TJ)) < 65° C
Color Rendering Index(CRI) Ra> 70
Light Effect > 90lm/W
Ambient Environment Temperature: -50° C~55° C; Humidity: 10-90%RH(25° C)
Storage Temperature -50° C-60° C
Lifespan > 50000Hs
Material Aluminum Alloy
Installation Height 4~10m(flood light)/10~30m(project light)
Dimension(mm) 300× 300× 227mm
Net Weight 6.5Kg
Certificate CE, ATEX,RoHS, CNEX, LC(UL&CSA) listed
Prod Model: EPL05
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Ex Mark: Ex D II B T5/ DIP A20 Ta, T5
Input Voltage: AC90~305V
Corrosion-Proof Grade: Wf2
Category: Explosion Proof LED Ceiling Light
Rated Power: 50W/60W/80/W100/W120W
Cable Entry: 8~14mm
Lamp Luminous Efficiency: 90lm/W
CRI: >70
Name: Explosion Proof Lamp
Certification: VDE
Beam Angle: 60??
Lamp Body Material: Plastic
Shape: Round
Shade Type: Glass
IP Rating: IP66
Color Temperature: Pure White
Voltage: 230V
Why Not NIBBE?

Pls kindly check some NIBBE facts as following:

1 NIBBE is one of the largest and leading Explosion-proof Lighting factory in China.

2 Most NIBBE products use high quality Bridgelux COB LED, CREE high power LED light source and MOSO/Mean Well driver.

3 NIBBE has the highest standard and its products can meet Ex d II C T6 GB, Ex d I MB, Class 1, Division 2. C1, D1 and I are under development

4 NIBBE has a wide product range and covers all main kinds of explosion proof lights and is ideal for one-stop sourcing.

5 NIBBE has over 10 global patents.

6 NIBBE factory has been certified with ISO 9001: 2008 and ISO 14001: 2014 system

7 NIBBE is the first Chinese factory with main international approvals, including ATEX, cLCus(UL and CSA standards), GOST, CNEX, MA, CE, RoHS, etc. IEC EX is pending.

8 NIBBE products have 3-5 years warranty.

9 NIBBE is the key supplier of big oil enterprises, such as Conoco Phillips, Chevron, SINOPEC, CNPC, CNOOC, etc.

10 NIBBE has rich oversea experience and has exported to over 50 countries for 5 yrs.

11 NIBBE is one hour drive from Hong Kong and very easy to visit.

Our high level cost control makes sure good quality with competitive price. As a trustful partner of many clients around the world, we will make your global merchandising a pleasure and will be the one you count on mostly in the industry.

Why not buy directly from the original OEM/ODM factory with better price, quality reliability and service?

NIBBE-The Ultimate Explosion-proof Lighting Partner for You!

Besides, NIBBE also makes non-explosion proof lighting, such as LED flood light, LED steet light, LED hay bay light.

FOR COPY OF International APPROVALS, PLS FEEL FREE to EMAIL US.
