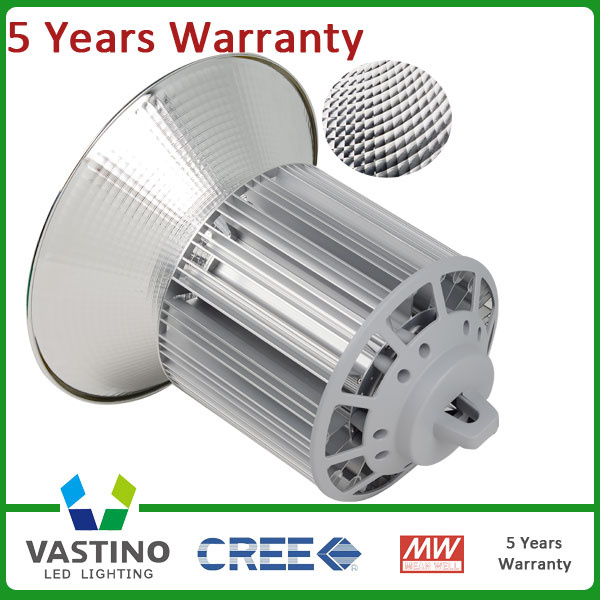

Expert Supplier LED High Bay Light
Product: HL004 Led high bay light
1.Product Model:
| Power | CCT | Model |
| 80W | 2700-6500K | YSHL-805-004 |
| 100W | 2700-6500K | YSHL-1005-004 |
| 120W | 2700-6500K | YSHL-1205-004 |
| 150W | 2700-6500K | YSHL-1505-004 |
| 200W | 2700-6500K | YSHL-2005-004 |
2. Product description:
This product uses the heat pipe caulking, transfer the heat generated by the light source efficiently to pipe radiator, to quickly lower the temperature of the light source, improve product life, professional thermal design, cooling module implied transparent duct inside and outside, forming and heat sink 3D stereo cooling.
3. Product feature:
1.Use SMD3030 Led source,with high thermal conductivity, low luminous decay, pure light color
2.Wide input voltage and constant current charging LED work. Neither required size power fluctuations or power fluctuations,not influence the life and brightness of the lamp ;
3.Unique 6063 aluminum heat sink design combined by high thermal grease, cooling fins vents design, diffuse heat conduction effectively, thereby reducing the temperature of the lamp body, ensuring the life of light source and driver, radiating surface anodic oxidation processing
4.Brass riveting technology, fast heat conduction, thereby reducing the light fades;
5.Green, no ultraviolet, infrared, thermal radiation and mercury pollution;
6.As cold light source, LED lighting does not make goods produced by irradiation fading;
7.High quality reflectors, light color and soft, highlight;
8.High color rendering index, showing the most intuitive and clear, and color temperature optional;
9.Fast response, no flash, little glare, and instantly reach full light output after lighting;
10.Solid light source, seismic and strong, easy to transport and install, safe;
4.Product application
Use: apply to workshop, factory, warehouse, highway toll stations, gas stations, supermarkets, exhibition halls, stadiums and other places need lighting.
nt-size:10.5000pt; mso-font-kerning:1.0000pt; " >
5.Product parameter
1.Basic parameter
| Model | Led source | Color | Height(mm) | N.W(Kg) | IP Grade | Material |
| YSHL-805-004 | 80PCS*SMD3030 | silver
black | 272 | 2.6 | IP54 | 6063 |
| YSHL-1005-004 | 100PCS*SMD3030 | 309 | 3.3 |
| YSHL-1205-004 | 120PCS*SMD3030 | 309 | 3.3 |
| YSHL-1505-004 | 150PCS*SMD3030 | 349 | 3.6 |
| YSHL-2005-004 | 195PCS*SMD3030 | 329 | 6.0 |
2.2.Electrical parameters
| Model | Driver | Power(W) | Input voltage(V) | Efficiency
(%) | Power factor |
| YSHL-805-004 | Meanwell driver | 80 | AC100-240V
50-60Hz | ≥88 | >0.95 |
| YSHL-1005-004 | 100 | ≥88 |
| YSHL-1205-004 | 120 | ≥90 |
| YSHL-1505-004 | 150 | ≥90 |
| YSHL-2005-004 | 200 | ≥90 |
3.3Optical parameters
| Model | CCT(K) | Lumen(lm) | Beam angle(degree) | CRI |
| YSHL-805-004 | 6000-6500
4000-4500
2800-3200 | 8000±10% | 45°/90°/120° | >70 |
| YSHL-1005-004 | 10000±10% |
| YSHL-1205-004 | 12000±10% |
| YSHL-1505-004 | 15000±10% |
| YSHL-2005-004 | 20000±10% |
6.Storage and use environment
| Storage temperature | -20ºC~+55ºC |
| Operating temperature | -20ºC~+45ºC(25ºC BEST) |
| Ambient humidity | 40-90%RH |
7.Life and warranty
| Lifespan | 50000hrs(Lumen maintain70%) |
| Warranty | 3 Years |
8.Packaging Details
| Model | Material | Packing size(mm) | CTN/PCS(PCS) | N.W(KG) | CTN.WEIGHT(KG) |
| YSHL-805-004 | K=A | L255*W255*H330 | 1 | 3.2 | - |
| YSHL-1005-004 | L255*W255*H360 | 1 | 3.9 |
| YSHL-1205-004 | L255*W255*H360 | 1 | 4.0 |
| YSHL-1505-004 | L255*W255*H390 | 1 | 4.2 |
| YSHL-2005-004 | L300*W300*H435 | 1 | 6.8 |
| Reflector | 45°:W500*L500*H470
90°:W575*L560*H420
120°:W575*L560*H285 | 10 | 45°:0.468
90°:0.468
120 :0.437 | 5.5 |
Instruments:
1. Please read the product specifications, confirm compliance with the conditions for use environment on the specifications, before installation;
2. Before the product access to power, make sure the switch is off;
3. Lighting by a qualified electrician to install, in line with IEE wiring electrical standards or national standards;
4. This product is suitable for indoor;
5. Do not use under high or low voltage state in a long-term, it will affect the normal use of the function and life;
6. Do not install used within flammable objects, no matter what the circumstances, the lamp is not to be covered by insulation material or similar;
7. Installation, replacement, cleaning the lamps, must cut off the power, to ensure personal safety
8. When finding lamp not working (self-extinguishing, flashing), check the connection plug contact performance, and power supply voltage , if normal, the fault persists, replaced by a new lamp;
9. When cleaning, use a soft cloth to wipe wring soap stick, wipe with a dry cloth, please do not use banana water until clean light surface volatile substances, do not spray any chemicals on the lamp, the lamp may be discolored or damaged;
10. Do not disassemble the product on their own, in order to avoid damage to the internal components. Disassemble that is not entitled to warranty service.
