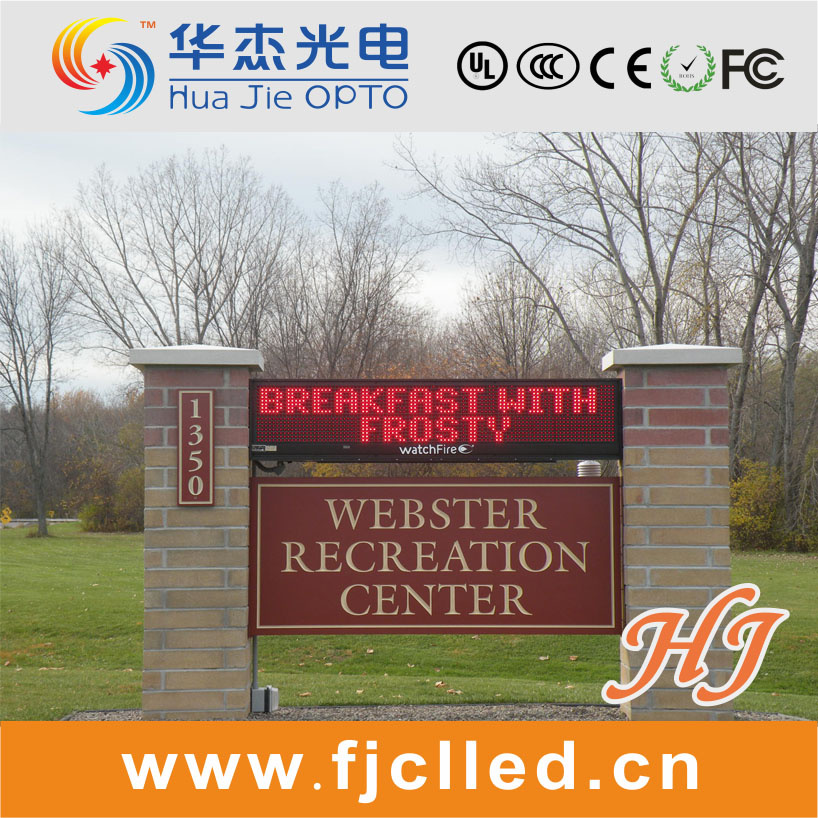

Europe Famous Outdoor P10 Single Color LED Display

Europe Famous Outdoor P10 Single Color LED Display
Price: US $ 300/Piece
Trade Terms: FOB,CFR,EXW
Min Order: 5/Piece
Pay Type: L/C,T/T,Western Union
FUJIAN HUAJIE OPTOELECTRONIC Co., Ltd

Previous name Channel Cailiang (Zhangzhou) Optoelectronics Co., Ltd, with a register capital 30 million RMB. Production base covers 53, 000sqm standard workshop, is equipped with several advanced automatic assembly lines that supported by more than 1200 skilled workers including 12% engineers and technician. Factory offers low cost high performance LED displays, LED modules, LED screens amount to 250, 000sqm per month.

1. Fully Automatic Production Lines
Channel Cailiang owns the entire LED display manufacturing line, encapsulate original Semiconductor to LED chip, then assemble to LED display lighting products.

2. Advanced Production Equipment
SMD/DIP die bolder, SMD/DIP wire Bolder, Auto Machine of Pouring Glue for SMD/DIP LED, Spectrum and Color Separation Machine, LED oven, Wave solder, Reflow soldering, Spectrum electronic and color tester, temperature and humidity programmable tester, luminance meter etc. Are equipped for our LED Product production.

3. Many Certificates Approved
CE, FCC, UL, RoHS, CCC, ISO9001: 2000 certified

4. Strong R&D Team
Huajie Opto absorbs more than 1200 skilled staffs, and including about 150 engineers and technician, which paves the way for R&D for new products and excellent sales service!
Outdoor  P10  LED  Single  Red  Display
Pixel Physical  pixel  pitch:   10  mm
Module Module  resolution:   32  x  16  pixels
Module  size:   320  x  160  mm
Cabinet Cabinet  size:   Customized
Material:   Mild  steel/Aluminium  alloy  (corrosion  resistant)
Power  supply:   3pcs  5V-80A;   Thermal  discharge:   Fan  2pcs
Main  Technical  Parameter Brightness  (  White  Balance):   > 3500  nits
Brightness  adjusted:   256  grade  by  software,   or  by  Auto-optic  induced
Color  temperature(k):   2500  _  4500  (adjustable)
Physical  density:   10000  pixels/m2
Whole  display  flatness:   ≤   0.5mm  juncture
Best  view  distance:   ≥   10m
Best  view  angle:   Horizontal  ± 120° ,   Vertical  ± 60°
Storage  temperature:   -35° C  ~  +85° C  Working  temperature:   -20° C  ~  +60° C
Driving  method:   Constant  driving  current,     Scan:   1/4  Scan
Refresh  frequency:   ≥   3000Hz  ;   Frame  rate:   ≥   60Hz
Humidity(RH):   10  ~  95%
Working  Voltage:     AC  110v/220v±   10%    47~64Hz
Short    circuit    protection:   Yes
Max  power  consumption:   1000  w/m2;       Avg  power  consumption:   350  w/m2
Screen  lifetime:   100, 000  hours;     MTBF:   10, 000  hours
Control  System Operating  system WIN2000/NT/XP/Vista/WIN7
Control  method Synchronization
Signal  interface:     RF, S-Video, RGB, RGBHV, YUV, YC, SDI, HD-SDI, DVI, UXGA, etc.
Communication  distance:   Internet  cable:   ≤   100m/  Fiber  cable:   1000m
Prod Model: CL-P10-1R
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Module Size: 320mm X 160mm
Cabinet: Customized
LED Function: Message, Text, Pictures, Scroling
Brightness (White Balance): 2500-3500nits
Viewing Distance: 5~100m
Best View Distance: 12.5~33mm
Viewing Angles: H120°/V 60°
Gray Scale: 4096 Grades Gray
Refresh Rate: 3000Hz
Warranty: 2 Years
Tube Chip Color: Single Color
IP Rating: IP65
Pixel Pitch: 10mm
Display Function: Text Display
Scanning Mode: 1/4 Scan
Certification: ETL
Pixel Density: 10000 dot / m²
Average Power Consumption: 220W / m²
Pixel Configuration: 1r
Channel Cailiang (Zhangzhou) Optoelectronic Co., Ltd. is one of the biggest LED manufacture in China. Our factory have 30 PCS production line for Outdoor DIP Modules, 5 PCS line for Indoor SMD products and more than 1, 500 skilled workers. Our R&D team are comprised of a crew of 10% of total staff and most of engineers have more than 5 years experience in LED industry, which great support our new products developing or customized products according to customers' requests.

Our Main Business is Produce various LED Display Module and LED Display Panel for Customers' assemble. It' s avaliable supply all the components for assemble LED Display or LED Message Signs. Besides, we focus on offering whole proposal for LED Display Projects and Solutions. Not only for regualr type, we have continuously developed several Profiled Screens and achieved some proud success in developing Traffic Wireless Solution Display Screens.

In order to design and develop higher quality products, our R&D team always tries best to meet the US&Euro-standards for Electronic products, as well as to fulfill the special requirements from customers. Our products have been approved the German TUV- EMC Certification and Euro EN12966 Certification, and we have also achieved ISO9001: 2000, CCC, CE, FCC, RoHS Certifications.

with perfect designed products, integrated solution including both hardware and software, and superior product and service guarantee, Cailiang has been highly praised by domestic and overseas customers. We have been shipping qualified products and services to more than 50 countries and regions all over the world, such as in the USA, Japan, Russia, Sweden, Turkey, Poland, France, Israel, Argentina, Spain, Italy, etc.

We value the power of cooperative team work, we take "Quality & Honesty" as our belief, and "Being the Largest Global Supplier of LED display Solution" as our goal.

"Channel Cailiang" Sincererly Invite your participation!
