* Φ:>140LM/W Ra:>80 SCD<4
* LED:SMD 2835 2016 4014
* TH:7.5mm 9.5mm
* Dimmable,CCT,adjustable and RGB
* Silergy IC+Ruby capacity+Infineon model tube
Contacts:
Alice M: +86 13266797957
.
What is the details of our led panel lamp?
* CRI >80, finished luminous efficiency >85Lm / W/90lm/w;100lm/w;110lm/w
* LED passed LM80 test, finished SCD <6;
* Energy saved up to 50%, high intensity
* 3-years lifespan
* No electric wave
* No such hazard that mercury or lead enters the environment
* No RF interference
* TUV / ETL /CETL/ CE / RoHS certification
What is the feature of our led panel lamp?
* Main cooling structure using anodized aluminum and high transmittance acrylic light guide combination
* Ultra-thin design, good lighting effects, but also brings a feeling of beauty
* Uniform plane glow, illumination uniformity, soft light, comfortable but not bright, also can relieve eye fatigue
What is the application of our led panel lamp?
*. Shop display windows, restaurants, hotels and other indoor decoration lighting; Exhibition hall, art room, museum, office, reading the local lighting; Night bars, card access, etc. KTV atmosphere lighting; Jewelry, silver jewelry and Fashion lighting;
*. Local lighting: Corridor, bathroom, garage, parking-lot lighting, factories, security lighting of residential area, indicating lighting, etc. Realized the Green Energy-saving environmental protection.
Packing & Shipping ,Trade Terms:
Shipping
1. FedEx / DHL / UPS / TNT for samples, Door-to-Door;
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
4. Delivery Time: 3-7 days for samples; 5-25 days for batch goods.
Payment Terms
1. Payment: T/T, Western Union, MoneyGram,PayPal; 30% deposits; 70% balance before delivery.
2. MOQ: 1pcs
3. Warranty : 3 years
4. Package Informations: 5pcs per box /The volume of the box is 71.5*170*720mm
Why Choose us?
1.We are a factory manufacturing led indoor lamps,best production capability ,best quality control, Best Service .
2.Inspected by the Inspection Institution of Bureau Veritas Certification.
3.100% QC inspection Before Shippment.
4. CE/ETL/CETL/FCC listed,competitve price.

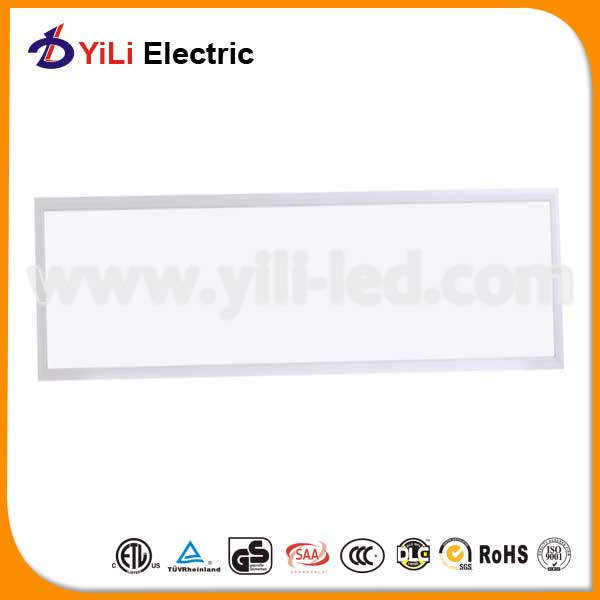

1200*300mm Side-emitting Panel Light
* Main cooling structure use anodized aluminum and high transmittance acrylic light guide combination;
* Ultra-thin design, good lighting effects, but also brings a feeling of beauty;
* Uniform plane glow, illumination uniformity, soft light, comfortable but not bright, also can relieve eye fatigue;
Features
* Φ:>140LM/W Ra:>80 SCD<4;
* LED:SMD 2835 2016 4014;
* TH:7.5mm 9.5MM;
* Dimmable, CCT, adjustable and RGB;
* Silergy IC+Ruby capacity+|Infineon model tube.
Parameter | PL-40W-123-28-FTG-01 | PL-40W-123-28-FTG-01 | PL-40W-123-28-FTG-01 |
Model |
Watt(W) | 40 | 40 | 40 |
Lumens(lm) | 4000 | 4000 | 4000 |
Beam Angle(deg) | 120 | 120 | 120 |
CCT(K) | 2700 | 4000 | 6000 |
CRI(Ra) | >80 | >80 | >80 |
Energy Efficiency Classes | A+ | A+ | A+ |
PF | ≥0.95 | ≥0.95 | ≥0.95 |
Efficiency Lm/W | >100 | >100 | >100 |
Voltage(V) | AC100-240 AC100-277 | AC100-240 AC100-277 | AC100-240 AC100-277 |
Frequency(Hz) | 50/60 | 50/60 | 50/60 |
Lifespan(hrs) | 25000 | 25000 | 25000 |
Working Temperature(ºC) | -20~40 | -20~40 | -20~40 |
Storage Temperature(ºC) | -20~85 | -20~85 | -20~85 |
