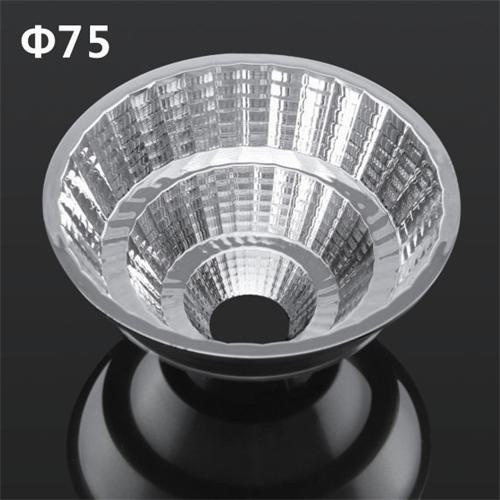

Home LED Light Products Energy Saving LED Light Reflector Gr-7515 Plastic Lamp Cup for Downlight & Spotlight

Energy Saving LED Light Reflector Gr-7515 Plastic Lamp Cup for Downlight & Spotlight

Energy Saving LED Light Reflector Gr-7515 Plastic Lamp Cup for Downlight & Spotlight
Price: US $ 0.61/Piece
Trade Terms: FOB,EXW
Min Order: 500/Piece
Pay Type: T/T

Advantages
WHY CHOOSE OUR REFLECTOR:
1. UV coating
 2. Light spot concentrated
 3. Vacuum aluminum plating
 4. Environment protective with RoHS
 5. Energy saving, high light reflecting effect
 6. Safety: heat resistant scope of COB holder--180ºC~200ºC
 7. Heat resistant scope of reflector--130ºC
Product Description
Energy saving COB reflector GR-7523 plastic cover for downlight, spotlight and ceiling light

1) Type

Optical grade PC reflector

2) Model Number

 GR7515

3) Material

 PC

4) View Angle(Fwhm)

15°

5)  Reflective Efficiency

 90%

6)  Dimension

 Φ75x 40 mm (diameter*height)

7) Use Temperature

 -35ºC~+120 ºC

8) Logo

 As your request

9) Certification

 CE, RoHS

10) Packing

 Bubble bag and box

11) Payment Terms

 T/T

12) Port

 Shenzhen, Zhongshan

13) Lead Time

3-7 days for sample order,7-15 days for mass product

14) Application

Spotlight, down light, track light ..ect

Specification
Antioxidant COB  reflector LED light reflector China supplier
Specifications:
A. Dimension: Φ 75*40*21.3
B. Fwhm: 15°
C. Material: PC
D. Led series: COB led

COB Light Source


CREE
CITIZENSHARPLUSTROUSLIMINUSPHILIPSEDISONLEXTAR
CXA 15XXCLL0201215C113CXM-71203HM05Nimbus 1500
CXA 18XXCLL0302024L613 L713CXM-111204HM09Nimbus 2000
 CXA 25XX

CCN15CXM-141205HM16



CCN20CXM-181208HM30

Company Information
ABOUT US
Zhongshan GR optics Co., Ltd. is the one of companies engaged in researching, developing and producing LED reflector and optical lens. Our company have a highly experienced R & D team for high-tech optical and mould design
 We have ultra-precision mould making equipment, injection molding machines and a 3000 square meters dust-free workshop which constructed a LED optical accessories production system including independently design, research, manufacture and molding.
 Following trend of energy-saving and environmental development, GR optics has technical co-operation with local college and international famous brand in the area of LED light source technology and producing various LED lighting optical accessories which meet the need in all field of LED illumination
 Keeping the faith of "Excelsior, Service-oriented", GR optics builds market and gain trust amount customers by putting quality prior of everything. That is how we won favorable comment from extensive customers.
We have been cooperating with many well-known domestic lighting enterprises and chip merchants and supply them a series of completed and reliable optical solutions.
 GR optics has been one of the leading secondary optical solutions suppliers in China.
Prod Model: GR-7515
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application: Downlight, Spotlight
Endure Temperature: -35°-120°
Surface Treatment: UV Coating
Surface: Vacuum Aluminum Plating
Warrantly: 1 Year
Material: PMMA
Style: Modern
Shape: Round
Certification: RoHS
Zhongshan GR optics Co., Ltd. Is the one of companies engaged in researching, developing and producing LED reflector and optical lens. Our company have a highly experienced R & D team for high-tech optical and mould design

We have ultra-precision mould making equipment, injection molding machines and a 3000 square meters dust-free workshop which constructed a LED optical accessories production system including independently design, research, manufacture and molding.

Following trend of energy-saving and environmental development, GR optics has technical co-operation with local college and international famous brand in the area of LED light source technology and producing various LED lighting optical accessories which meet the need in all field of LED illumination

Keeping the faith of "Excelsior, Service-oriented", GR optics builds market and gain trust amount customers by putting quality prior of everything. That is how we won favorable comment from extensive customers.

We have been cooperating with many well-known domestic lighting enterprises and chip merchants and supply them a series of completed and reliable optical solutions.

GR optics has been one of the leading secondary optical solutions suppliers in China.
