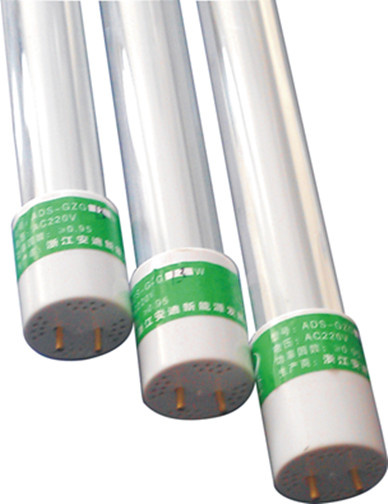

Energy Saving Induction Lamp of LED Tube Light
A Conception
Tube in tube is a new type of high efficient energy saving lamp, which is mainly used to replace the traditional T8 fluorescent lamp, The structure of Tube-in- tube energy saving lamp applies the design of combining the inner tube and outer tube together. The inner tube is similar to T5 tube. Saving 40-60%. The outer tube is a glass tube with constant temperature and explosion protection.
B Feature
Model No: AD-G11W/ 15W/ 21W/ 28W
Brand Name: ANDI
Place of Origin: LINAN, ZHEJIANG, China (Mainland)
Shape: Straight
Light Source: T8
Cap Type: G11/ G15/ G21/ G28
Watts(W): 11/ 15/ 21/ 28
Convince Of T8: 20/ 30/ 40/ 55
Voltage(V): AC160-265
Frequency(Hz): 50
Length(mm): 600/ 900/ 1200/ 1500
Power Factor: 95%+
Luminous Efficient(lm/W): 95
CRI: Ra>80
Color Temperature: 2700K / 3800K / 4000K / 5000K / 6400K / 7500K
Average Life(hrs): 30000
Guarantee Term: 2 YEARS
C Advantages
1. Replace the T8 fluorescent lamp directly and can save more than 60% energy.
2. The life span is 30, 000 hours which is more than three times than T8 fluorescent lamp.
3. Adopt pure tri-phosphor light source, color show index Ra>80, the lighting has increased 15%.
4. Tube in tube structure can moistureproof, dustproof and pollution prevention.
5. DIY Tetrad structure, the inside tube contains standard illuminant which can be recycled.
6. Can be replaced and installed directly.
7. Once turn on the lamp, it will brighten up without noise and flicker.
8. Healthy, Safety, Environment: No flicker and less glare provide maximum
Eyesight protection, choice of color temperatures near to natural daylight increases sagety, productivity, performance outstanding color performance for life less CO2 output and no mercury waste to disposion.
|
Model |
Power(W) |
Length(MM) |
Color temperature(K) |
Replace Objects |
|
AD-G11W |
11 |
600 |
2700/3800/4000/5000/6400/7500 |
T8-20W |
|
AD-G15W |
15 |
900 |
2700/3800/4000/5000/6400/7500 |
T8-30W |
|
AD-G21W |
21 |
1200 |
2700/3800/4000/5000/6400/7500 |
T8-40W |
|
AD-G28W |
28 |
1500 |
2700/3800/4000/5000/6400/7500 |
T8-55W |
Electrodeless induction lamps also called as induction lamps and electrodeless discharge lamp, it is an kind of energy saving lamps, mostly use for street lights, tunnel lights, high bay lights, low bay lights and flood lights.
Zhejiang Andi New Energy Development Co., Ltd., is a high and new technology company, specializing in developing, manufacturing and selling new-type low frequency electrodeless discharge Lamps ( induction lamps) and LVD lamps with great color rendition, high electnic light source, energy-saving and environmental protection. It is a brand enterprise meeting Chinese national standards, having its own R&D and proprietary intellectual property right.
