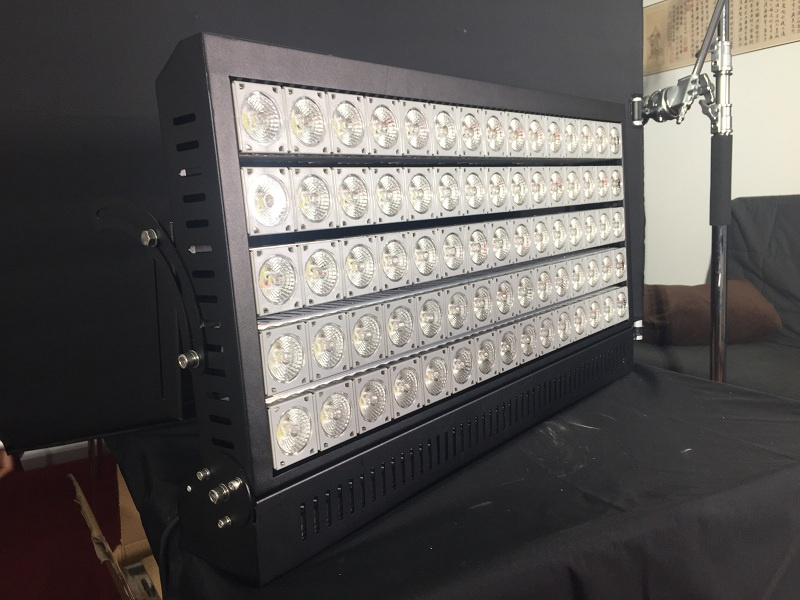

Energy efficient CE&RoHs approval Wall pack light
Model No. | Power | Light efficiency | Lumen (White) | Equal Lumen (White) | Replacement MH | Light Body Size | Working Voltage | Lamp Holder |
|
LS-WPK80 | 80W | 140lm/W | 11200 | 22400 | 100w | 236*238*100 | 90-295V AC | Wall Mount |
LS-WPK100 | 100W | 140lm/W | 14000 | 28000 | 250W | 286*238*100 | 90-295V AC | Wall Mount |
LS-WKP120 | 120W | 140lm/W | 16800 | 33600 | 250W | 336*238*100 | 90-295V AC | Wall Mount |
LS-WPK150 | 150W | 140lm/W | 21000 | 42000 | 250W | 436*238*100 | 90-295V AC | Wall Mount |
LS-WPK180 | 180W | 140lm/W | 25200 | 50400 | 400W | 336*303*100 | 90-295V AC | Wall Mount |
LS-WPK200 | 200W | 140lm/W | 28000 | 56000 | 400W | 386*303*100 | 90-295V AC | Wall Mount |
LS-WPK240 | 240W | 140lm/W | 33600 | 67200 | 400W | 436*303*100 | 90-295V AC | Wall Mount |
LS-WPK300 | 300W | 140lm/W | 42000 | 84000 | 800W | 536*303*100 | 90-295V AC | Wall Mount |
LS-WPK360 | 360W | 140lm/W | 50400 | 100800 | 800W | 636*303*100 | 90-295V AC | Wall Mount |
LS-WPK400 | 400W | 140lm/W | 56000 | 112000 | 1000W | 536*368*100 | 90-295V AC | Wall Mount |
LS-WPK450 | 450W | 140lm/W | 63000 | 126000 | 1000W | 786*303*100 | 90-295V AC | Wall Mount |
LS-WPK480 | 480W | 140lm/W | 67200 | 134400 | 1000W | 636*368*100 | 90-295V AC | Wall Mount |
LS-WPK600 | 600W | 140lm/W | 84000 | 168000 | 1500W | 786*368*100 | 90-295V AC | Wall Mount |
LS-WPK720 | 720W | 140lm/W | 100800 | 201600 | 2000W | 786*433*100 | 90-295V AC | Wall Mount |
Features
One stop Solution for Outdoor high power Illumination
Premium Precise Optical Lens System, 2-10 times brighter than conventional light
Super Slim Body, Easier Installation and maintenance
Maintainance on Single LED
2nd Generation Direct Heat Path Technology, 2-5 times better stability
Anti-Glare System, suitable for any occasions
IP54, underwater use support
5 Years Warranty!
More details
| Light Source | epistar | LED Luminous | 120lm / Watt | |
| Efficiency | |
| | | | |
| | | | | |
| Input Voltage | 90-265VAC 50-60HZ | Life Span | ≥80000 hours | |
| | | | | |
| Power Factor (PF) | ≥0.95 | Work Temperature: | - 25 °C ~ 55 ° C | |
| | | | | |
| Power Efficiency | ≥90% | Storage Temperature: | - 40 °C ~ 80 ° C | |
| | | | | |
| Color Index(CRI) | Ra>65 | Working Humidity | 10 % ~ 90 % RH | |
| | | | | |
| Light Angle | 10° 15° 24° 38° | IP Rating | IP54 | |
| 60° 75° 90° 120° | |
| | | | |
| | | | | |
| | 2700-3500K | Light | | |
| Color Temp: | 5000-6500K | 30% | |
| Attenuation(80000h) | |
| | 6500-7500K | | |
| | | | |
| | | | | |
Packaging & Shipping
1.carton packing
2.wood packing
More details
