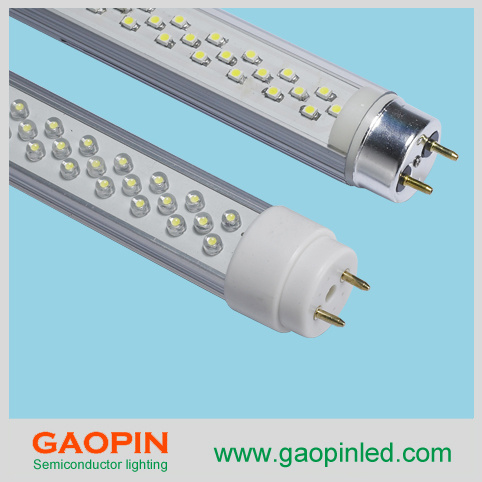

Energy saving 15W LED tube light, energy saving light, LED tube light
Scope of application:
Hotel, office, home, shop, market, exhibition hall, conference room, school and the other indoor commercial lighting.
Features:
1. Good heat dissipation: Using high thermal conductivity aluminum alloy as the main heat dissipation, good heat dissipation performance.
2. Easy replacement: Replace the traditional tube light directly.
3. LED sources: Applied with the highest-level LED, low brightness, attenuation and lifespan is over 50000hrs
4. Optional multi-input voltage: Wide-voltage design AC input voltage, Adapt to different voltage range.
5. Environmental protection: No any harmful radiate spectrums such as UV or infrared ray included
1. Power: 15W
2. Length: 120cm
3. DIP LED quantity: 276PCS
4. Luminous flux: 1496lm
5. Luminous Intensity: 265lux
6. Input voltage: AC85-300V
7. Luminous efficiency: 80-90 LM/W
8. Equal to conventional fluorescent: 55W
9. Working frequency: 50-60Hz
10. Ambient temperature: -20-85degree
11. Ambient humidity: More than 65%
12. Color rendering index: 63-84Ra
13. Power factor: More than 0.95
14. Constant current Error: Less than 2%
15. Microwave/Noise: Less than 240Mv
16. Static power: Less than 0.1W
17. Color temperature: 3000-20000K available, such as Warm white: 3000-3500K, Day white: 6000-6500K, Cold white: 6500-7000K.
18. Other color available: Red, green, blue, yellow, RGB etc,
19. Adopt super brigthness DIP or SMD(3258) LED as light source, Chip brand: Epistar (made in Taiwan)
20. Material: Aluminium alloy + PC(clear PC, frosted PC and strip PC available)
Installation:
Standard installation
Connect directly to AC power, this is th most saving enrgy mode
Replacing installation
If there is a startr on the old fluorescent light fixture, remove the starter.
Remove electronic ballast
If there is no starter on the fluorescent light fixture, remove the electronic ballast.
Attention:
Please use and install according to the instructions.
Do not hit or press with heavy substance
Please handle and transport gently.
Do not twist the light when power is on.
The warm light tube is normal when the power is on
Do not touch the lamp when power is on.
How to choose LED lights:
1. First, to ensure that th product voltage for your country voltage, choose the specifications you want to purchase and operating temperature, the above project to ensure that products can basically apply
2. Select the light color, this is to adapt to customer habits.
3. About he quality of LED products: First, selecting the LED chip, because LED lighting is made of LED chips, because the lighting illumination is decided by chip, my company is using Epistar chip, use SMD 3528 the chip has the advantage of good quality and high brightness, (other brands of chips according to customers requirements)
4. And then look at the brightness of product parameters, such as luminous, illuminance Do not think that bigger is better. The most suitable is best for you, too brigtht to makes you comfortable.
5. LED chip number, the quantity of LED are relations to the power consumption and brightness.
6. In addition to the above thing affect the quality of LED lights, the most important thing is the LED assembly, life have a relationship with the mold design, the cooling capacity of products is relay on model design, our company is to open own model, you can refer to our physical picture!
7. If you have any question, please chat with me right now, I will try my best to serve you!
| Item NO. | Power | Length
(mm) | Luminous
(LM) | LED
(pcs) | Luminous Intensity(lux) |
| GP-L05RGAB | 5W | 344 | 396 | 72 | 110 |
| GP-L08RGAB | 8W | 600 | 792 | 144 | 150 |
| GP-L10RGAB | 10W | 900 | 1040 | 182 | 200 |
| GP-L12RGAB | 12W | 1200 | 1201 | 216 | 220 |
| GP-L15RGAB | 15W | 1200 | 1496 | 276 | 265 |
| GP-L18RGAB | 18W | 1200 | 1768 | 330 | 285 |
| GP-L22RGAB | 22W | 1200 | 2112 | 384 | 290 |
| GP-L25RGAB | 25W | 1200 | 2380 | 432 | 420 |
| GP-L33RGAB | 33W | 2400 | 3300 | 600 | 450 |
