Home LED Light Products Economical Type 6m 20W Solar LED Street Light

Economical Type 6m 20W Solar LED Street Light

Economical Type 6m 20W Solar LED Street Light
Price: US $ 442-445/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 20/Piece
Pay Type: L/C,T/T,D/P,Paypal,Money Gram

Brief Specification for 6M pole 20W Solar LED Street Light design based on Africa's average solar radiation condition 5.0KWH,Lighting hours: 11-12 Hrs/Day*3-4 days
1. Pole Height: 6M, Diameter: 70*170mm, Thickness: 3.00mm
   Plastic coated on HDG pole, resistant to wind: 150KM/H
2. Applicable light source: 20W LED, 3600LM,Lifespan:>80000Hrs.
3. PV Module: High efficient 100W*1PC.
4. Gelled battery: 100Ah*1PC, Fee Maintence, Deep Cycle, Sealed Type.
5.Battery Box: Engineer Plastic, Bury under ground
6. Controller: 15A/12V Automatic control by microcomputer

      Detailed Specification for 6M pole 30W Solar LED Street Light

Part Name and Lifespan

Technical Specification

Solar Panel:
Lifespan:20-25 years

100W*1PC Polycrystalline. High Efficiency. A-class
Adding Aluminum Frame, Tempered Glass.

Gelled Battery
Lifespan:5-8 years

100Ah/12V*1PC, Gelled battery, Sealed Type.
Deep cycle. Maintenance Free

Intelligent Solar Controller
Lifespan:5-10 years

15A/12V,IP68. Automatic Light and Time Control
Over-charging/discharging Protection
Reverse-connection Protection
Switch on Automatically with Light Sensor;
Switch off after designed Hours later.(11-12 Hrs)

Light source: High Power LED
Lifespan: More than 50000-100000Hrs

20W LED, White Color,3600LM/PC,6500K,IP65,
High Power, High Brightness.

Lamp Housing:
Lifespan: More than 20 years

Die-casted Aluminum, IP65
High transmittance & Density toughened glass,

Battery Box:

Engineer plastic,underground of the pole.

GI Pole System:
Lifespan: More than 20 years


6M Height, tapered Pole, Steel,
Hot-Dip Galvanized. Plastic Coated, Rust Proof,
With Arm, Bracket, Flange, Fittings, Cable, Etc
Resistant to Wind: ≥150KM/H



Working Principle:
1. Solar LED street light relies on solar energy, which is clean, endless and
   environment-friendly.

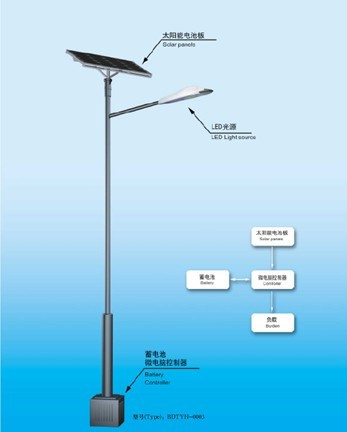

2. The system is mainly composed of solar panel, light source, controller and
    free-maintenance battery.
3. In daytime, when there is sunshine, the solar panel can convert the solar energy to
   electric energy and store it in the battery. At night or rainy or cloud condition, the
   battery shall supply power for normal lighting.
4. The controller can judge the brightness of daylight and automatically switch on the
   light. The whole process is operating in completely automatic mode, without human
   action.

BR SOLAR Brief Introduction:     Yangzhou Bright Solar Solutions Co., Ltd., Established in 1997, an ISO 9001: 2000, TUV, IEC, CE&EN, RoHS, SONCAP CCPIT and CCC approved manufacturer.

Overseas Exploration and Popularity:
We had successfully sold our solar LED street lights and solar lights to overseas markets more than 50 Countries such as the USA, UK, Canada, Germany, Spain, Greece, Italy, Sweden, France, Portugal, Cyprus, Romania, Croatia, Middle East, New Zealand, Fiji, Norway, Belgium, France, Italy, Australia, Turkey, Jordan, Iraq, UAE, India, Pakistan, Bangladesh, Qatar, Yemen, Singapore, Philippines, Cambodia, Nigeria, Congo, Mexico, etc.

Please note, our best competitive products:
10W-120W Solar LED Street Lights and LED Street Lights;
10W-240W LED Lamp and LED Housing;
Solar Panel below 300W;
24Ah/12V~250Ah/12V&300AH/2V-3000AH/2V Solar Battery

After-sales Service
1. LED solar street lights should be used under normal condition. The warranty of the
   quality is based on correct preservation, installation, usage and maintenance.
2. It's not included in the warranty scope if the products damage is due to improper
   installation, product regulations violation or damaged by human.
3. For the quality problems during the warranty period, our company will choose the
   best methods of repair exchange (parts) or replace the products and etc.
4.Some material cost, labor cost may be charged properly for extended service.

Certificates:

Choosing BR SOLAR LED street light design from here:
First:
1).the power of your required LED light?
2).the height of the pole?
3).how many hours/night the light can work?

Second: If you have no idea on the above question, we could design for you,
please inform us:
1). What's the width of road?
2). What's your request on the power of the light source?

The end:
Please choose your favorite model from our website or the catalogue.

Applications
Solar Street Lighting System  Solar Security Light
Solar Main Road Light            Solar Garden Light
Solar Freeway Light               Solar Campus Light
Solar Avenue Light                 Solar Pedestrian Street Light
Solar Sidewalk Light               Solar Jogging and Bike Path Light
Solar Military Bases Light       Solar Gate Light
Solar Path Light                     Solar Park Light
Solar Parking Lot Light           Solar Campus Light
Solar Driving way Light           Solar Pedestrian Street Light
Solar Remote Area Light         Airport Solar light
Solar Driving way Light           Solar Boat Dock Light
Prod Model: BR-620
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Lamp Choosing: 9W to 120W Solar LED Street Light
Pole Height: 3m to 12m
Solar Panel: Polycrystalline. High Efficiency
Solar Battery: Gelled Battery, Sealed,Deep Cycle. Maintenance Fre
Charge Controller: Automatic Light and Time Control,IP68
Battery Box: Haning Type to Antitheft
Lighting Time: 11-12hrs/Night
Quality Warranty: 3-5 Years
OEM ODM: Is Available
Application: Solar LED Street Light
Light Source: LED Lamp
Lamp Body Material: Aluminum Alloy
Light Type: Energy Saving
Color Temperature: Cool White
Power: ≥30W
Technics: Painted Matte
Illumination Time: 12h
Charging Time (',H): 6
Usage: City Road or Countryside Road
IP Rating: IP65
Certification: FCC, Soncap, ISO,Pvoc,Saso
With Light Source: With Light Source
Cell Type: Gelled or Lead-Acid AGM Battery
Voltage: 12V
Yangzhou Bright Solar Solutions Co., Ltd., Established in 1997, an ISO 9001: 2000, TUV, IEC, CE&EN, RoHS, SONCAP, CCPIT, SASO and CCC approved manufacturer.

Overseas Exploration and Popularity:

We had successfully sold our solar street lights and solar panels to overseas markets more than 50 Countries such as the USA, Canada, UK, Greece, France, Italy, Australia, Turkey, Jordan, Saudi Arabia, Iraq, UAE, India, Philippines, Pakistan, Cambodia, Taiwan, Nigeria, Ghana, Congo, South Africa, Mexico, Haiti, etc.

For the Future:

With advanced manufacturing & testing equipments, our factories are growing better and better. We hope to cooperate with more partners and distributors to develop more business to create prosperous win-win partnerships. OEM is available. Welcome your inquiry mail or call.

Main Products:

Solar Street Lights & Solar Street Lighting & LED Solar Street Lighting;

Solar Garden Lights & Solar Landscape Lights;

Solar Panel & Solar Modules.

Small Solar Home System & Solar Home Kits.

Attention: We are good at

1: Designing, producing, installing solar 10W-120W Solar LED street lights

2: Designing, producing 10W-240W LED Lamp for outdoor street and road using.

3: Producing solar panel below 310W

4. Solar Battery 7Ah-300Ah/12V

5. Solar Home Kits 3W-5000W System

OEM Service for solar lighting and PV panel is available.

Welcome your inquiry of solar outdoor lights and solar home lights.
