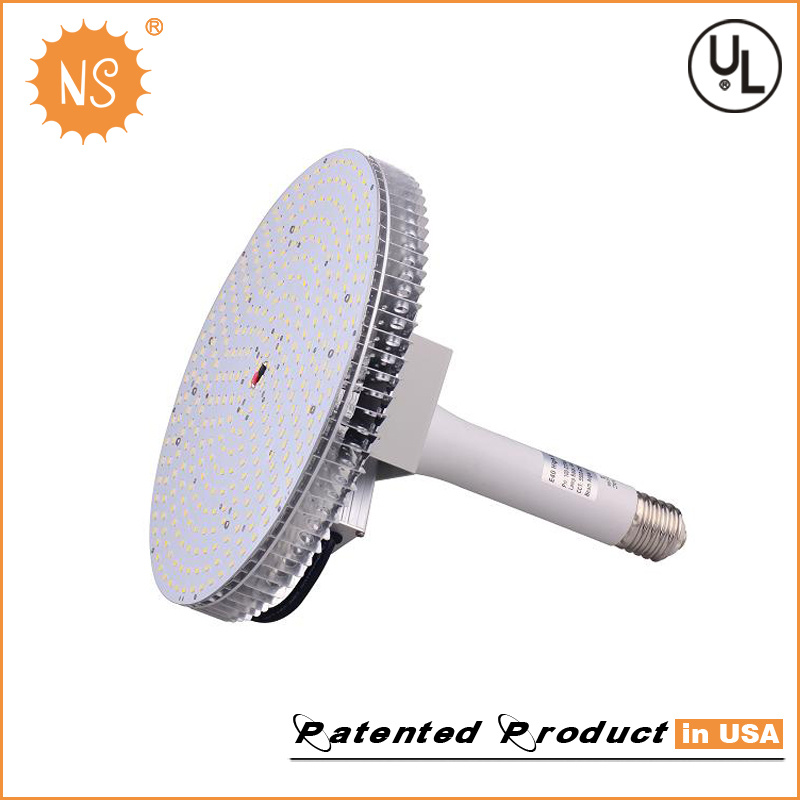

E40 E39 pizaa round 100W LED high bay light
Don't Change out your fixture if you don't need to
The LED pizza light has quickly evolved into a $$ saving powerhorse and is now the hottest product.
It is designed for the Mogul Base socket and will upgrade any Mecury Vapor, Metal Halide (MH), High Pressure Sodium (HPS), High Intensity Discharge(HID), or Fluorescent Lamp.
The huge advantage with this product is that it retrofits easily with little modification
This means that now in just minutes, you can now upgrade virtually any compatible fixture to LED at a reasonable cost and will reach your ROI target faster than any other option.
This is easily the best choice for municipal or commercial entities looking to enter the LED market with the lowest possible investment. Perfect for upgrading your parking lots, schools, universities, city parks and shopping centers right now.
Product Information
Part Number: N310-100W
Item Weight: N\W: 3kg, G\W: 3.46KG
Product Dimensions: Dia310*262mm
Warm White(3000-3500K) Neutral White:(4000-4500K) Cool White(6000-6500K)
Material: Fin Aluminum
Shape: pizza Round
Wattage: 100watts
Item Package: Quantity 2
Luminous Flux: 11000lm
Certification:CE RoHS
Technical Details
Eco-Friendly and energy saving
HPS MH light 250W Replacement
Products be free of charge within 6 month of replacement service,3 years warranty for repair parts.
Product Specifications:
1. Lamp Type: LED pizza light
2. Base: E26 E27 E39 E40
3. Rating Power(W): 10W
4. Luminous Flux(lm): 11000LM
5. Input Voltage: 100~300VAC, 50/60Hz
6. LED chip: 360PCS, Epistar SMD5630
7. Color Temperature(K): 2700-6500K
8. Beam Angle: 120 degree
9. Operation temperature: -20C~50C
10. Storage temperature: Normal temperature
11. Storage humidity: Normal humidity
12. Life Time (Hrs): 50000H
13.Waterproof Rating: IP40
Advantage:
1. Energy saving high power LED pizza light to replace the conventional HPS light 250W
2. Cylinder slott Heat sink
3. Light is soft and uniform, safe to eyes
4. No UV or IR in the beam
5. Cool light, No heat emission
6. Instant start, No flickering, No humming
7. Easy to install and operate
8. Green and eco-friendly without mercury
9. It's major to replace the CFL HPS MH HID with screwed lamp base directly
10. 80% more energy saving compared with conventional street light, CFL, Incandescent light
11. Special surface design with arc, make sure the radiation diameter on the ground is accord with the standards for size
Package details:
2 PCS E40 90W Cold White 6000K LED pizza Lamp Light
Inner box size:57*37*37cm, G.W.: 6KG
Carton size:57*37*37cm ,2PCS/CTN, Volume.Weight.: 15.5KG
Notice:
1. Make sure To Remove Or Bypass The Electronic Ballast In The Fixture Before Install The Led pizza light
2. Make Sure To Cut Off The Power Before Install The Led pizza light
3. E40 and E39 LED Lights such as led pizza light series could not use in the unventilated fixture
4. Not suitable for dimmers or electronic switches or remote controls
Contact:
Mike
Add: 3/F,Building 6th,Jiayiyuan Science & Technology Park,Huaning Rd.Dalang street
Longhua new district.Shenzhen.P.R.China 518109
Tel: +86 755 28112606 Fax: +86 755 28115355 Mob: +86 134 1735 6105
Rated wattage | 100W |
| Input Voltage | 85-265 VAC (AC100-277V is available) |
| Operationg frequency | 50/60 HZ |
| Rated power factor λ | > 0.95 |
| Power Efficiency | > 0.87 |
| Humidity | < 90% |
| Ambient temperature | -40~45 |
| Base(standard designation) | E26/E27/E39/E40 |
| Replacement convertional lamp power | 250W HPS |
| Output Short Circuit Protection | YES |
| Output Overvoltage protection | YES |
| Temperature protection(Half-power) | 95 |
| Power recovery temperature | 50 |
| Dimmable | NO |
