Home LED Light Products E3X Aluminum Outdoor LED Wall Light

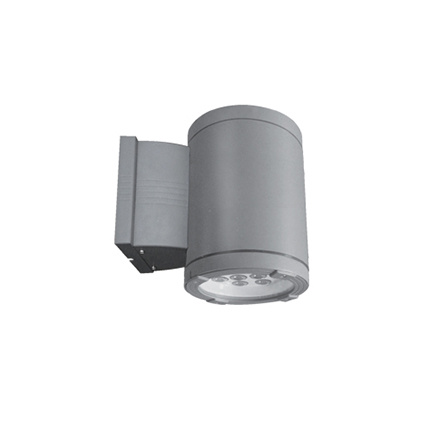

E3X Aluminum Outdoor LED Wall Light

E3X Aluminum Outdoor LED Wall Light
Price: US $ 20/Piece
Trade Terms: FOB
Min Order: 5/Piece
Pay Type: T/T,Paypal,Western Union
Features & Benefits:

Light Source: Cree high power LEDs, producing the highest quality and consistency of lighting.

Structure: High-pressure aluminum die-casting shell, with good heat dissipation capability, easy mounting on wall.

Power Supply: Integrated stable and reliable LED driver, ensuring the long life span of the LEDs.

Lighting Direction: Uniderectional or bidirectional two options according to your lighting needs.

Life Span and Warranty: Rated for greater than 50,000 hours of life, or greater than 20 years, ensuring a consistent, long-life light output, 3 years warranty.


Physical Specification
Dimension: 148*180mm, 148*180mm, 243*188mm, 234*294mm, 270*265mm, 270*286mm
Material of Shell: Die-casting aluminum
Finish Color: Grey
Weight: 1.02Kg, 1.28Kg, 2.17Kg, 4.05Kg, 3.88Kg, 5.7Kg


Electrical Specification
Input Voltage: 100-240VAC
Power Factor: >0.9
Power Consumption: 4W, 7W, 14W, 29W, 22W, 43W


Optical Specification
Lighting Source: Cree High Power LEDs
LED Quantity: 3pcs*1W, 6pcs*1W, 12pcs*1W, 24pcs*1W, 18pcs*1W, 36pcs*1W
Optional Colors: 6000k, 4000k, 3000k, Red, Green, Blue
Wavelength: Red: 620-625nm; Green: 520-525nm; Blue: 470-475nm
CRI: >80 (6000k)
Beam Angle: 18°
Lumens(6000K): 380lm, 650lm, 1350lm, 2660lm,  2050lm, 4100lm


Control System
Control System: Dimmable with compatible dimmer controller and other control systems


Working Environment
Operating Voltage: -25C to 45C
IP Rate: IP54


Expected Life Span and Warranty
Expected Life Span: 50,000 hours
Warranty: 3 years
Prod Model: WOE310046A0G
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size: 148*180mm
Style: Modern
Lamp Body Material: Aluminum
Shape: Round
Irradiated Area: 3-5㎡
IP Rating: IP65
Shade Type: Toughened Glass
Certification: CE
Color Temperature: 2800-6500k
Switch Type: Power on and Power off
Voltage: 100-240VAC
LED Lighting is a revolutionary, low carbon, green growth technology that allows for improvements in living and working environments as well as sustainable living. J&T Lighting is a global company specializing in LED lighting with a strong commitment to sustainability.

J&T Lighting focuses on the development, production and sales of a full line of LED lighting products that support various applications in industrial, business, commercial, public and residential facilities. Also, we offer the best total solution meeting various conditions and needs of each client, through smart lighting design and installation consultancy services, based on the convergence of lighting technology and ICT expertise.

We benefit from a long history of LED system design. Our engineers are the longest-standing LED experts out there, with the widest breadth of LED experience. We strive to help drive the rapid advancement of lighting science. With a focused product portfolio, and a dedicated expertise, we are committed to meeting and exceeding all industry standards as a leader in the lighting revolution
