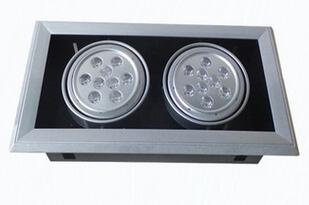

High Lumen 18Watt Recessed LED Downlight , Ceiling Downlights With Cool White Lights
Quick Detail:
18W power consumption
Warm white Pure white Cool white
Luminous Efficiency 80-110Lm/W
Description:
CNC construction and 1060 Aero aluminum alloy housing
Germany FIN-design and thermal efficiency 60% improved
Cree/Edison/Epistar LED
AC85~265V input options
18W power consumption
Warm white Pure white Cool white
Luminous Efficiency 80-110Lm/W
Diffused lighting
Up to 70% energy savings
3 Year Warranty
CE RoHS TUV UL compliant
Specifications:
Electrical / Optical Characteristics (Ta=25ºC±3ºC)
Tech Date | |
Model | SSL-VL-2X9W-01 |
LED Qty | 18pcs |
LED Type | Cree Edison Epistar |
LED Power | 18W |
LED Color | Warm white, Pure white, Cool white |
Input Voltage | AC85~265V |
Frequency Range | 50Hz - 60Hz |
Power Factor | >98 |
Power Efficiency | >85% |
Luminous Efficiency | 80~110LM/W |
Dimension | 390x205x150cm |
Color Temperature | WW | 2700-3500K |
PW | 4000-5500K |
CW | 6000-7000K |
CRI | WW | Ra>73 |
PW / CW | Ra>78 |
Lamp Efficiency | >85% |
Lumens Output | WW | 1500lm |
PW | 1550lm |
CW | 1600lm |
Beam Angle | 30.60 |
(Cut-out)Hole size | 345X160mm |
Radiator Number | 0.4mm x 42 pcs |
Radiator Area | 840cm² |
Installation | Embedded |
Housing Color | White |
Working Temperature | -40ºC ~ +55ºC |
Storage Temperature | -25ºC ~ +65ºC(25ºCbest) |
Life span | 35000~50000hrs |
Certification | CE, RoHS, FCC |
package | 45*24*35cm (30pcs/box) |
Curve of light distribution (Ta=25ºC±3ºC)
Installation Instruction:
pplications:
Widely used in the hotel, meeting room, offices, hospital, schools, factories, commercial lighting, shopping malls, supermarket.
Sunshine Light is an established high-tech firm specialized in developing OEM and ODM LED lighting products manufacturer and exporter. We are quality manufacturer always produce high technology & high quality products years of our experience bringing us the advantages of LED lights got improved remarkably, such as more efficiency, environmentlally safe, longer life span, less power consumption. We can provide customer R&D in new product design, production, quality control with high standard products and services. We're especially well-placed in the field of Power LED thermal management and related lighting solutions.
