Company Information:
Vison Lighting Co., Ltd was established in 2006 with total registered capital more than 50 million RMB. Our company covers an area of 15 acres with gross floor area more than forty thousand square meters. We are specialized in manufacturing street lighting poles, garden lighting poles, high mast lighting poles, middle mast lighting poles, solar street lighting poles, LED lighting poles, traffic lighting poles etc. Besides, our company undertakes orders for processing various standard lighting poles and custom-made lighting poles.
Our company integrates R&D,design,production,hot dip galvanizing,marketing,construction and installation with machines such as Decoiling Machine,Shearing Machine,Hydraulic Press Brake,Automatic Jointing Machine,Pipe Straightening Machine ,Pipe Bending Machine,Automatic Polishing Machine,Galvanizing Assembly Line,Spraying Assembly Line etc.
Our company has received many qualification certificates such as CCC,CQC,CE,RoHS,ISO9001:2008,ISO14001:2004,OHSAS18001: 2007 etc. Our company is awarded as National High-tech Enterprise,Well-known Trade Name of Zhejiang Province,Ankang Cup Winning Enterprise,Enterprise Technology Center of Quzhou Province,Patent Exemplary Enterprise,Famous Brand Product,Famous Trademark,Innovative Enterprise,Civilized Enterprise and Worker Pioneer etc. We also have more than 60 patents for utility models and design.
Specification:
Type

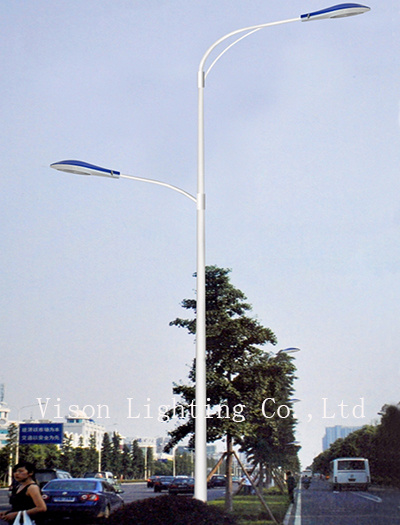

Street Lamp pole, lamp post . Lamp column
Shape
Conoid ,Multi-pyramidal,Columniform,polygonal or conical
Material
Usually Q345B/A572,minimum yield strength>=345n/mm2
Q235B/A36,minimum yield strength>=235n/mm2
As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400, SS490ST52
Torlance of dimenstion
-0.02
Design Load in Kg
300~ 1000 Kg appliced to 50cm from the to pole
Surface treatment
Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required.
Standard
Octagonal tapered column
Certified by SIRIM QAS INTERNATIONAL.
Approved by JABATAN KERJA RAYA MALAYSIA.
Conforms to Standard:
Pole design : BS EN 40
Material : BS EN 10025 S275 / JIS G3101 SS400
Welding : BS 5135
Galvanizing : BS 729 / ISO 1461 ASTM A 123
Length of per section
Within 14m once forming without slip joint.
Suit for
Highway
Roadway
Residential subdivisions
Commercial development
Option
Height from 6m to 12m
Flange mounted or planted type
Variable arm length from 0.125m to 3.0m with single or double arm type
Variable spigot size from 35mm to 60mm.
Production Process
Raw material test->Cutting->Molding or bending->Welding
(longitudinal)->Dimension verify->Flange welding->Hole drilling->
Calibration->Deburr->Hot dip galvanization or powder coating->
Recalibration->Thread->Packages.
Vison Lighting Co., Ltd was eatablished in 2006 with registered capital more than 50 million RMB and total area more than 15 acres. We are specialized in manufacturing various lighting poles which include the street lighting poles, garden lighting poles, solar lighting poles, high mast lighting poles, middle mast lighting poles, decorative lighting poles, sign posts, signal poles etc.
With our own hot DIP galvanizing plant and powder coating plant, our customers can rest assured about the quality and the price. Our factory is equipped with decoiling machine, shearing machine, bending machine, submerge-arc welding machine, straightening machine, punching machine, NC flame cutting machine, NC plasma cutting machine etc. Now our monthly production capacity is around 20000 PCS of regular poles and yearly turnover is 20 million USD.
We always adhere to the principle "Quality First, Reputation First". We believe that we can achieve more under this principle.
