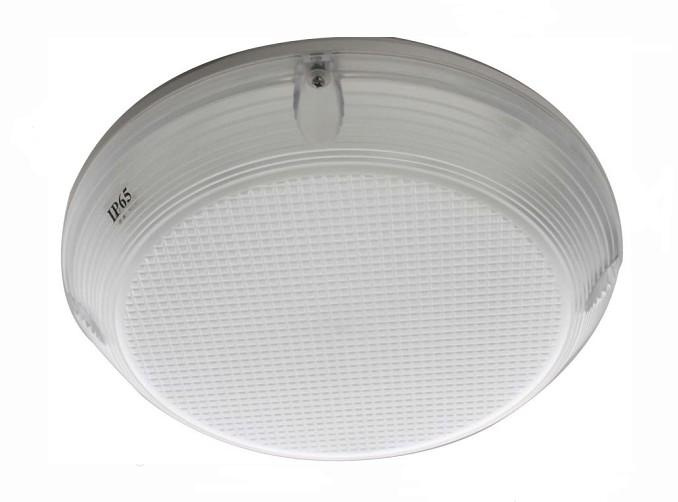

Dimmable LED ceiling lamp
Item No. GT-C002-20WS1-W/M
LED type: SMD 3528
LED Qty: 324 PCS,
Color: Warm white 2800-3300K/ cool white 6000-6500K
Lumens(Lm): 1550/1500 LM
Beam angle: 180 degree
In-put: AC100-240V
Watt: 23 W
can dimmer the light in 3 grades, High-Middle-Low.
Chracteristics:
1. This series of lamps is made of high quality aluminum alloy, and the surface uses environmental powder paint process. The overall structure is simple and the reasonable design for heat dissipation can ensure safety for working environment and extend lifespan of LED.
2. Lamps use efficient LED light sources and face masks adopt PC raw materials imported from U. S. Precise injection moldings are integrated which greatly reduce the light loss and increase the softness, evenness of light. Special internal circuit design and special light source lattice, which increase the color index on the basis of the existing color index, give you a better and more real world.
3. No ultraviolet or infrared radiation, no mercury, lead or other heavy metals. LED lamps are the best choice for green and environmental-protection.
4. Lower power consumption. Contrasting to traditional lamps, LED lamps can save energy of 60%-80%.
5. Long lifespan: More than 35, 000 hours.
6. IP65 structure design can be used in humid environment safely.
7. For providing satisfying service, please operate according to instructions in the process of installation and replacement.
8. Guarantee period: 3 years
|
NO. |
Item No. |
LED type |
LED Qty |
Color |
Lumens(Lm) |
Beam angle |
In-put |
Watt |
|
1 |
GT-C001A-B5W6-W/M |
LED Module |
6 |
CW/WW |
2170/1600 |
180° |
AC100-240V |
34 |
|
2 |
GT-C001B-25WS1-W/M |
3528 |
360 |
CW/WW |
2000/1900 |
180° |
AC100-240V |
25 |
|
3 |
GT-C002-20WS1-W/M |
3528 |
324 |
CW/WW |
1200/1100 |
180° |
AC100-240V |
22 |
|
4 |
GT-C003-20WS1-W/M |
3528 |
324 |
CW/WW |
1230/1200 |
180° |
AC100-240V |
22 |
|
5 |
GT-C004A-16WS1-W/M |
3528 |
216 |
CW/WW |
1000/940 |
120° |
AC100-240V |
17 |
|
6 |
GT-C004B-20WS1-M/W |
3528 |
324 |
CW/WW |
1410/1350 |
120° |
AC100-240V |
22 |
|
7 |
GT-C004C-30WS1-M/W |
3528 |
440 |
CW/WW |
2100/2000 |
120° |
AC100-240V |
33 |
|
8 |
GT-C005-20WS1-W/M |
3528 |
324 |
CW/WW |
1400/1350 |
120° |
AC100-240V |
22 |
|
9 |
GT-C006A-18WS1-W/M |
3528 |
240 |
CW/WW |
1200/1160 |
180° |
AC100-240V |
18 |
|
10 |
GT-C006B-20WS1-W/M |
3528 |
324 |
CW/WW |
1580/1500 |
180° |
AC100-240V |
22 |
|
11 |
GT-C006C-30WS1-W/M |
3528 |
420 |
CW/WW |
2200/2100 |
180° |
AC100-240V |
32 |
