Fi Overview:

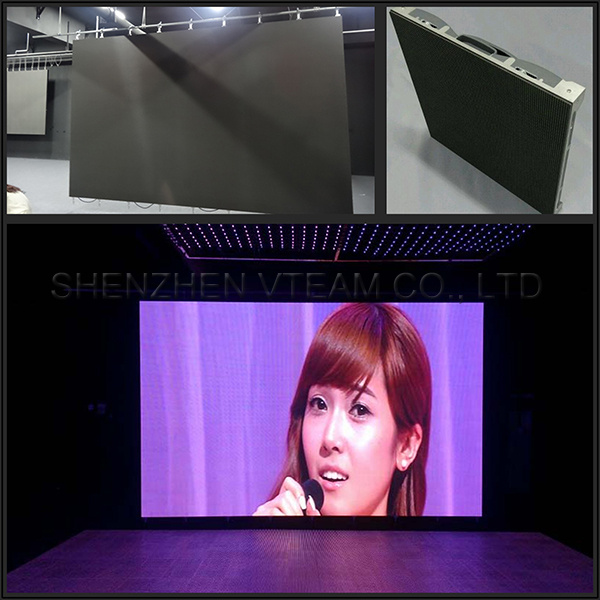

Fi is a high quality product with high definition and super clear image. It takes the technology of all die-cast aluminum, which is secure and nice in appearance. It's very lightweight and each module connected by special connecting constitution to achieve fast assembly. Fi series are suitably applied in vocal concert, Live show, TV station, Meeting, nightclubs, DISCO and supermarket for displaying and advertising use.
Product Features:
1. All die-cast aluminum, secure and nice in constitution.
2. Dust proof, IP 43.
3. Auto locking system, super easy to assemble and disassemble.
4. Fan-less design with great structural heat dissipation function, achieving noise-free
5. High refresh Rate, flicker-free[no scan lines] *even under HD cameras, superior images are available for live events.
6. Large viewing angle, the panel viewing angle is up to 140, the vertical angle could reach 140, the image won't be out of shape and color cast between the rang.
7. Could be exact connected and easy to install and dismount.
Advantages:
1. Fanless design.
2. Competely black LED with high contrast.
3. HD video performance.
4. Die-casting aluminum, nice heat dissipation.
5. Individually removable and replaceable.
|
Item |
Fi3.75 |
Fi 4 |
Fi 4.615 |
Fi 5 |
Fi 6 |
|
Pixel Pitch |
3.75mm |
4 mm |
4.615 mm |
5 mm |
6 mm |
|
Brightness |
900nit |
900-1600nit |
900nit |
900-1900nit |
650-1900nit |
|
Refresh Rate |
288 0 Hz |
1 92 0 Hz |
1 92 0 Hz |
1 92 0 Hz |
1 92 0 Hz |
|
P ixel Matrix |
128x128 dot |
120x120 dot |
104x104 dot |
96x96 dot |
80x 80 dot |
|
Pixel density (dot/sqm) |
71111 |
62500 |
46656 |
40000 |
27777 |
|
LED Type |
1 R 1 G 1 B
S MD 2121 |
1 R 1 G 1 B
SMD 2724 |
1 R 1 G 1 B
SMD 3528 |
|
Best Viewing distance |
4m |
4m |
5m |
5m |
6m |
|
Max . Power consumption |
100W/pcs |
120 W/pcs |
90 W/pcs |
90 W/pcs |
70 W/pcs |
|
Ave . Power consumption |
60 W/pcs |
65 W/pcs |
50 W/pcs |
50 W/pcs |
40 W/pcs |
|
Panel Size |
480x480x80mm |
|
Viewing angle |
1 4 0° X 1 4 0° |
|
Gray Scale |
12bit |
|
Color Temperature |
8000K±500 |
|
Weight |
8.5kg/pcs |
|
Working Voltage |
AC 220V±10% |
|
E nvironment |
T emperature -10~ 50°C, humidity 10-90%RH |
|
Control system |
PC based, dynamic capture & mapping. |
|
Reframe Rate |
≥60 Hz |
|
Protection Level |
IP43 |
|
Operating Life |
> 50,000 hours |
|
Certificate |
CE |
SHENZHEN VTEAM Co., Ltd. is a professional ODM LED Screen manufacturer in Shenzhen, China, specialized in creative indoor and outdoor LED screen with experienced R&D team who has been working in LED display field for more than 8 years.
VTEAM screen is popular with the features of light weight, ultra-thin cabinet, transparent structures and widely-used in the application of TV Station, studios, auto shows, music concerts, clubs, discos, building facade, outdoor decorative lighting projects, exhibitions, celebrations etc.
As one of leaders of LED Screen suppliers in China, All products carry CE RoHS certification, with perfect designed products, customized solution, superior product and service guarantee, VTEAM has been highly praised by domestic and overseas customers, we have been shipping qualified products and services to more than 100 countries and regions all over the world, such as in the USA, Russia, Germany, Sweden, France, Netherland, Spain, Canada, Brazil, Mexico etc. The most notable of those successful projects is that we have done the creative "Giant Football" for the opening&closing ceremony of 2014 Brazil FIFA WORLD CUP!
VTEAM Mission: To create value and profit for customers!
VTEAM Vision: Being creative concept pioneer!
