Products Description:
P3 Full Color indoor LED Modules
Module Size: 192*96mm
Density/sq.m: 111111dots
Module Resolution: 64*32
High Resolution Indoor Full Color P3 LED Screen IP43 , Stage Background LED Display MBI5020
Quick Detail:
1.Super lighter and thinner;
2. Easy connection and disassembling;
3. Wide application, good for rental or fixed installation;
4. High resolution and high frequency dynamic image.
Description:
1. P3 led display provide personalized solution according to actual request of customer;
2. Wide viewing angle: 120 degree both at horizontal and vertical line, no picture change, no color excursion;
3. 281 trillion kinds of color expression capability, 4000HZ refresh rate, eliminate stroboscopic, can achieve perfect image shooting;
4. Powerful image processing functions, RGB three color brightness, contrast, Gamma curve, each parameter adjustable;
5.Adopt reliable aluminum cabinet, solve heat dissipation problem of high density board from design.
Applications:
Shopping Malls
Music Venues and Concerts
Big office
Theater and Arts
TV Shows
Car Shows
Specifications:
Bitmap | Shenzhen TeehoLED Panel Specification |
|
|
|
|
| Model: | Modules Picture(front side) | (back side ) |
|
| SMD-P3 | Bitmap | Bitmap |
|
|
|
|
|
|
|
| Specitication: | P3 LED Panel Specification |
|
| NO: | Product Name | Specification |
| 1 | Pixel Pitch | 3mm |
| 2 | Pixel Configuration | 1R1G1B/SMD2121 Black lamp |
| 3 | Density | 111,111 pixel/m2 |
| 4 | Moduel Size(L×W)mm | 192mm×192mm |
| 5 | Cabinet Size(L×W×H)mm | 768mm×768mm×130mm |
| 6 | Module Resolution | 64×64 |
| 7 | Cabinet Resolution | 256×256 |
| 8 | Driving Method | 1/16 Scan |
| 9 | Driving IC | MBI5024 |
| 10 | Brightness | 1200cd/ |
| 11 | Contrast | 1000:1 |
| 12 | Brightness Adjustment | Auto and Manual |
| 13 | Power Consumption | Max Power:<750W |
| 14 | Average power: <250W |
| 15 | Module Weight | <0.2kg |
| 16 | Color Temperature | 3200K-9300K |
| 17 | Horizontal Viewing Angle | 120º |
| 18 | Vertical Viewing Angle | 120º |
| 19 | Signal Processing | 10 or 14bit |
| 20 | Grey Processing | 1024×1024×1024
16834×16834×16834 |
| 21 | Control Distance | Cable100m,Multimode500m,Single mode
2km |
| 22 | Frame Frequency | 65 Hz |
| 23 | Refresh Rate | >1500Hz |
| 24 | Control Mode | Synchronous/Asynchronous |
| 25 | The Opposite Calibration Curve | With Eight Optional Gamma Calibration Curve |
| 26 | Users can choose the recommended curve or adjust it based on actual situation |
| 27 | MTBF | >50000 hours |
| 28 | Life Span | 100,000 Hours |
| 29 | Operating Temperature | Working : -20 - 65 ºC |
| 30 | Storage : -40 - 85 ºC |
| 31 | Environment Temperature | -30ºC to 60ºC; humidity Rh10% to 95% |
| 32 | Remote Control | Can realize remote control and send alarm signal to operators in case of failure logging (Be customized) |
| 33 | Self-checking Technique | Self-inspection, communication test, power test, temperature monitoring (Be customized) |
| 34 | Operating System Platform | WindowsNT,Windows2000,WindowsXP,Windows7 |
| 35 | Power Supply | AC 85-264V |
| 36 | Protection | waterproof, dustproof, high temperature pervention, anticorrosion, smoulderproof, anti-static, shockproof, lightningproof, smoke alarm and temperature alarm. (Be customized) |

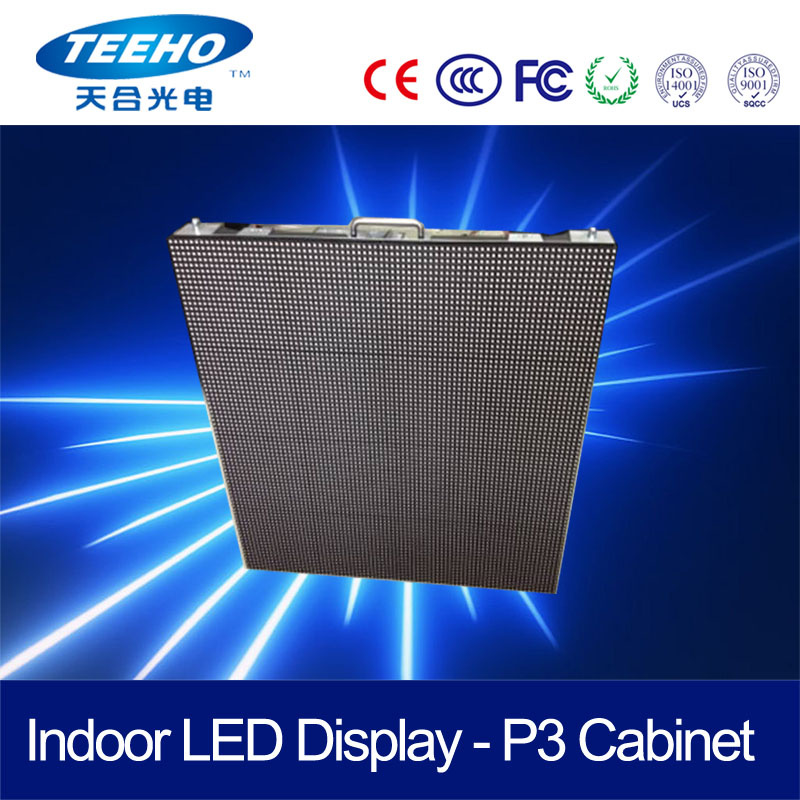

| Cabinet Pictures |
|
| Front Side | Flank Side | Back Side |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Descriptions | 1.This product is wide appllied to advertising media, government projects
2.Protection Level:IP43
3 Designs of cabinet sizes are based on installation sites/screen sizes
4.The parameters above are actual tests. Welcome to our factory to visit! |
|
|
|
