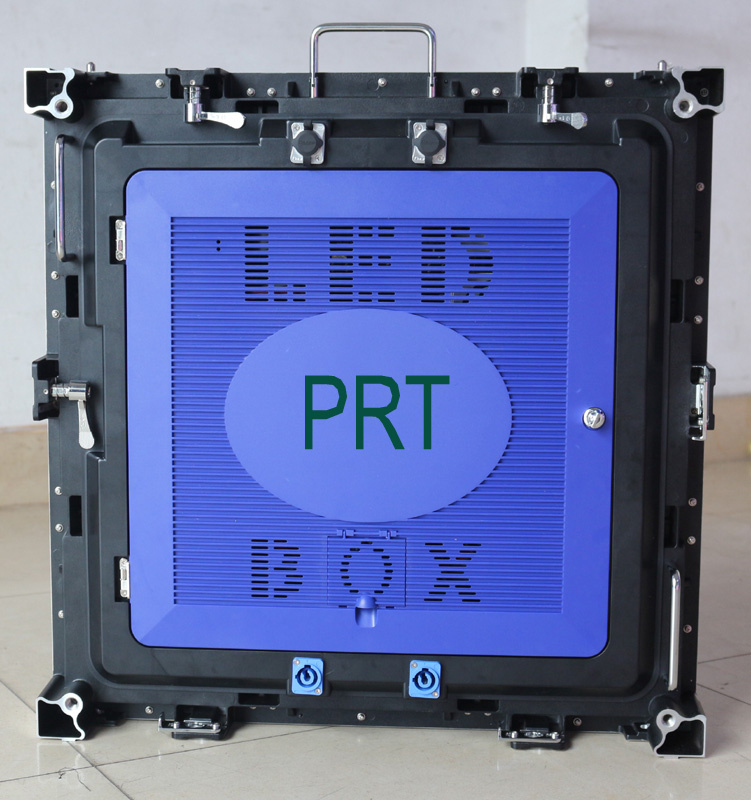

Indoor P3 Full Color LED Display with die-casting aluminum cabinet size of 576x576mm for rental or fixed install, high resolution,high contrast ratio and high gray scale
Product Features:
1. SMD encapsulated leds ensure the wide view angle up to 140° both for horizontal and vertical,be perfect display effect from different angle
2.Black body lamps with black mask make high contrast ratio and good uniformity
3.Small pixel pitch with high density, high resolution up 1080P
4. High gray scale reach to 16bits,and high refresh rate up 2000Hz
5. Panel size of 500×500mm,slim thickness of 70mm only,ligh weight and portable
6. No funs design, lower power consumption, good heat dissipation, save energy 30% lower than traditional products

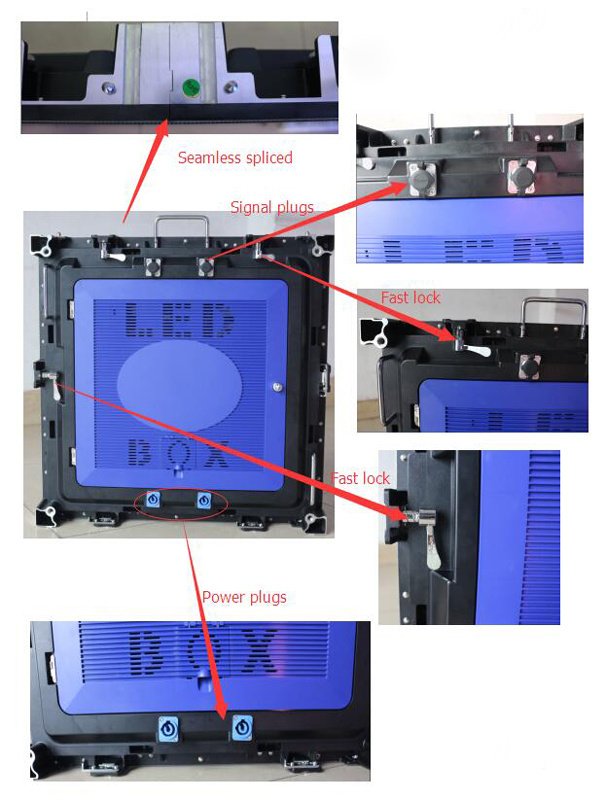

7.With special CNC craft confirm seamless spliced,less than 0.1mm difference
8.Brightness be adjustable, to meet different condition request

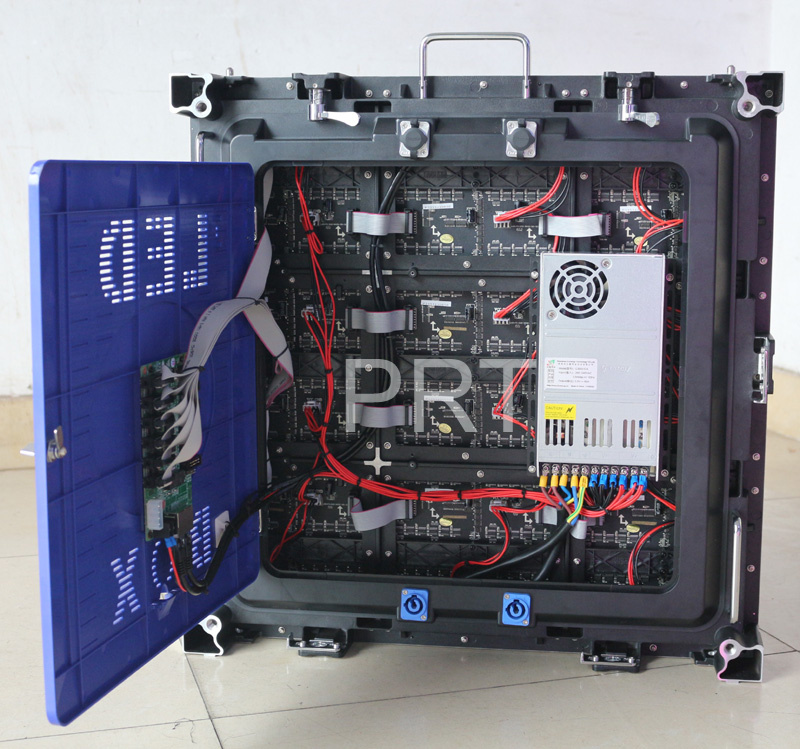

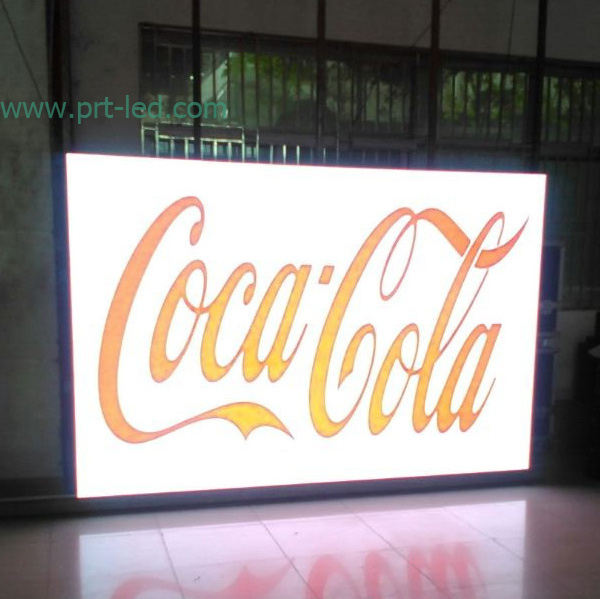

Please see more pictures for your reference
P3 SMD2121 Indoor full Color LED Screen Specification |
Pixel pitch | 3mm |
Pixel Configuration | 1R1G1B |
LED component | SMD2121 black |
Size of module | 192mm x 192mm |
Resolution of module | 64x64 |
Size of cabinet | 576mm x 576mm x 65mm |
Resolution of cabinet | 192x192 |
Material of Cabinet | Die-casting Aluminum |
Weight of Cabinet | 10.5KGS |
Brightness | >1200cd/ |
Density | 111111dots/ |
Best viewing angle | 140 /140 |
Pixel Configuration | 1R1G1B |
Best viewing distance | 3-50M |
Maximum power consumption | 1200W/ |
Average power consumption | 640W/ |
Driving method | 1/16 scan |
Control method | Synchronization |
Gray scale | 65536 |
Colors | 256*256*256 |
Color temperature | 3200-9300k |
Uniformity | 97% |
Working voltage | AC220V/110V±10% |
Working temperature | -20ºC~+50ºC±10% |
Working humidity | 10% ~ 90% |
MTBF | 10,000 hours |
Frame frequence | 50/60Hz |
Refresh frequence | >3000Hz |
IP grade | IP31 |
Life Span | 100,000 hours |
Data transafer method | RJ45 |
Pratical standard | CCC TUV-CE ETL etc. |
Effectivce Communication Distance(without relay) | Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M; Single-mode optic fiber: 10KM |
Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc. |
Systems operating platform | WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development |
