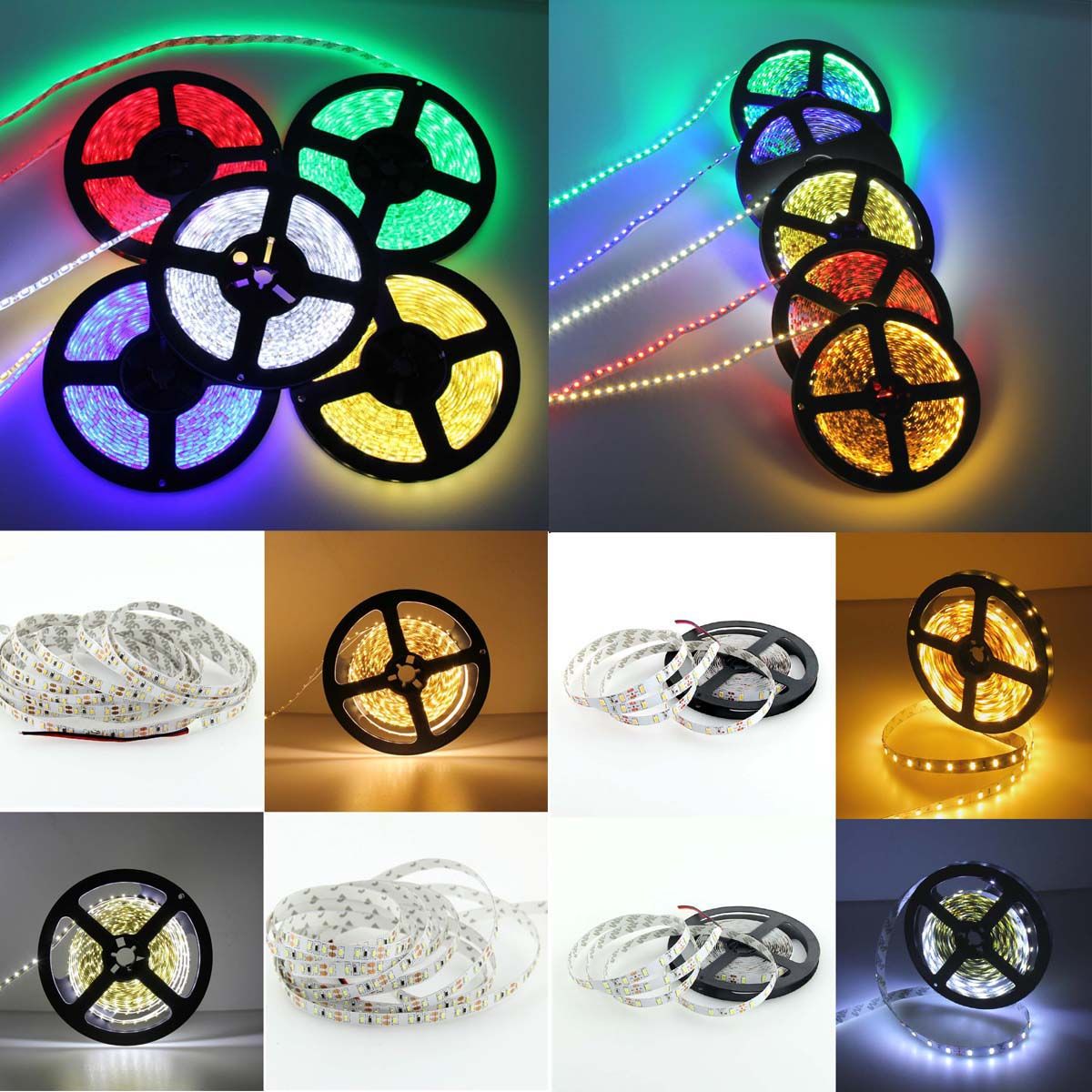

Home LED Light Products DC5V 32LEDs/M Aluminum Profile 5050 RGB LED Strip Light Ws2801

DC5V 32LEDs/M Aluminum Profile 5050 RGB LED Strip Light Ws2801

DC5V 32LEDs/M Aluminum Profile 5050 RGB LED Strip Light Ws2801
Price: US $ 3-10/Piece
Trade Terms: FOB,EXW
Min Order: 1/Meter
Pay Type: L/C,T/T,Paypal,Western Union

Quick Details
Light Source: LED
Item Type: Light Strips
LED Light Source: 5050 RGB
Type: Flex LED Strips
Input Voltage(V): DC5V
Lamp Power: 10Watt/m
CRI (Ra>): 75
Working Temperature(ºC): -20 - 55
Working Lifetime(Hour): 50000
Lamp Body Material: Copper
Certification: CE, RoHS
Emitting Color: Changeable
Place of Origin: Guangdong, China (Mainland)
Brand Name: LF
Model Number: LF5050RGB16GJT-2801
Product name: aluminum profile 5050 RGB led strip light ws2801
LED chip: Epistar
Q'ty of lamp: 32leds/m
Q'ty of IC: 32IC/m
Q'ty of pixels: 32pixels/m
warranty: 2 years
Type of IC: ws2801
PCB Dimension: 5000mm*12mm*4mm
waterproof rating: IP40/IP65/IP67/IP68
Grey rating: 256
Packaging & Delivery

Packaging Details:
5 meter per roll in static bags ,50 rolls per carton .
Delivery Detail:3~7 working days after confirm the order

Specifications

DC5V 32LEDs/m aluminum profile 5050 RGB led strip light ws2801
1.DC5v 10W/m , WS2801 IC,
2.32LEDs +32ICs+32Pixels/m,



  DC5V 32LEDs/m aluminum profile 5050 RGB  led strip light ws2801
ws2801 addressable LED Strip, 32/36/96 LEDs, both white and black PCB, 5meters/roll.

1. Parameter
32LEDs  ws2801;
DC5v,  10watt/meter;
32leds/meter, each LED separately control;
Epistar chip;
ws2801 IC, 32IC/meter (1 IC drives 1led chip);
ws2801 addressable LED Strip, 32/36/96 LEDs, both white and black PCB, 5meters/roll.
Pitch=31.25mm;
Grey scale: 256;
FPC Width: 12mm
FPC color: white, black
Both waterproof (IP65, IP67,IP68) and non- waterproof(IP40) are available
Full color changing
Warranty of 2 years

2. Different versions

ws2801 LED Strip

Voltage

Max Power

LED resource

Qty of LED

Qty of IC

Pixels/M

5v

10w

5050 RGB

32/M

32

32

5v

11w

5050 RGB

36/M

36

36

12v

9w

5050 RGB

36/M

12

12

12v

24w

5050 RGB

96/M

32

32


3. Protection rate


4. Control System
Small-scale control. 1000s, off-line working, can control MAX 2048 pixels
Large-scale control. 300K, on/off-line working, can control MAX 8192 pixels
Compatible with DMX512 and Arduino

5. Application
To create the Flexible LED Display
To create the Flexible LED Curtain
Indoor & outdoor decoration
Night-club, party, hotel backlighting


Prod Model: LF5050RGB16GJT
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type: Decoration Table Lamp
Style: European
Usage: Festival, Landscaping, Commercial, Home
Light Source: with Light Source
Base Type: LED Fountain Light
Certification: PSE, Reach
Emitting Color: RGB
