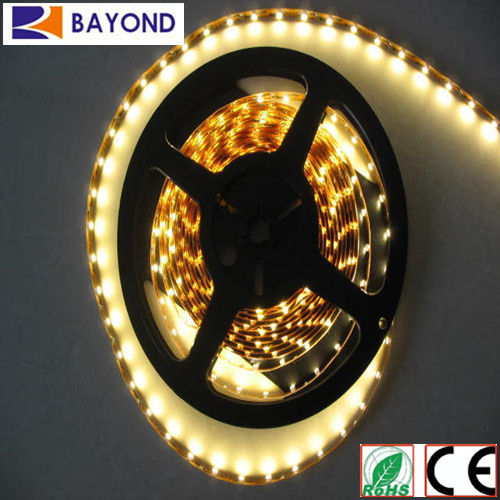

DC12V Warm White Flexible LED Strip Light for Backlight.
Specifications:
Item Name | Flexible led strip |
Light source | SMD5050 |
LED Qty | 30LEDs/M |
Working voltage | DC12V |
Output power | 7.2W/M |
PCB Width | 10MM |
PCB Color | white, brown and black are available |
Waterproof Rate | IP65/67/68 |
Color Temperature | 3000k-12000k |
Cut cable | Each unit of 3 LEDs |
Long Life span | 50,000Hs |
Viewing angle | 120° |
Certificate | CE/ROHS/EMC/LVD |
Features of DC12V Warm White Flexible LED Strip Light for Backlight:
1. Connect with DC12V power supply, which can connnect several LED flexible strips in series.
2. Adopt excellent flexible PCB material to apply to various shapes' installation, the flexible PCB could be in white,yellow,black.
3. The max. power of single color product: 7.2 W/M, the max. current: 600 mA/M. The max. power of RGB product: 6 W/M, the max. current: 500 mA/M.
4. The series could be customized to be waterproof LED strips(IP45,IP67,IP68,etc.) according to customers' requirements.
5. Lifetime:50000 hrs.
Advantages:
1.Easy connection and installation
2. long life span,standard warranty 2 years
3.6 Leds cut-able, matched with easy connection accessories
4.No need the constant-current power feed
5.Low power consumption
6.Best choice for holiday season, show and exhibition 's decorating
Attentions when operating:
1. Effective power for switch power is only 85% of power's label,so LED product's load power shoul be at least more than 15% when user choose feeding power.
2. Make sure the right and stable anode and cathode when installing cables,and also attention to the driving voltage in case to damagecomponents and fire
accident when circuit pass through voltage.
3. Forbidden to connect cables when power on,putting power in cool place,so that it ensures appropriate working temperature.
4. Make sure strip's grade of waterproof.To install suitable conditions in accordance with practical IP.
5. This product is allowed to connect only 10PCS(0.5M/PCS)in seires wound. 2V differential voltage for the beginning and the end.
6. This user manual is only applicable for our product.
7. If it is Crystal Glue,please don't crook 30 degree,otherwise,it easly happens glue cracking.
Shipping of DC12V Warm White Flexible LED Strip Light for Backlight
Destination | Method | Fee | Timing (changeable) | Custome Clearance |
door to door | EMS | charge by volumn weight | 10~30 days | Forwarder |
DHL/Fedex | 5~12 days |
UPS/TNT |
airport | by air | Yourself |
seaport | by sea | charge by volumn | 20~40 days |
For sample and trial order, we recommend to send by Express,
for large order, we recommend to send by air or by sea,
it depends on where are you from, also the total volumn and weight of the products.
We will get the most discounted price from our forwarder to help you save the cost.
Application:
Scenary Illumination: Create a brilliant illumination, contrast the scene effect, or simply offer the necessary lighting
1. Building outline wall decoration
2. Advertising lighting
3. Stage, channel and passageway sign lighting
4. City lighting project
Mood Illumination: Meet the spiritual need of people, provide dynamic light, create an artistic conception,
1. Housing decoration
2. Park, theater, bar, cabin and tower lighting
3. Holiday decoration
4. Background light, concealed lighting
5. Car decoration
FAQ:
Q: How to get a sample?
A: ANSWER:For old customers, we can provide sample free and customer only need pay express freight. For new customers, we
will charge 50% higher then the unit price as sample fee and customers need to pay express freight also.
Q: How to pay express charges if order samples?
A: ANSWER:For those customer, who has DHL, FEDEX, TNT, UPS account, can give us your account and we will send the
samples by freight collected. For those customers, who do not have an express account, we will calculate the express freight
charge for you and you can pay the freight charge directly to our company account. Then we will delivery the samples by prepaid.
Q: How to pay sample charges?
A: ANSWER:You can pay to our company account. When we received the sample fee, we will arrange to make the samples
for you. The prepare time for sampe will be 2-7days .
Q: What is your terms of payment?
A: ANSWER:Usually, we accept T/T, irrevocable L/C at sight. For regularorders, we prefer 30% of total amount as down
payment and the balance paid before delivery.
Certificate:

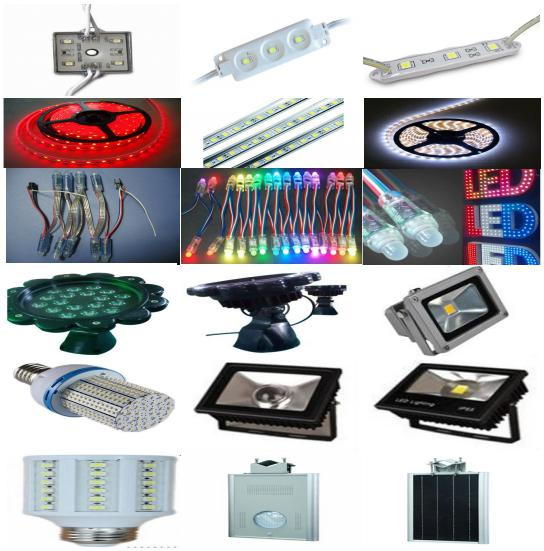

Main product:
