Product Application:
Product Parameters:
Base Material: Flexible PCB
Strip Size:60 LEDs/m; 5m/roll
Strip Thinkness:1.6mm
Copper Thickness:1oz
LED Type:3014/2835/5630/4014/5050/3528/3535
LED Numbers:30/60/120/1600 PCS
Surface Finish: Lead-free HASL/OSP/ENIG/Gold Finger
Soder Mask:White/Black
Silksreen:Black/White
Operarting voltage: DC12V
Wattage: Max12W /m
Color: Red/Green/Blue/Yellow/White
IP Grade: IP65/IP 67/IP68
FPCB: Single Side 3 oz
Product Description:
1.The thickness of the wires should be adopted based on the possible maximum current,
length of wires(5m in maximum is recommended)and the loss in the wires during transit
at low voltage.
2. Two ends of connection should be done as waterproof.
3. No touch in static, no work in electricity.
4. The maximum length is 5m, no exceeding in connection.
5. Power supply is recommended(with short circuit protection, high voltage and power
load protection).
6. It can be cut at the mark of the connection and there will be no affect to its function.
Top quality electronic Led Pcb assembly supplier:
LED PCB assembly with through-hole technology &SMT mechanical assembly
1.10 years experience in LED PCB and assembly
2.Low price with high quality
3. LED PCB certificate: ISO, , ROHS
4.100% E-tested
5. Track your oder on time
6. Lead time is manufacturing+shipping time.
About Sograce:
Sogcrace, established in June, 2006, is a professional PCB manufacturer for producing all
kinds of single side, double-side and multilayer pcb, and as well as assembly service.
Is located in Baoan District, Shenzhen, China, where is very close to shenzhen and Hong
Kong ports. Having a variety of advanced production equipment, excellent engineering and
technical personnel, Sograce accompany with the mature management and service system
Since establishment, we have been constantly improving all kinds of equipments and advanced
techniques, striving to develop and produce pcb and pcba which are used for high-tech products,
such as LED, communication, network, electric power, industrial control, medical treatment,
instrumentation, military projects and computer peripheral products ect.
Why choose us?
1. Your inquiry related to our products or prices will be replied in 24hrs.
2. Well-trained and experienced staffs to answer all your enquires in fluent English
3. OEM&ODM, we can help you to design and put into product.
4. Distributorship are offered for your unique design and some our current models
5. Protection of your sales area, ideas of design and all your private information.
We offer the following PCB assembly services:
1. Provide one-stop services from PCB TO PCBA assembly, PCB design, PCB layout, PCB
manufacturing, PCB Assemblies, components sourcing, PCBA Function Test, design solution.
2. Provide PCB assembly with BGA, DIP, AI, SOP, QFN, PFP, THD, SMT, SMD, technology.
Complete product assembly including structural parts, microchip programming and functional testing
3. High-precision 0201 size components SMT technology in lead-free or lead assembly process.
4. OEM/ODM electronic card assembly, print circuit board assembly (PCBA) including sourcing
of components, welding, assembly and testing
Our Advantage:
1. Sograce International Corporation is a professional PCB and PCBA manufacturer servicing
clients globally for ten years.
2. Sograce International Corporation can meet all your PCB manufacturing needs from single
-sided to complex multi-layered PCB.
3. All orders receive and engineering file review before going to fabrication and download
the industry's best PCB board design software.
4. We have a consistent on-time shipping record and we are now shipping many of our
orders early!
5. In order to response to you promptly, we will reply to your e-mail from 9: 00am to 23: 00pm
by two shifts.
6. We don't have any minimum lot requirements, so you never have to buy more than what
you need.
7. Located miles from Shenzhen, hong kong port, Sograce can provide quick shipping.
Order information:
MOQ: 1pcs
Trade term: FOB, CIF, DDP
Delivery time: 3 working days for sample order, 7 working days for mass order
Packing information
Inner packing: Vacuum packing / Plastic bag
Outer packing: Standard carton packing
LED PCB and assembly Quote needed:
1. LED PCB Gerber File
2. Bom List for LED PCB Assembly;
3. Send us a sample of LED PCB to make the exactly same for you.
4. Test Method for LED PCB Assembly.
Trade Terms:
1. Payment: T/T in advance (Western Union, payple is welcomed)
2. Production lead time 100PCS: 5-7days, 500~1000PCS: 7-10days, above 1000PCS 15-20days.
3. Sample can be delivered in 3days
4. Shipping freight are quoted under your requests
5. Shipping port: Shen zhen, Mainland China
6. Discounts are offered based on order quantities
Linking Operations:

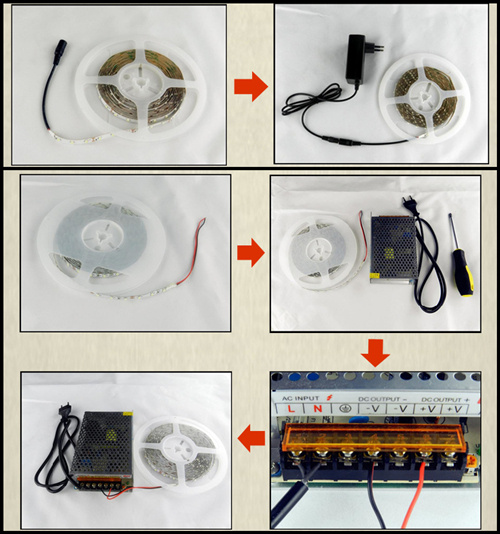

We use wall type power supply for strips that total power consumption is under 25W. This kind of strip is SMD3528 60led, it's 4.8W/m and add to 24W/roll. As the following picture, the strip is connected with a DC female connector, we just need to insert the power supply's DC male in it to light it up.
Also you can use the iron supply to ensure two or three strips at the same time or just to support the longer strip. We need an ex iron supply whose power is suitable for your demand, and a wire with plug in an end, and in the other end the rubber of the wire should be cut off, with copper wire exposed, also a phillips screwdriver.
First, use the screwdriver to loosen the screw, then put the exposed copper wire in it. Second, tight the screw and lay down the yellow cover. Watch out that the single wire should be connected with the L and N screws, and the wires of the strips can be connected with each of the -V or +V screws while obeying the rules that black wire to the -V and red wire to the +V.
Package & Shipping Method:
1. Vacuum package with silica gel, Carton box with packing belt.
2. By DHL, UPS, FedEx, TNT
3. By EMS (Usually for Russia Clients)
4. By sea for mass quantity according to customer's requirement
More info about PCB and PCBA, pls do not hesitate to inquiry now!
| Product Name | CE/ROHS IP 67 5630 RGB Led Light Strip |
| Led Type | SMD5050/5630/2835/3014/4014/3528 |
| Led Brand | Hongli Tronic, Osram, Samsung, Philips, LG, Seoul |
| PCB Dimension | 500mm×25mm×1.6mm |
| Led Number | 30/60/120/1600 PCS |
| Color Temperature | 2700K, 3000K, 4000K, 5700K-6500K |
| Voltage | DC12V / DC24V |
| Power | 7W,9W,12W, 40W |
| Beam Angle | 120 degrees |
| Lifespan | More than 50000hours |
