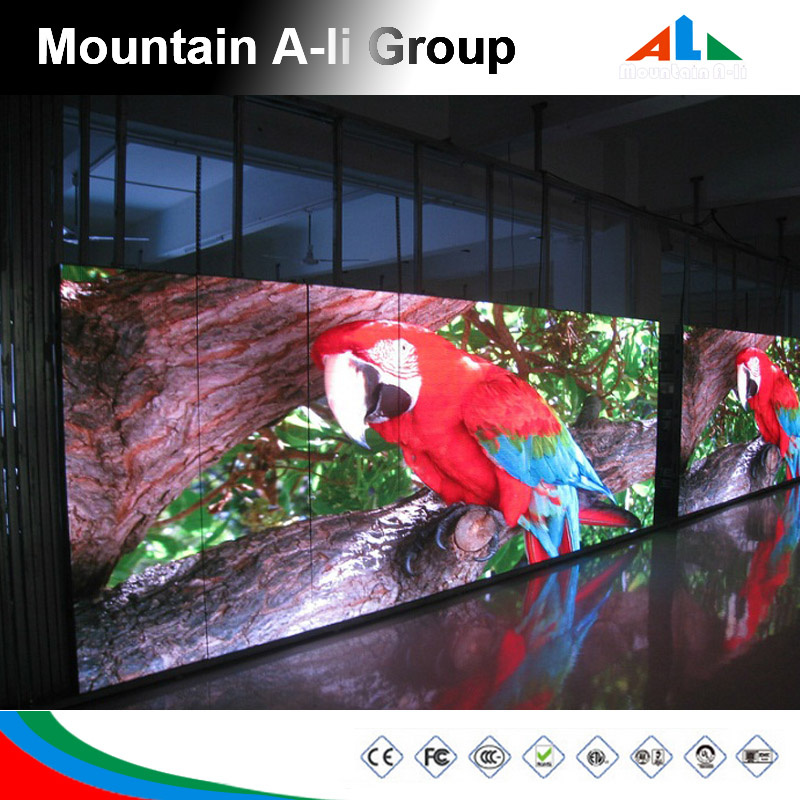

Customized Designed P3 Indoor SMD LED Display

Customized Designed P3 Indoor SMD LED Display
Price: US $ 2200-2500/Square Meter
Trade Terms: FOB,CFR,CIF
Min Order: 1/Square Meter
Pay Type: L/C,T/T,Western Union
Customized designed p3 indoor smd led display


Product Features
Light weight, colors can be customized
Aluminum design, good heat dissipation, no fans, no noise
Assembling high precision, gap control 0.2mm
The cabinet size based on the module size by user-friendly design
Quick disassembly module need only 10s, convenient replacement and maintenance modules
Rugged cabinet structure


Using Range
Widely used in large venue, stadiums, bank, government,
Terminal, dock, station, stock market, medical systems,
Electricity, exhibition etc.
The specifications of module
ItemParameter
Product model P3-16S
Module size192mm*96mm
Pixel pitch  3mm
Pixel density  111111dots/m2
Pixel configuration smd 3in1
Module resolution64dots(W)*32dots(H)
Maximum power consumption18W
Module thickness14.75mm
Module weight0.16kgs
Driving methodConstant current driving
Scan mode1/16 scan
Interface typeHUB75-A
Brightness  ≥ 1500cd/m2
The specifications of cabinet
Cabinet size576mm*576mm
 Module quantity18pcs
 Power supply5V/40A *3pcs
Cabinet resolution  192*192dots
 Optimal viewing distance3m ~ 20m
Optimal viewing angle160°(W) 120°(H)
  System operating humility10%-95%
The specifications of power supply
Operating voltageAC220V±10%
 Average power consumption180W/ m2
 Maximum power consumption≤ 360W/ m2
Current ≤20mA(single LED)
The specifications of control system
ComputerPentium4 or above
Operating system WIN98/2000/NT/XP
Control modelSynchronization control
The specifications of the main technical parameters
 Driving deviceConstant current driving
 Refresh rate≥400Hz
 Grey scaleRGB each 256 grade, can display 16.7M colors
MTBF≥9000hours
Power switchAutomatic switch
Display mode800*600/1024*768

Prod Model: P3 indoor led display
Markets: South America,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia
Module Size: 192X96mm
Brightness: >1500CD/M2
Cabinet Size: 576X576mm
Working Voltage: 220VAC
Optimal Viewing Distance: 3-20m
Optimal Viewing Angle: 160°(W) 120°(H)
Control Mode: Synchronization with PC
Cabinet Resolution: 192X192dots
Lifespan: >100,000hours
Warranty: 2 Years
Tube Chip Color: Full Color
Display Function: Video Display
Scanning Mode: 1/16 Scan
System Operating Platform: WIN XP
Display Type: LED Video Display
Application: Advertising
Certification: FCC,EMC
Pixel Pitch: 3mm
Pixel Configuration: SMD 3 in 1
Pixel Density: 111111dots/M2
IP Rating: IP31
Shenzhen Mountain A-Li Group Electronic Technology Co., Ltd Major In LED Modules and LED Display. Indoor LED Display have P3 P4 P5 P6 P7.62 P10 (Have difference cabinets types ). Outdoor have P6 P7 P8 P10 P16 (Have difference cabinets types ), LED Modules have single color, double color and full color, LED Display Have Indoor LED display, Outdoor LED display, Outdoor LED screen. Indoor LED screen, LED video display, LED Video screen, LED Advertising screen, LED Advertising Screen.

Features:

1) With good lightening accordance and no mosaic

2) LED advertising board can play different formats of image files, flash, WAV/MIDI, video signal from TV, video signal from video and other equipment

3) Different video frequency can be changed freely at the same time, and the image can be enlarged and reduced

4) High brightness, and can be adjustable, meets the need of changing requirement of customer in environment

5) Uses real pixels rather than virtual pixels, better viewing effect

Applications:

LED advertising board wide applied in stadiums, advertising, banks, securities exchange, stations, shopping malls, postal offices, schools, monitoring, restaurants, entertainment, enterprises etc
