Home LED Light Products cUL Osram 5630 Strip LED Light

cUL Osram 5630 Strip LED Light

cUL Osram 5630 Strip LED Light
Price: US $ 9.2-10.5/Meter
Trade Terms: FOB
Min Order: 5/Meter
Pay Type: T/T,Paypal,Western Union
The Venus High CRI LED Strip Series is newly launched contains OSRAM 5630, Epistar 2835, 5050 and 3528 and Lextar 3014.

OSRAM SMD 5630 Flexible Strip is the brightest in single line strip with over 2000 lm flux per meter which is twice as the commonest 5050 (14.4W/M) strip but in the same LED quantity. The costs can be saved significantly.

For the genuine OSRAM SMD 5630, we only selected 2 bins for each color. They are both above the Planckian Curve in Macadam Ellipse. It is much better for LED uv value and color consistency for different batches order.

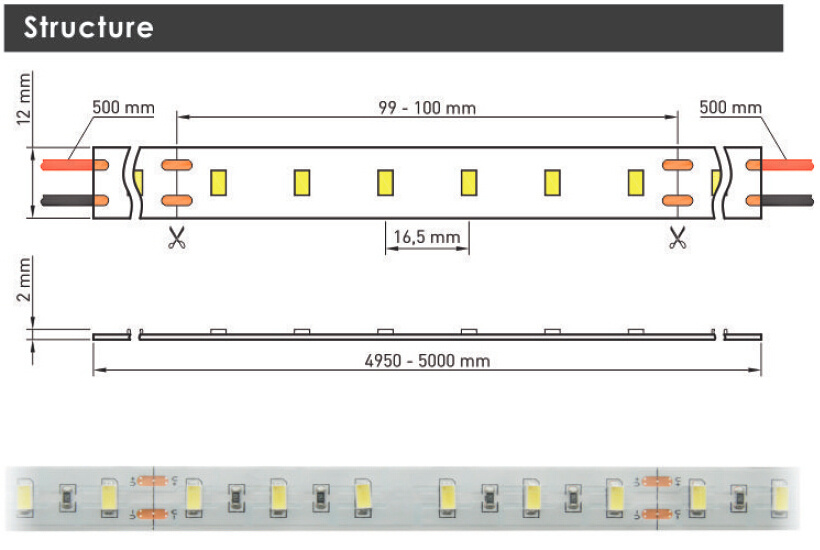

Moreover, to better dissipate heat, the strip was made in a 12mm width, 3.0 oz thick copper PCB. Its amazing colors, premium quality and higher CRI makes it is ideal for you to compete with others in your market.

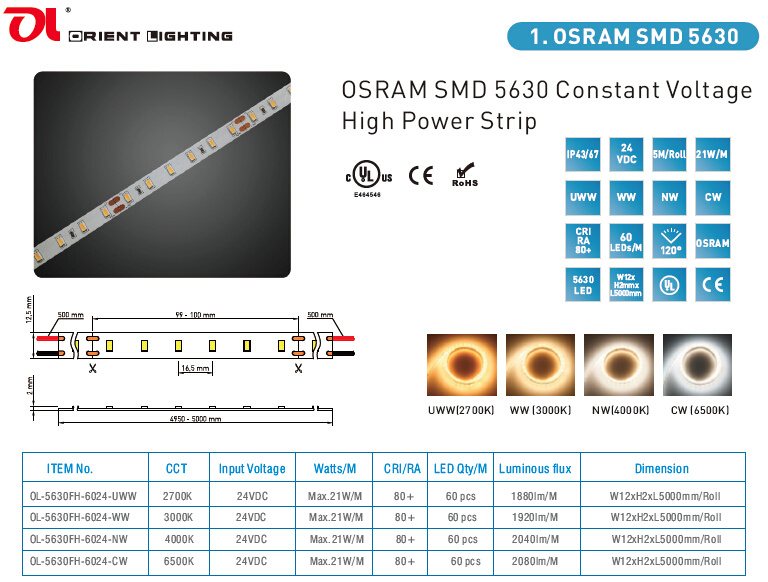

 OL-5630FP-6024-UWW2600KHigh CRI OSRAM SMD 5630 Flexible Strip, 60 LEDs/M, 12/24VDC, Max.21.6W/M, 2100-2300lm/M at White ,120° beam angle, CRI>80, IP43/65/66/67/68, 12mm wide White/Bronze/Black copper PCB,  TESA 4965 back tape, 1x20cm 20AWG 2-pin bare wire, UWW/WW/NW/CW, 5M/Roll.
 OL-5630FP-6024-WW3000K
 OL-5630FP-6024-NW4000K
 OL-5630FP-6024-CW6500K

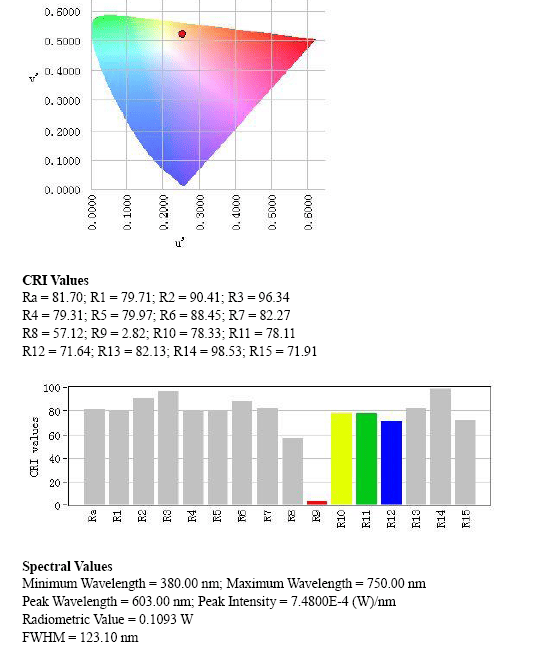

Test Report of OSRAM 5630





Prod Model: OL-5630FH-6024-UWW
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
LED Chip: Osram5630
LEDs/M: 60PCS/M
Lumens: 2100-2300lm/M at White
High CRI: >80 and 90
PCB Wide: 12mm Wide
PCB Color: White/Bronze/Black Copper PCB
Back Tape: Tesa 4965 or 3m
Connect Way: 20AWG 2-Pin Bare Wire
MOQ: 5m/Roll
Warranty: 3-5years
Power: Max21.6W
Emitting Color: Ultra-Warm White
Voltage: 24V
IP Rating: IP43 Non-Waterproof
Orient Lighting Co., Ltd. is a superior LED products supplier and professional lighting solution consultancy originally from Australia.

In the year 2000, Orient Lighting was established in Sydney. After years of experience in commercial lighting, we decided to move our base to China to seize opportunities presented by the country' S demand for quality LED lighting. The LED lighting revolution enabled significant growth that helped us set up a modern LED manufacturing base, a comprehensive Research & Development department in special economic zone Shenzhen and also an executive office located in metropolitan Shanghai.

Our company is specialized in

* Flexible LED strip ribbon in different colors,

* Customized Rigid LED bar or Panel as new lighting source,

* Various type of aluminium profiles work with strip light,

* Wide range of LED controller,

* LED light for illumination such as bulb, tube, downlight and ceiling panel light.

* All sorts LED accessories include LED digital remote control system, Power Supply etc.

Our Certification includes:

Our products now are not only heavily distributed in the Asia Pacific region but have rapidly expanded to Europe and North America. Mutual cooperation provides excellent product quality and premium service at a competitive price. Orient Lighting insists Australian standards in every key link - Experienced professional engineers, an optimized streamlined production technique, fully trained operators, an independent Quality Control unit, a native English speaking sales team, solid cooperative relationships with world class logistics groups, long term warranty and attentive after sales service make us very unique among the others.

Stay with us sure your life will be brighter & colorful.
