LED Crystal Light Box/ poster holder/ LED Sign with Acrylic Frame - Back/Edge Lighting/illuminated acrylic frame tabletop/ wall-mounted/hanging on the ceiling/ led crystal light box frame/
Customized Super Slim LED Crystal Light Box frameless acrylic frame/
Frameless crystal led light box

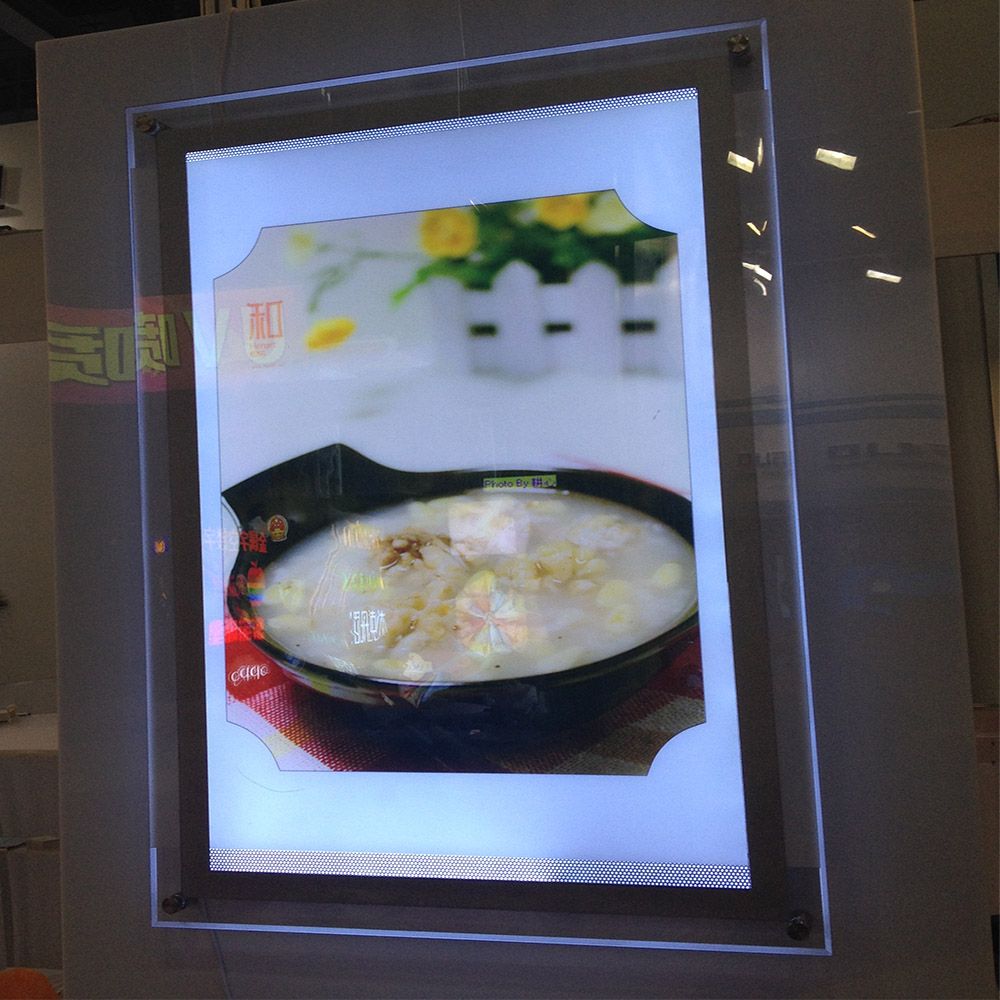

Crystal Light Box LED Advertising Light Box
1.Specification of our Advertising light box:
* Delicate crystal acrylic frame
* Easy to change the poster displayed inside
* Adopt solid Plexglass penel, top-grade eco-friendly laser engraved dots LGP( light guide panel) and high-brightness LED energy-saving light source; uniform light, high brightness and perfect effect for advertising display.( Brightness value: 1000 lumen-5000 Lumen)
* Various placement types, like table top type, wall mounting type, wall hanging type, ceiling hanging type etc..
* Single- side or double-side for option
* Customized size and customized shape available
* Conform to Environment Certification Standards, such as CE,ROHS,SAA,PSE and UL.
* Apply to hotels, studios, families, restaurants, coffee houses,commercial centers,shopping malls, banks and subway,etc.
* Special sizes are available according to customer requirement, and the maximum size is 1200*800mm.
2.Parameter of the Advertising light box:
Single Side LED Crystal Light Box |
| Item | Frame Size (mm) | Poster Size (mm) | View Size (mm) | Power Supply (V) | Weight (KG) | Thickness (mm) |
| A4 | 300x387 | 210x297 | 200x287 | DC12 | 1.6 | 9 |
| A3 | 387x510 | 297x420 | 287x410 | DC12 | 2.7 | 10 |
| A2 | 510x684 | 420x594 | 410x584 | DC12 | 5 | 10 |
| A1 | 684x931 | 594x841 | 584x831 | DC12 | 9 | 10 |
| Double Sides LED Crystal Light Box |
| Item | Frame Size (mm) | Poster Size (mm) | View Size (mm) | Power Supply (V) | Weight (KG) | Thickness (mm) |
| A4 | 510x387 | 210x297 | 200x287 | DC12 | 2.2 | 12 |
| A3 | 387x510 | 297x420 | 287x410 | DC12 | 4.1 | 12 |
| A2 | 510x684 | 420x594 | 410x584 | DC12 | 7.1 | 16 |
| A1 | 684x931 | 594x841 | 584x831 | DC12 | 11.8 | 16
|
1)Material: Acrylic panel, Light guide panel, PVC cover, wires
2)Thickness: 8mm-12mm
3)Benefit: Easy to change poster, low power consumption
4)Light source: SMD LED strip or CCFL
5)Color of light: White, blue, yellow, pink etc, .
6)Voltage: 12V of high-quality transformer
7)Side: Single or double sides
8)Display: Stand on the table, hang on the wall, hang from ceiling
9)Life span: More than 70000hours
10)Technique: Silk-screen or engrave Light guide panel, Logo avaliabe on frame
11)Certification: CE, RoHS, CCC, UL
Features
Crystal LED picture, single/double side design,
Can hanged from the ceiling or be wall mounted.
Can be either vertical ones or horizontal ones.
High glossy acrylic panel and high quality LGP make the light box with most even light distribution.
The image can be changed when setting free the 4 point pins.
Applicable for:
Hotel, bar, fast-food restaurant, company, halls and family, bank, boutique, window, chain-store, wedding photograph, interior decoration, gift show, showcase, product exhibition, etc.
Package:
Individual packing. Each one is wrapped with plastic bag and protected with foams at four corners. Using standard inner box and carton, and wooden case if necessary.
Welcome your kindly inquiry.
We will provide the best quality and competitive price to you!
| 1 | Item | Crystal light box |
| 2 | Type | single side / double sides |
| 3 | Material | acrylic panel |
| 4 | Light source | LED |
| 5 | Hanging | Mounting on the wall or hanging on the ceiling. |
| 6 | Certificate | CE/UL/ROHS |
Guangzhou Glory AD Signs Limited, specialized in producing advertising products and advertising materials, such as Acrylic Shet, Cast Acrylic Sheet, Extruded Acrylic Sheet, Plastic material, LED slim light box, crystal light box, LED luminous letter, mould sucking signage, signboard, acrylic display and etc...
Our factory has owned three international advanced production line of Cast Acrylic sheet, two domestic advanced production line of Extruded Acrylic sheet and two advanced production line of Plastic Material. There is one extruded acrylic sheet new production line which imported from German last year is unique of the highest degree of automation production equipment at home.
We also have owned advanced thermoforming, silk-screen print, metal plate, wooden processing and assemble production line. We are have all kinds of advance machine, Digital printing, Laser engraving, Drilling, Vertical shaft type Trapping, Lathe work, Carving, Special type, Miling machine and complete sets of equipment. As one of production based on advertising products and Display products.
We have given undivided attention to professional Technological Innovation and strict quality control, our factory was the first to passed the ISO9001: 2008 quality control system attestation. The whole process from business negotiation to design scheme, material purchase, mould developing, accessories productions and assemble, up to install, product testing are following with the ISO9001 strictly monitored.
Our products are widely used in financial systems, shopping mall, hotel, metro station, airport, chain-shops, restaurants.
Guangzhou Glory AD Signs Limited, always adhere to the business philosophy of "quality first, customer-oriented, efficiency as the core".
"Making innovation unceasingly, integrative management and mutual benefit" is our principle. Now our products have exported to USA, Canada, Europe, MID-east, Oceania, Southeast Asia, etc in batches.
We sincerely hope to cooperate with you and will make every effort to supply top level products to serve our customers from domestic and overseas.
