Our Company
RS.Trading has its own production plant. With powerful technology strength and advanced twinscrew extruder production line
and automatic detector for support,
independent research and development high quality superior "PANSHI" brand series of products, and to provide users with
customized services.
Specifications
Modified plastic material PA160 filled reinforced for injection molding
1. modified plastic PA6
2. High tensile strength
3. Good dimension stability, heat resistance, aging resistance, wear resistance.
4. Anti-static, self-lubricating
5. Below 10KGS, sample is free

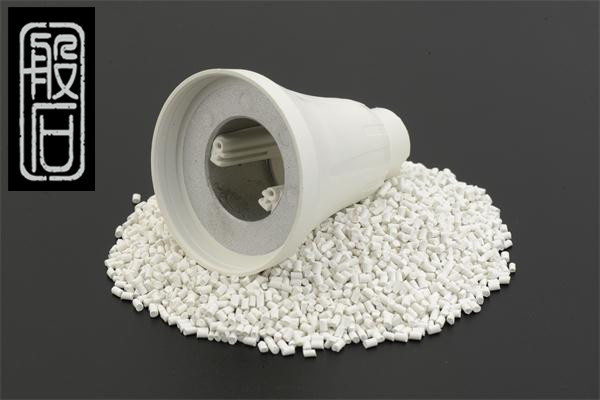

PA6 Advantages for Heat Sink
1. High strength.
2. High thermal conductivity.
3. Level of flame retardant: UL94-V0.
4. Suitable for large area, high-power LED products.
5. Light weight, the density is about 1.4g/cm.( aluminum 2.7g/cm).
6. Processing is simple, the production is good, through the mold injection molding process, molding cycle is usually within 10s.
7. Insulation: you can remove the power insulation casing design, so as to reduce the cost of the system.
8. Green environmental protection, comply with the UL certification.
Test Report
TEST ITEMS | TSET METHOD AND CONDITIONS | TEST RESULTS |
TEST METHOD | UNIT | CONTITIONS |
Density |
| g/cm3 |
| 1.75 |
Tensile shrinkage |
| MPa |
| 75 |
Thermal conductivity |
| W/mK |
| 1.0 |
Flexural Strength |
| MPa |
| 115 |
Flam Rating-UL |
| UL-94 |
| V0 |
Linear mold shrinkage yield |
| % |
| 0.2 |
Heat distortion temperature |
| °C | 4.6kg/cm2 | 245 |
