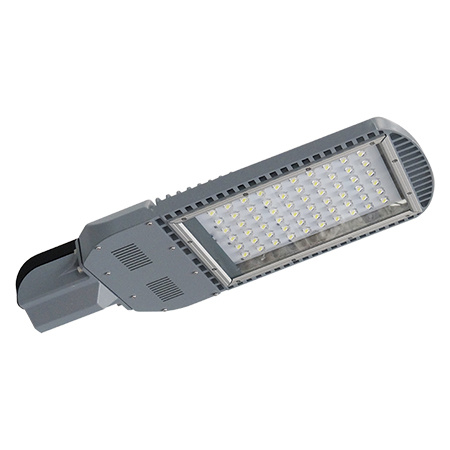

Competitive 240W LED Street Light with CE

Competitive LED Street Light with CE

Features:
Wuhan Sunshine BRT New Energy's LED Street light series is an amazing combination of technical innovations, including breakthroughs in electronics design, mechanical design, and thermal management. The core of the innovation is a new way to generate bright light with LEDs to perfectly replacing the traditional HPS fixtures.
Applicant: Highways, Pedestrian, park and outdoor light project.
Typical Application: Highway, main street, normal road, laneway, bridge, park, yard, plant area, plaza, garden, and parking area.

Power Consumption: 215W;
LUMINOUS FLUX: 17000LM;
INPUT VOLTAGE: 100-240V, 50/60Hz;
CCT: 5000-6000K;
BEAM ANGLE: 150° X60° ;
LIGHT SOURCE: 180X1W HIGH POWER;
CRI≥ 70; PF≥ 0.95;
IP Rating: IP66
ARM DIAMETER: 50~70MM;
OPERATING TEMPERATURE: -40° C~+50° C;
DIAMETER: 50~70MM;
OPERATING TEMPERATURE: -40° C~+50° C;
Life Time: 5 Years
REPLACING 430W HPS

Primary Competitive Advantages:
* LED: Choose high-quality LED, good monochromaticity, soft light, and high light efficiency
* Power supply: Choose world brand power supply, the main features are: High efficiency, long lifespan, constant current and voltage, which can make sure the light's safety work
* Heat sink: Uses high-thermal conductivity Aluminum and magnesium alloys heatsink, sound heat dissipation design, which is not only the premise of the long lifespan, but also the indemnification of the stable working of the system
* Structure Design:
Patented product with thin and light fashionable appearance
Housing shell and cooling section all-in-one
It reduces light weight to reduce post load
Decreasing windage resistance helps to increase safety
Using high-thermal conductivity aluminum heatsink makes good heat dissipation
Used for high thermal conductivity aluminum as main body, nice stretch, helical heatsink and increase heat area effectively
Appearance using oxidation process, corrosion-resistant and heat-dissipation
Using secondary optics technology makes the light efficiency more than 90%
With imported LED chip, high brightness and low heat, it saves 50% energy than HPS
Green environmental protection, with no lead or mercury
Lifespan is more than 50, 000 hours, saving cost on changing lights
Strictly inspected and passed CE certifications


Main Features:
*Unique secondary optical design
*Patent shape design, automatic clean function
*Adopts high light efficiency led chip, and patent heat dissipation technology, feature with high light efficiency, low light decay and long lifespan
*Normally, use semi LED from Taiwan, could use Cree if customers need
*Uniformly distributed light and color, Very even light distribution and high uniformity, no glare to eyes
*High light efficiency
*Excellent thermal control
*Reliable qualities, use MEANWELL power supply, Compliant with CE standard
*-50-60° C Working temperature
*Low light decay: Lumen-drop at 5% after the 1st year, 10% after 3 years and 15% after 5 years
*Accurate constant-current driving with current fluctuation less than 1mA
*Energy-saving, Substantial energy-saving more than 50% compared with HPS lamp
Environment-friendly
*Easily and fast install, idea replacement of traditional lamp
*Long lifespan, Offer three to five years warranty
*High-power factor to minimize the harmonic distortion: High power factor: More than 95%
*Patent modularity structure design, easy installation and maintenance
*Low maintenance costs

P OWER	21 0W
LUMINOUS FLUX	200 00LM
INPUT VOLTAGE	100-240V, 50/60Hz
CCT	3000-6000K
BEAM ANGLE	1 4 0 ° X  60 °
LIGHT SOURCE	HIGH POWER LED
CRI	≥  70
PF	≥  0.95
IP Rating	IP6 5
DIAMETER	954X380X112mm
OPERATING TEMP .	-40 °  C~+50 °  C
LIFESPAN	3  Y EARS
REPLACING  TRADITIONAL	30 0W HPS
