Home LED Light Products Common Use Indoor Full Color Advertising LED Display

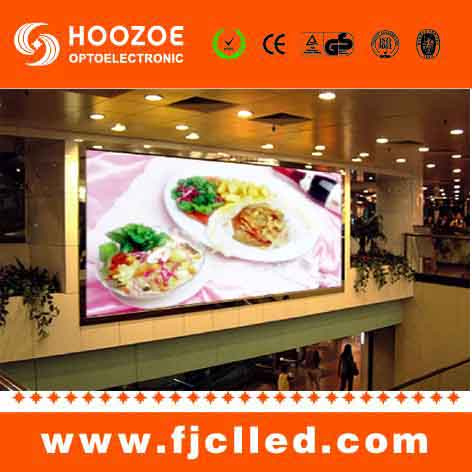

Common Use Indoor Full Color Advertising LED Display

Common Use Indoor Full Color Advertising LED Display
Price: US $ 740/Square Meter
Trade Terms: FOB,EXW
Min Order: 100/Piece
Pay Type: T/T,Western Union
Quality LED Display, LED Video Wall. High Resolution, High Brightness, Stable Quality and Energy-saving. CE, RoHS, FCC Certificate

FUJIAN HUAJIE OPTOELECTRONIC CO., LTD

Fujian Huajie Optoelectronics Co., Ltd, located in Quanzhou, Fujian Province is one of the leading professional high-tech enterprises which specializes in LED display with registered capital 30 million RMB. After ten years' efforts, we have become one of the most professional global LED product suppliers which can provide the best LED solutions for customers, with covering an area of over 60000 square meters and more than 1300 staffs. Also, we have built our manufacturing base Channel Cailiang Optoelectronic Co., Ltd in Yunxiao, Zhangzhou, the Chinese Optoelectronics Realm. At present, we have one skilled R&D team and a production line of highest automatic degree; Our production capacity can be up to 50, 000 pieces or 2, 500 square meters per day. Our LED products have achieved ISO9001-2008, 3C, CE Certificate, etc.
Now, at home we have built a thorough marketing and sales service system; Meanwhile, our products have sold to more than 50 countries and areas, such as Russia, Turkey, USA, Canada, etc.

Our products cover indoor and outdoor full color LED screen, cabinet module, panel, and LED bare lamp.

Our LED products have the below advantages:

1. Tube chip: The chip brand is Epistar; The size is over 9 mils; Compared with other manufacturers, the lifetime is longer.

2. Mask: The unique design with patent makes it more orderly and better visual effect as well as better waterproof effects. The screw is longer than others, which can prevent the mask falling off.

3. The PCB board is thicker than others, which can postpone corrosion. Also, cement conduct can be waterproof.

4. Every panel is equipped 2 capacitors, which can ensure the voltage stability.

5. Famous IC brand is adopted, whose quality is guaranteed.
Indoor  P7.62  Full  Color  LED  Display
Pixel Physical  pixel  pitch:   7.62   mm
Module Module  resolution:   32   x  32  pixels,   32  x  16  pixel
Module  size:   244   x  244  mm, 244mm  x  122m
Cabinet Cabinet  size:   732mm  x732mm
Material:   Mild  steel/Aluminium  alloy  (corrosion  resistant)
Power  supply:   3pcs  5V-80A;   Thermal  discharge:   Fan  2pcs
Main  Technical  Parameter Brightness  (  White  Balance):   > 2000  nits
Brightness  adjusted:   256  grade  by  software,   or  by  Auto-optic  induced
Color  temperature(k):   2500  _  4500  (adjustable)
Physical  density:   17222pixels/m2
Whole  display  flatness:   ≤   0.5mm  juncture
Best  view  distance:   7--21m
Best  view  angle:   Horizontal  ± 120° ,   Vertical  ± 120°
Storage  temperature:   -35° C  ~  +85° C  Working  temperature:   -20° C  ~  +60° C
Driving  method:   Constant  driving  current,     Scan:   1/4  Scan
Refresh  frequency:   ≥   3000Hz  ;   Frame  rate:   ≥   60Hz
Humidity(RH):   10  ~  95%
Working  Voltage:     AC  110v/220v±   10%    47~64Hz
Short    circuit    protection:   Yes
Max  power  consumption:   1000  w/m2;       Avg  power  consumption:   300  w/m2
Screen  lifetime:   100, 000  hours;     MTBF:   10, 000  hours
Control  System Operating  system WIN2000/NT/XP/Vista/WIN7
Control  method Synchronization
Signal  interface:     RF, S-Video, RGB, RGBHV, YUV, YC, SDI, HD-SDI, DVI, UXGA, etc.
Communication  distance:   Internet  cable:   ≤   100m/  Fiber  cable:   1000m
Prod Model: CL-P7.62RGB
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Module Size: 488mmx244mm
Module Resolution: 64 X 32pixel
Module Weight: 0.65kg
Best View Distance: 6--24mm
Viewing Angles: H120°/V120°
Gray Scale: 4096 Grades Gray
Life Span: 100000 Hours
Control System: Synchronization
Warranty: 3 Years
Electronic LED Matrix Display Screens: Custom LED Sign
Display Function: Video Display
Scanning Mode: 1/16 Scan
Brightness: 2500 cd / m²
System Operating Platform: WIN XP
Pixel Pitch: 7.62mm
Pixel Density: 17222 dots/m²
Pixel Configuration: 1R,1G,1B
IP Rating: IP28
Channel Cailiang (Zhangzhou) Optoelectronic Co., Ltd. is one of the biggest LED manufacture in China. Our factory have 30 PCS production line for Outdoor DIP Modules, 5 PCS line for Indoor SMD products and more than 1, 500 skilled workers. Our R&D team are comprised of a crew of 10% of total staff and most of engineers have more than 5 years experience in LED industry, which great support our new products developing or customized products according to customers' requests.

Our Main Business is Produce various LED Display Module and LED Display Panel for Customers' assemble. It' s avaliable supply all the components for assemble LED Display or LED Message Signs. Besides, we focus on offering whole proposal for LED Display Projects and Solutions. Not only for regualr type, we have continuously developed several Profiled Screens and achieved some proud success in developing Traffic Wireless Solution Display Screens.

In order to design and develop higher quality products, our R&D team always tries best to meet the US&Euro-standards for Electronic products, as well as to fulfill the special requirements from customers. Our products have been approved the German TUV- EMC Certification and Euro EN12966 Certification, and we have also achieved ISO9001: 2000, CCC, CE, FCC, RoHS Certifications.

with perfect designed products, integrated solution including both hardware and software, and superior product and service guarantee, Cailiang has been highly praised by domestic and overseas customers. We have been shipping qualified products and services to more than 50 countries and regions all over the world, such as in the USA, Japan, Russia, Sweden, Turkey, Poland, France, Israel, Argentina, Spain, Italy, etc.

We value the power of cooperative team work, we take "Quality & Honesty" as our belief, and "Being the Largest Global Supplier of LED display Solution" as our goal.

"Channel Cailiang" Sincererly Invite your participation!
