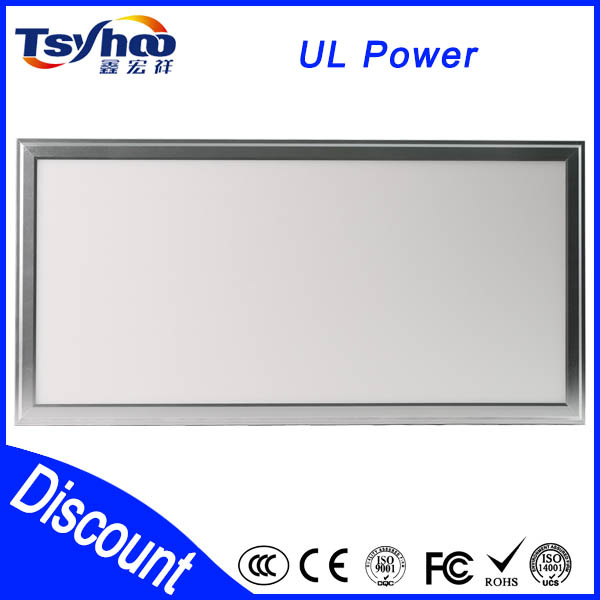

Commercial LED Panel Light 600 1200 LED Light Panel
Price: |
US $ 60-65/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
10/Piece |
Pay Type: |
L/C,T/T,Western Union |
Detailed information please leave a message to us, we will give you reply immediately and give you the most satisfactory answer.
Our company specializes in the production of bulb lightings, tube lightings, mining lights, down lamps, panel lamps and FloodLight, we have strong technical force and advanced production equipment.
If you need other products, please contact us, we can according to your request made for you.
LED panel light, panel light, LED panel
Main Features
1) Dimensions: 1200*600mm
2) Luminous flux: 5160lm
3) Color Temperature: 5500-6000K, other CCT availabel.
4) With infrared remote dimmer for dimming 0~100m
5) Can be ceiling or wall surface-mounted
6) LED driver fixed outside and Ultra-slim and low-profile
7) Worldwide AC input woltage
Application
1)Commercial Lighting
2)Office Lighting
3)Warehouse Lighting
4)Supermarket Lighting
5)Large-scale building
6)Gymnasium
Details:
1. LED panel is a kind of advanced indoor light, which inherits the characteristics of simplicity and classics of Europe style, creating a strong sense of depth and space, when it is applied indoor, such as in meeting room, VIP reception room, and hotel etc.;
2. The frame is made of 3060 aluminum alloy with anodic oxidation treatment, which is good in heat dissipation. Light source 5630 LED with flat lighting effect when the light passes through the light guide plate;
3.2-year warranty; MOQ=1PC; 5-7 days lead time; CE approved;
4. Plug-in Connection between driver and cable, easy maintenance and strong connection;
5. Ceiling and Pendant Installation Optional; Easy installation;
6. Matt glass anti-glare; Well-proportioned, soft, comfortable and bright. No flash and less asthenopia;
7. No delay start. It can reach its normal light as soon as it is turned on, avoiding the long-time start process of the traditional light;
8. Green and Environmental Protection: No lead, no mercury, no environmental pollution.
Model | Normal Power | Maximum power | LED Chip Brand | Beam angle | Voltage | Color Temperature | Size |
XHX-PL2020 | 9W | 12W | Epistar | >150° | AC85-265V | 3000K/5000K/6500K | 200x200x12mm |
XHX-PL3030 | 12W | 36W | Epistar | >150° | AC85-265V | 3000K/5000K/6500K | 300x300x12mm |
XHX-PL3060 | 18W | 36W | Epistar | >150° | AC85-265V | 3000K/5000K/6500K | 300x600x12mm |
XHX-PL15120 | 36W | 48W | Epistar | >150° | AC85-265V | 3000K/5000K/6500K | 150x1200x12mm |
XHX-PL30120 | 36W | 72W | Epistar | >150° | AC85-265V | 3000K/5000K/6500K | 300x1200x12mm |
XHX-PL6060 | 36W | 72W | Epistar | >150° | AC85-265V | 3000K/5000K/6500K | 600x600x12mm |
XHX-PL60120 | 54W | 100W | Epistar | >150° | AC85-265V | 3000K/5000K/6500K | 600x1200x12mm |
Prod Model: |
XHX-PL60120-56W |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Name: |
1200*600mm LED Panel |
Input Power: |
54W |
Input Voltage: |
220V |
Color: |
White |
Size: |
1200mm*600mm |
Color Temperature: |
2700k~6000k |
Working Temperature: |
-20~55 Centigrade |
Chip: |
Epistar |
Certifiction: |
CE, RoHS, UL |
Application: |
Housing Decoration, Business Using |
Light Source: |
LED |
Appearance: |
Square |
Type: |
Embedded |
Emitting Color: |
White |
Certification: |
RoHS |
Housing Material: |
Plastic |
Base Material: |
Metal |
Voltage: |
100-240V |
Dimmable: |
Without Dimmable |
Beam Angle: |
120 |
Xinhongxiang Optoelectronics (Shenzhen) Co., Ltd. As one of the most leading LED Products manufacturer in Shenzhen China, covering 10 000 square meters, register capital high up to 30 million CNY, is one high-tech enterprise focus on researching, producing, sale and service of LED products, . Nowadays Xinhongxiang owns fully automatic production lines, independent purifying workshop, researching center, most advanced production and inspection equipments, which guarantee the quality of the LED products. All the products have exported more than 100 countries, such as USA, Mexico, Canada, Brazil, Chile, Argentina, Panama, Colombia, Germany, France, Sweden, Italy, Spain, Russia, Poland, Turkey, Ukraine, South Africa, Egypt, Saudi Arabia, Singapore, Thailand, India etc
Developing History:
From 1996 to 2010, Xinhongxiang Optoelectronics (shenzhen) Co., Ltd, mainly involved in LED encapsulation and LED Display.
Since 2010, owe to enlarge the company scale and build up self-owned brand, Xinhongxiang focus on LED lighting, Shenzhen BESDLED Co., Ltd focus on LED display, business involved in indoor and outdoor LED Encapsulation, LED Display and LED Lighting Products.
LED Display:
Full Color Indoor and outdoor LED Display, single or dual basic color LED signs, LED Curtain, LED Dance Floor, Rental LED Display,
LED Lighting:
LED Bulb, LED Tube, LED Spotlight, LED DownLight, LED Panel Light, LED Street etc,
Comparing with many of LED Manufactures, xinhongxiang owns the following advantages to be your best choice for long term cooperation partner.
1, Fully automatic production lines
Xinhongxiang owns the entire LED manufacturing line, from original Semiconductor to LED chip, then assemble to LED display and LED lighting products.
2, Advanced production equipment
SMD/DIP die bolder, SMD/DIP wire Bolder, Auto Machine of Pouring Glue for SMD/DIP LED, Spectrum and Color Separation Machine, LED oven, Wave solder, Reflow soldering, Spectrum electronic and color tester, temperature and humidity programmable tester, luminance meter etc. Are equipped for our LED Product production.
3, Many Certification approved to clear up the trade barriers
CE, FCC, UL, RoHS, CCC, ISO9001: 2000 etc are obtained.
4, Strong R&D Team
Xinghongxiang absorb many talents, with more than 500 staffs, and including more than 100 engineers and technician, which paves the way for R&D for new products and excellent sales service
5): After-Service,
Principles: Response in time, solve problem ASAP and ensure the use.
Period: During warranty period, free of all maintenance charges;
After Warranty, only charge the material cost.
All the life time, Technology support is free.
