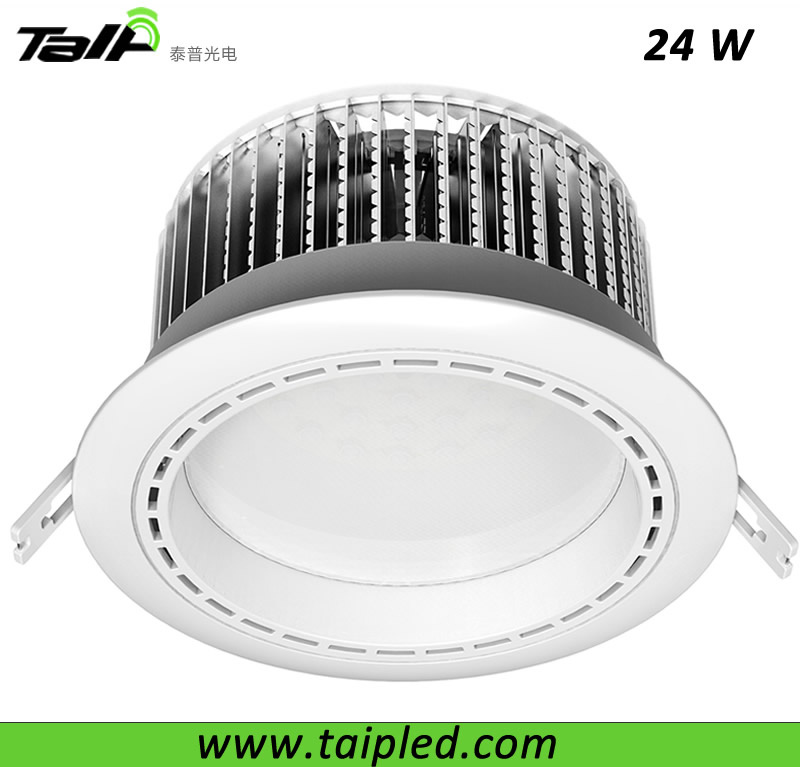

COB LED Downlight 6 Inch LED Ceiling Down light, High power 6 inch 8inch LED ceiling downlight
1. LED down light 24W 6inch
2, 6 inch 8inch COB LED downlight is available
3. Dia198xH108mm, 2400LM
3. Epistar LEDs
4. Warranty 3 Years
Product name: COB LED Downlight 6 Inch LED Ceiling light(LED down light)
Specification of 24W COB LED downlight(LED COB downlight)
1. Model: SP-FC-DL-24W
2. Input Voltage: AC85-265V
3. Working Current: 300mA
4. Chips Brand: Epistar
5. LED Qty: 1PCS US Bridgelux COB LED downlight or 24PCS *1W LED downlight
6. Dimensions: Dia195 X H105mm
7. Body Material: Aluminum + Lens
8. Colour Temp.: Warm White: 2800-3000K, Cool White: 6000-6500K
9. Luminous (lm): Warm white: 2000-2100LM, Cool White: 2200-2400LM
10. CRI: Warm white: 80 Ra, Cool White: 75 Ra
1. What is Advantage for Fans-Cooling body?
1) Working temperature: Compared to traditional LED heatsink, The Fans-Cooling dissipating area is bigger, air convection is better, the temperature will be lower at least by 8º Than commom design
2) Weigh Light: The weight ofthe cooling structure is lighter, ony 50%-60% of the traditional cooler
3) Appearance: Delicate and beautiful appearance
2 COB LED Downlight Feature
1). Appearance: Milk white, the same with housing finish color, creating a mood that is warm and cozy.
2). Material: Adopt fire-proof material and new fans-cooling body design.
3). Lens: Import Acryl material, light transmittance up to 95%, Not dazzling, No shadow, thickness only 2mm, emitting light very sofe. Emitting angle about 120-140 degree.
4). LED: It made of 1W high power Bridgelux LED. Efficiency is 110-120LM/ W
5). Driver: Input 85-265V, Adopt series circuit, with function of automatic protection circuit
Packaging Details of 24W LED downlight/LED ceiling light
Inner carton: L210xW210xH140CM
Outer carton: 70X45X47CM
PCS/carton: 18PCS
Carton weight: 20KG
Trade terms of 6 inch LED downlight
1, Payment: L/C T/T, 30% deposits, before the ship to pay the balance end.
2, Delivery time
3, Samples can be delivered in 3days.
4, Freight are quoted under your requests.
5, Shipping Port< Shenzhen, China(Mainland).
6, Discounts are offered depend on quantities
7, MOQ: 1pieces.
LED ceiling light 24W of Application
Application
1) Supermarket, Hotels, Hospitals
2) Factories & Offices
3) Residential / Institution Buildings
4) Icebox showcase
5) Schools, Colleges & Universities
Model No. |
TP-FC-DL-24W |
Description |
24W CREE LED downlight |
Led Quantities |
24pcs*1W |
LED |
Cree/Osram/Edison/Epistar |
Input Voltage |
AC 85-265V |
Light Efficiency |
≥95LM/W |
Led Driver |
PFC>0.98, Power Efficiency > 0.88 |
CRI |
75-85 |
Material |
Aluminum+Lens |
Instrallation Way |
Recessed |
Drilling hole |
125mm |
Beam Angle |
8/15/25/38/45/60/90/105 degree |
Frequency |
50/60 Hz |
Working Environment |
-30°C_+55°C |
Life time |
>50,000 hours |
Protection Grade |
IP44 |
CCT |
2800-7000K |
Warranty |
3 years |
Fixture Size |
Φ 145 x H65 mm |
Model |
Size(MM) |
Power(W) |
Lumens |
Drilling Hole |
TP-FC-DL-3W |
Φ 110 x H55 |
3W |
300 |
3 inch / Φ 90-100 |
TP-FC-DL-7W |
Φ 145 x H65 |
7W |
700 |
3 inch / Φ 90-100 |
TP-FC-DL-15W |
Φ 145 x H65 |
15W |
1450 |
4 inch / Φ 120-130 |
TP-FC-DL-24W |
Φ 195 x H105 |
24W |
2300 |
6 inch / Φ 180-190 |
TP-FC-DL-36W |
Φ 240 x H90 |
36W |
3500 |
8 inch / Φ 210-220 |
