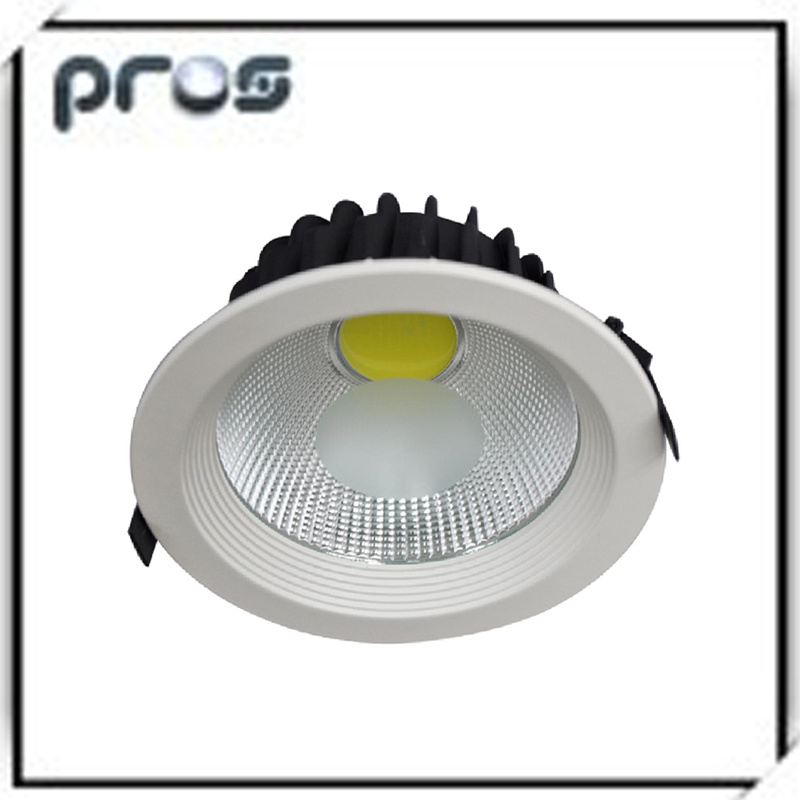

30w led down light / LED down light & lamp / LED spotlight /
Main Features
1. Soft light and lighting evenness, no dazzle, no flickering and no radiation.
2. Aluminum alloy shell, have good heat dissipation function
3. High efficient, and save 80% more energy compared with traditional lighting fixture
4. Long life span, it is up to 20times conventional incandescent lamp and 4times fluorescent lamp.
5. Unique optical design, no light pollution, glare-free, uniform light field, no strobe
6. Above 80% power efficiency
7. Good color performance, close to natural light
8.2700K-7000K wide range color temperature
9. Isolated low-voltage constant current driver, security, stability, reliability
10. Green, lead-free, no UV radiation
11. Significant energy savings, saving more than 90% saving rate compared to conventional tungsten incandescent lamps, more than 70% compared to fluorescent lights.
Typical Applications
1. Retail lighting
2. Shop window lighting
3. Ceiling lighting
4. Office lighting
5. Commercial lighting used in Bank, restaurant, hotel etc.
Installation
1. Switch off the power before replacing the lamp
2. Keep away from direct sunshine and high temperature
3. Indoor use only
4. If any doubt about the installation or use of this product, consult a competent electrician
5. Using environment: -20degree to 45degree
|
Item No. |
Light Source |
LED Consumption |
Lumen |
Size B |
cutout size A |
Color |
Input Voltage |
|
PL-D-WB3W |
1pc 3W COB LED |
3W |
240lm |
105mm |
90mm |
2700-7000K |
85-265VAC |
|
PL-D-WB5W |
1pc 5W COB LED |
5W |
400lm |
120mm |
110mm |
2700-7000K |
85-265VAC |
|
PL-D-WB7W |
1pc 7W COB LED |
7W |
560lm |
120mm |
110mm |
2700-7000K |
85-265VAC |
|
PL-D-WB10W |
1pc 10W COB LED |
10W |
800lm |
148mm |
135mm |
2700-7000K |
85-265VAC |
|
PL-D-WB15W |
1pc 15W COB LED |
15W |
1200lm |
170mm |
150mm |
2700-7000K |
85-265VAC |
|
PL-D-WB20W |
1pc 20W COB LED |
20W |
1600lm |
200mm |
170mm |
2700-7000K |
85-265VAC |
|
PL-D-WB30W |
1pc 30W COB LED |
30W |
2400lm |
225mm |
210mm |
2700-7000K |
85-265VAC |
Pros Light is an established high-tech factory specialized in the research, development, engineering, and marketing of LED based lighting solutions. We have professional engineers always staying at the forefront of LED technology. We are especially well-placed in the field of Power LED thermal management and related lighting solutions.
Our product range:
1. LED Street Light
2. LED Bulb & Spotlight
3. LED Downlight
4. LED Panel
5. LED WallWasher & Floodlights
6. LED Explosion proof Light
7. LED High bay light
8. LED Tube T8
9. OEM & ODM Projects
