IGrid Overview:
IGird is a led strip curtain display with light and thin body. Transparent design, the easy, firm and correct installation can be done with one people operation. The special design of electronic elements inside makes iGrid more waterproof and shockproof. SMD 3in1 leds and static constant drive, high brightness, high refresh rate, high gray scale all make iGrid led curtain a number one choice for indoor and outdoor large-scale stage design.
Main Advantages:
1. Light, suitable for touring shows, convenient in transporting and jointing.
2. Strong and nice-looking structure.
3. Two size with 900x600x85mm and 600x600x85mm for different demands.
4. IP 65 for temporary outdoor use, makes it possible to work no matter in rainy days.

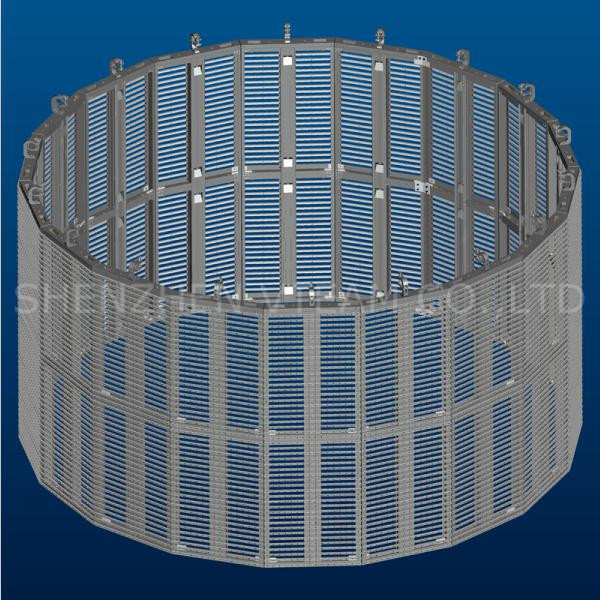

5. Can achieve any arc-shaped with ± 10° .
6. Easy and correct installation can be done with one person tool free operation.
7. High transparency for light, smoke and sound on stage going through.
8 Personalized operation interface, power and signal lights for debugging.
|
Items |
Parameters |
|
Model |
iGrid-P15 |
|
Pixel pitch |
15mm |
|
Pixel density |
4444 pixels/M2 |
|
Pixel configuration |
SMD3535 RGB 3IN1 |
|
Module dimension |
600x900x85mm |
|
LED lamps |
Silar or Epistar |
|
LED Chip |
Silar or Epistar |
|
Power supply |
Meanwell or G-energy with UL certificate |
|
Brightness |
5000-6000nits, adjustable |
|
Best viewing distance |
Min 10 m, it is based on the specific viewing environment |
|
Driving mode |
1/6 scanning, constant current;MY9108 |
|
Transparency |
50% |
|
Power consumption |
Average: 480 W/M2; Max: 900 W/M2 |
|
Viewing angle |
Horizontal: 140 degree; Vertical: 140 degree |
|
Grey scale level |
16 bit |
|
Refresh rate |
1800Hz, adjustable |
|
Life time |
50,000 hours(to>70% luminous output) |
|
Input voltage |
110~ 240 VAC, 50/60 Hz |
|
Operation humidity |
10%~90%RH |
|
Temperature |
-20ºC_+50ºC |
|
Potection level |
IP65 |
|
Application |
Outdoor;rental&fixed use |
|
Control system |
Nova,Ydea(showbox)Linsn,PC based dynamic capture&mapping |
|
Weight |
25kg/M2(including receiving card&power supplier) |
|
Display Media |
Text, Animation, Graphic, Video, etc. |
|
Signal |
DVI up to UXGA, HD-SDI, S-video, Composite, YUV(video processor) |
|
System operating platform |
WINDOWS 98, WINDOWS 2000, WINDOWS XP, WIN7 |
|
Certification |
CE&RoHs |
