Feature:
1, RGB tricolor 37*9W LED moving head wash
2, High power, Mini body
3, Fast response, wonderful effects, 21CH
4, LCD display
5, Low price, Good quality
6, With CE,ROHS certification

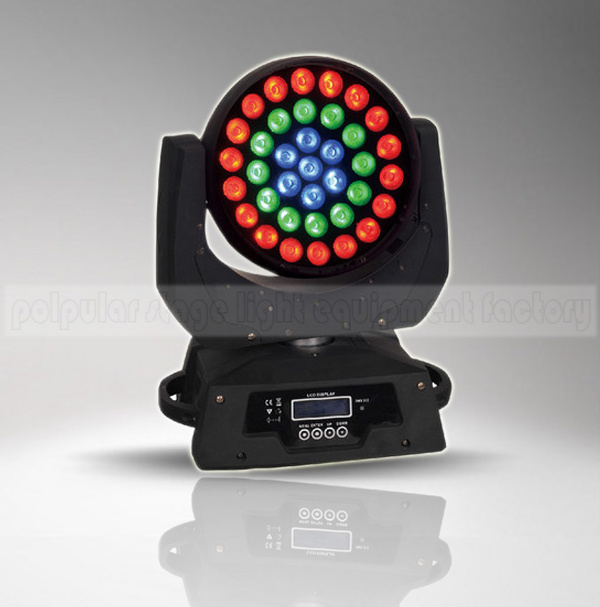

37PCS X 9W 3-in-1 LED DMX Moving Head Stage Light
Voltage: AC 90-245V, 50-60Hz
Lamp: 37PCS 9W 3-in-1 RGB
Rated Power: 360W
Control Signal: 13/21 CH
Install with 37 LED Lamps, the power of the products reaches 360W
The average life time of each LED reaches 100, 000 hours
Low power consumption
Super luminance, comparable to the efficiency of halogen dischage lamps, rich and splendid color
DMX-512 control signal, 13/21 standardchannels
The housing is made of streamline fashionable PC engineering
Plastic of afer once casting
Wide range super tiny smooth scanning, horizontal scanning
Angle reaches 540, and vertical 270, the scanning precision
Reaches 8bit and 16bit, with smooth and precise postioning
Additionally, the scanning speed is adjustable
Infinite RGB color mixed system
The light beam angle can be 15, 25, optional
Hight speed electronic strobereaches 1-18 times/second
Size: 380X350X450mm
N/G Weight: 10.0/12.0KG
DMX Channel:
| CH 1 | X 001--255 |
| CH 2 | Y 001--255 |
| CH 3 | Open dimmer 001--255 |
| CH 4 | Strobe 001-255 |
| CH 5 | Dimmer speed(from fast to slow) 001-255 |
| CH 6 | R1 001-255 |
| CH 7 | G1 001-255 |
| CH 8 | B 1 001-255 |
| CH 9 | R2 001--255 |
| CH 10 | G2 001-255 |
| CH 11 | B2 001-255 |
| CH 12 | R3 001-255 |
| CH 13 | G3 001-255 |
| CH 14 | B3 001-255 |
| CH 15 | X16bit 001-255 |
| CH 16 | Y16bit 001-255 |
| CH 17 | XY scan speed 001--255 |
| CH 18 | Macro function 1(gradual change from 8S to 1S)
0-10: no function 11-44:7 color 45-96:Jump color 3S 97-148:gradual change 3S 149-200: 7color junp 201-252:7 color gradual change 253-255: All color bright |
| CH 19 | Macro function 2 (Gradual change from 8s to 1s)
per 16 data one function 0-149 Need to cooperate R1-B3 to edit the function 150-255 Macro function 2 |
| CH 20 | Macro speed 001--255 |
| CH 21 | 125-127 3S Reset ,130-150: Auto mode 1,250-255: Auto mode 2 |
