Founded in 2005, the top 3 in Fujian, China. With registered capital 20.18 million RMB, workshop
Covering area 40, 000m2 and independent living and production places. Quanzhou New Branched
Factory founded in2013, Total area 20, 000 m2.
Why choose us:
Product advantages:
1. Price Advantage: We have the best competitive price at the market, also have the same even better quality.
2. Quality advantage: From material to finished product, from design to produce, we control all steps
3. Service advantage: Better service at same situation, better cooperation at same service.
4. We ensure that our products are the CE certified, RoHS compliant, FCC identified and passed the system of ISO 9001.
Products list:
1. P3\P4\P5\P6...Indoor full color LED display;
2. P10/P12/P12.5/P16/P20/P25...Outdoor full color LED screen;
3. Indoor/outdoor/semi-outdoor single/dual color LED panel etc.
FYI: We would like to know more details before offering you the best quotation.
1. What is screen size and what cabinet you prefer.
2. What is the best viewing distance with your project.
3. For fixed or rental installation.
4. When do you need to get goods and is it urgent or not.
5. Any special requests such as video processor, hanging bar, flight case for package.
Please advise it as well.
FAQ:
1. Are you manufacturer? If yes, in which city?
Yes, we're factory with 23, 000 square meters. And we're in Quanzhou city, Fujian Province.
2. Can I visit your factory?
We warmly welcome customers visit us. Before you come here, please kindly tell me your schedule, we can arrange for you. The nearest airport is Jinjiang airport, but there are more airplane in Xiamen airport.
3. Can you provide me your catalogue?
We specialize in producing and developing all kinds of LED displays. As a reliable LED Display manufacturer and exporter in China, we supply Indoor LED displays, Outdoor LED displays, semi-outdoor LED displays. Please kindly tell me which kind of the item you prefer to and provide me more information. It will help us to give you a good price.
Our features
1. Good price
Our price is 10% lower than the market because of the introduction of full automatic production line with the characteristics of reducing the cost of labor and management.
2. Lightweight
Aluminum cabinet greatly saving fright cost and conveniently installing.
3. Stable performance
Our most basic guarantee: The aging time exceeding 24 hours. Malfunction DOT rate
Less than 0.0001. MTBF more than 1000 hours.
4. Best quality LED chip tube
The GREE, SILAN, OPTO, EPISTAR assuring high brightness and long lifespan.
5. Supporting different formats of images and videos
Flash, WAV/MIDI, Videos from TV and other equipments.
6. Quality insured by CPIC and 3-year QA.
|
ITME |
SPECIFICATION |
|

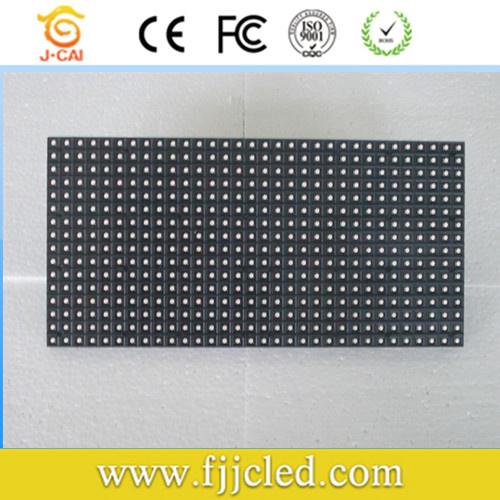

Pixel Unit |
Dot Pitch:7.62mm
Size: 244*122mm
Pixel Density:17,222Dots/m2
Two Color:1R1G
Led chip spec:DIP546
Brightness>=1200cd/m2
Module dot:(W)32dots×(H)16dots
International Protection (Front/Rear):IP65
Cabinet Weight:35kg/m2 |
|
LED Display |
Best View distance: 10~150m
Viewing angle-Horizontal : 110 degree;
Viewing angle-Vertical : 90 degree
Environment Temp:-40C~+85C
Working Temp:-20C ~+50C
Operating Humidity Range:≤90~95%
Thickness:≤12cm |
|
Power Supply |
Operating Voltage:220V±5%
Average Power:200W/m2
Max Power:500W/m2 |
|
Control System |
Host:p4-80G/512m or better
Operating system:Windows2000/ NT/XP/7
Control mode:Synchronous control
Graphic card:DVI
Media card:PCTV |
|
Main Technical Parameter |
1)Driving IC:MBI Led Driver
2)Scan mode:1/16
3)Frame frequency:≥60 frame/s
4)Refresh rate:≥300 frame/s
5)Grey scale levels/Color processing:256levels,Process 16.7M colors
6)Full white brightness: ≥1200cd/m 2
7)Brightness' adjustment mode:100 levels available
8)Video signals:PAL/NTSC
9)Video Input/Output:8/8
10)Control System:Nonlinear Edit Card+DVI Graphic card+
Control card+Optical fiber transmission (optional)
11)MTBF:≥5000 hours
12)Life-span:100,000 hours
13)Flatness:neighbor pixel≤0.5mm;module joint gap<1mm ;
14)Uniformity:pixel light intensity\module brightness uniformity
15)Power switch:Auto Switch
16)Switch power supply load:5V/40A
17)Computer display mode:800×600;1024×768
18) Network cable transition distance: 100m
Multi-mode optical fiber transition distance:500m
Mono-mode optical fiber transition distance:20km |
|
Software |
LED Regular display software(MDK) |
|
Protection |
Moisture/dust/ Resistant, electrostatic prevention, shockproof, meanwhile, against over-current, short-circuit, over-voltage and low voltage |
Jingcai (Fujian) Photoelectric Co., Ltd. Was founded in 2005, with a registered capital of 20.18 million Yuan, a workshop covering an area of 20000 square meters and independent living and production places. Our company is professional in the development and manufacture of LED display systems. Our company technology strength is among the front row in this area, with a vigorous team.
In March, 2011, our company independently researched and developed a full-color formal P16 LED display, which can completely replace the current market single color LED displays, being the perfect choice in the next line of LED display market. In June, 2011, after designing P10 optical modules, we ceremoniously rolled out P10 light module series, which can effectively enhance the efficacy by above 10% and can effectively avoid a screen phenomenon. In August, 2011, our company took the lead in Quanzhou LED industry technology innovation strategy alliance. As the President unit, our company set up "Quanzhou LED Technology Research Center", featuring the national quality supervision center. Our company has many experts and professors from Xiamen University Semiconductor Research Center, Fuzhou University and Beijing University Institute of Photoelectricity for our research center technology consultation to comprehensively promote Quanzhou LED industry. In November, 2011, relying on our strong technical research and development team, we made a new generation of international leading 3D display screens.
Through six years of unremitting efforts, our company has successively obtained such honorary titles as The State Ministry Of Small-Sized And Medium-Sized Enterprise Technology Innovation Fund Project Unit, Small-Sized And Medium-Sized Enterprise In Fujian Province Technology Innovation Fund Project Unit, ISO9001 International Quality Management System Authentication Enterprise, CCC China National Mandatory Product Certification Enterprise, CE Compulsory Product Certification Enterprise, FCC Anti-Radiation Product Authentication Enterprise, RoHS Lead-Free Environmental Protection Product Authentication Enterprise, IP65 Waterproof and Dustproof Product Authentication Enterprise, Chinese Optical Optoelectronic Industry Member Unit, National Taxpayer Service Work Outstanding Member Unit, Unit With 15 Independent Research And Development Patents Of The State Intellectual Property Office, Fujian Quality And Right Protection Service (Member) Unit, Fujian Integrity And Labor Advocate Unit, Quanzhou Industry And Commerce Credit Good Enterprise, Quanzhou Creditable Unit, Quanzhou LED Technology Research Center and Quanzhou LED Industry Technology Innovation Strategy Alliance Chairman Unit.
Our company always implements our development target and insists on the tenet of "customers are the growing power source". Our company has a perfect after-sales service system, truly realizing that customers are the centers of the market marketing model.
Through our efforts, our products have been sold well in Europe, North America, Australia, the Middle East and Southeast Asia. Our company has set up stable sales agents in the corresponding areas. Our company sincerely hope to cooperate with LED display system talents and dealers for common development and for the development of LED display systems.
